Instrument Cluster Finish Panel Bezel: Removal

  1. Adjust steering column to fully extended and lowered position.
  2. Remove battery cover and disconnect ground cable from battery terminal. Refer to BATTERY GROUND CABLE .
  3. Remove veneer from instrument panel. Refer to INSTRUMENT CLUSTER FINISH PANEL  .
  4. Using a small screwdriver, depress fog lamp switch upper retaining tang and release switch from gauge surround.

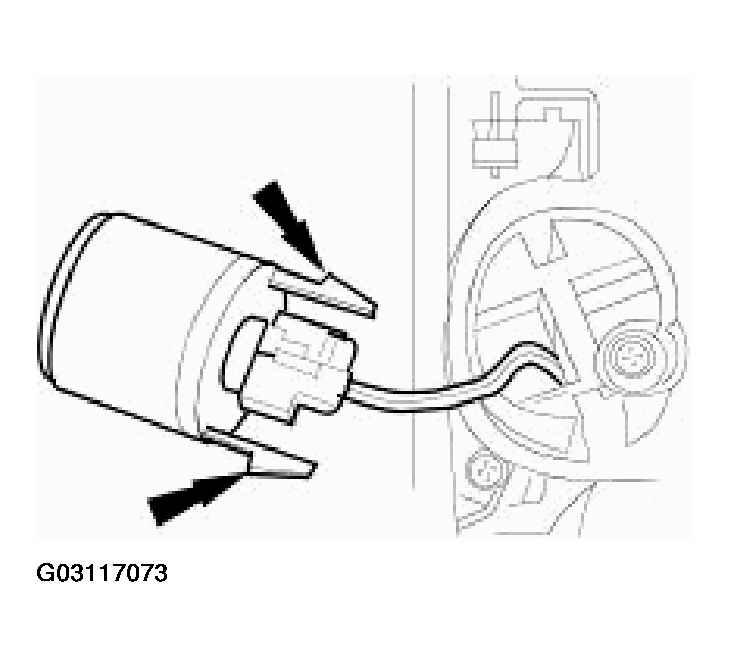

    Fig 1: Releasing Fog Lamp Switch From Gauge Surround
    G03117073
  5. Position fog lamp switch for access, disconnect harness multiplug and remove switch.

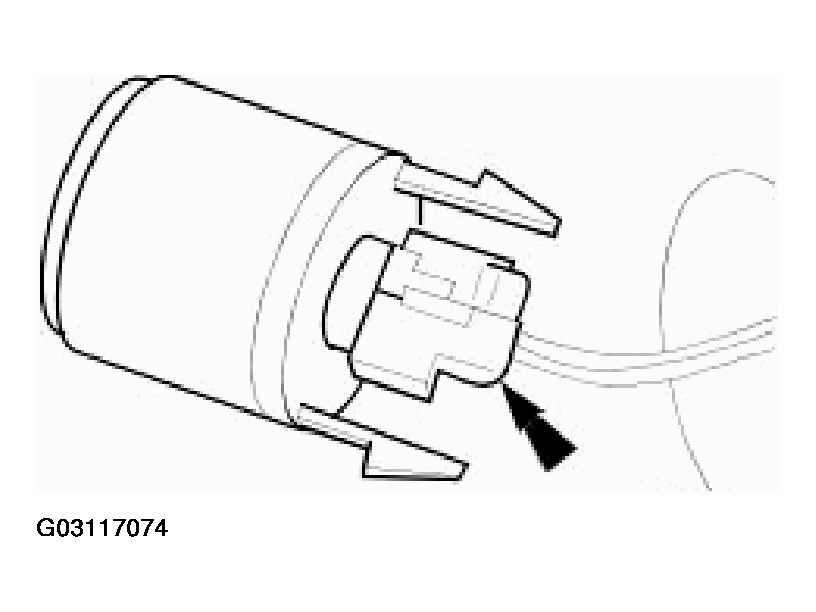

    Fig 2: Removing Fog Lamp Switch
    G03117074
  6. Using a small screwdriver, depress trip keyboard upper retaining tang and release keyboard from gauge surround.

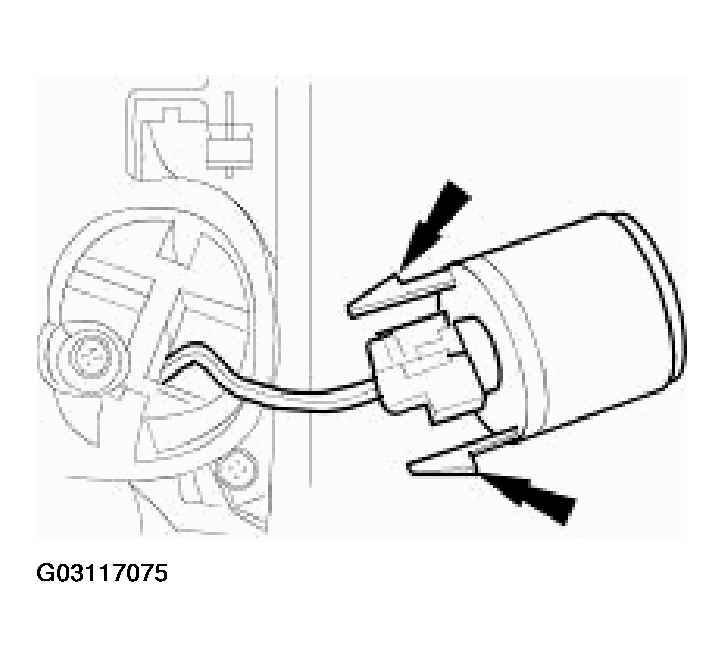

    Fig 3: Releasing Keyboard From Surround
    G03117075
  7. Position trip keyboard for access and disconnect harness multiplug.

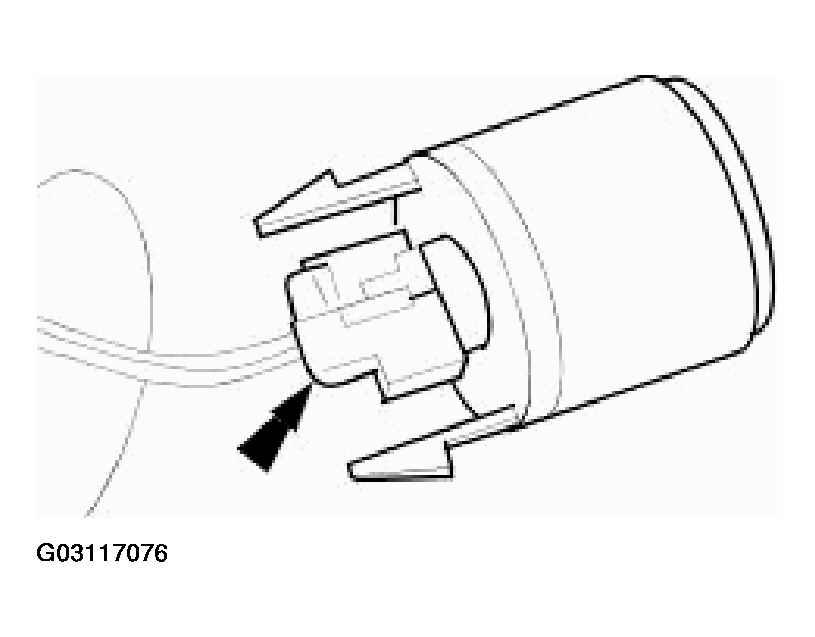

    Fig 4: Removing Keyboard
    G03117076
  8. Slacken and remove four screws securing major gauge module/surround to fascia and withdraw surround.

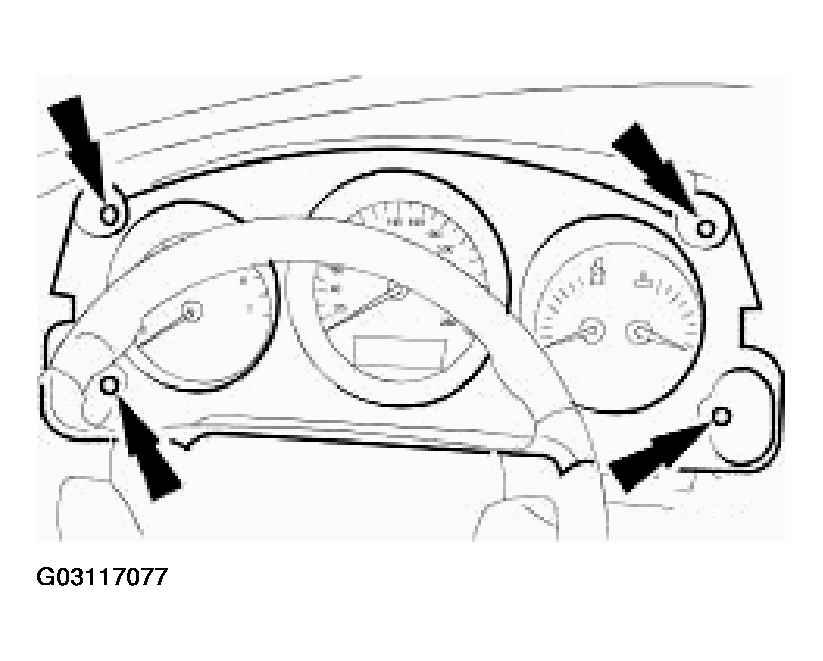

    Fig 5: Removing Major Gauge Module/Surround
    G03117077
