Glove Compartment: Removal

  1. Open glovebox.
  2. Supporting the glovebox, slacken and remove the four top securing screws.

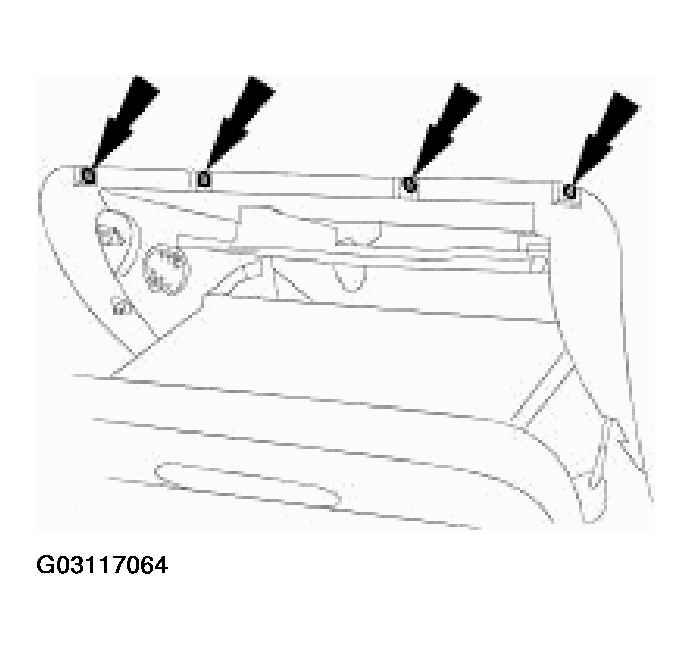

    Fig 1: Removing Screws Securing Top Of Glovebox
    G03117064
  3. Slacken and remove the two glovebox lower outer securing screws.
    Fig 2: Removing Glovebox Lower Outer Securing Screws
    G03117065
  4. Withdraw glovebox for access and disconnect the two illumination harness connectors.

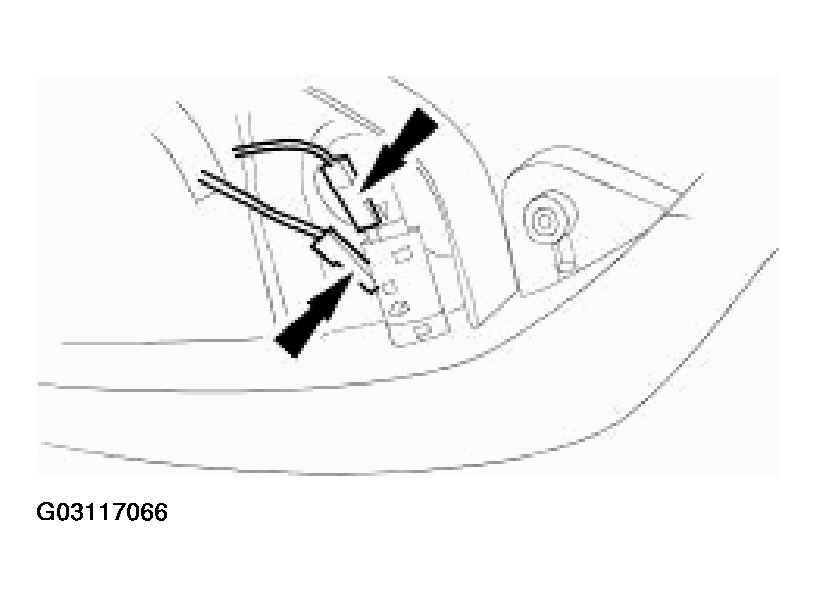

    Fig 3: Disconnecting Glovebox Illumination Harness Connectors
    G03117066
  5. Remove glovebox from vehicle.
