Glove Compartment Liner: Removal

  1. Remove glovebox. Refer to GLOVE COMPARTMENT  .
  2. Remove glovebox lid. Refer to GLOVE COMPARTMENT LID  .
  3. Remove glovebox damper. Refer to GLOVE COMPARTMENT LID DAMPER  .
  4. Release damper cord guide retaining tangs and remove guide from bracket.

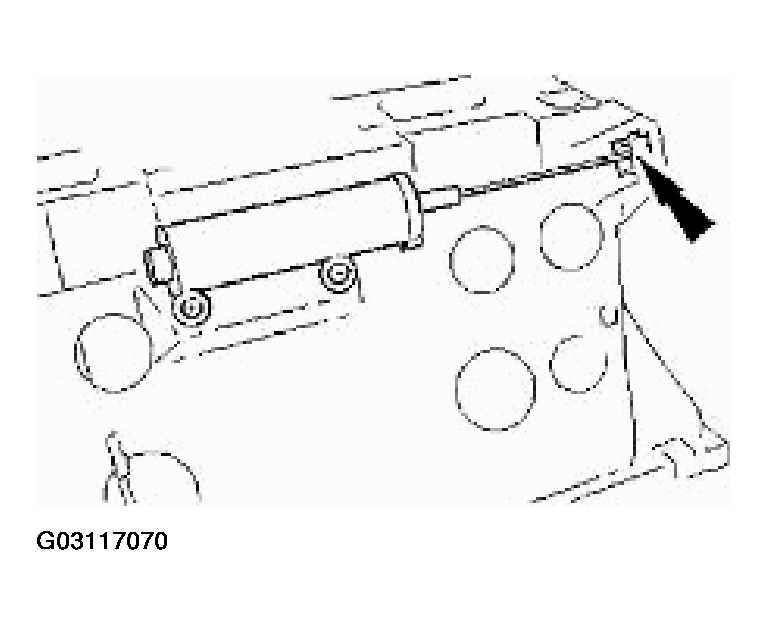

    Fig 1: Releasing Damper Cord Guide Retaining Tangs
    G03117070
  5. Position liner for access and carefully remove switch assembly from housing.

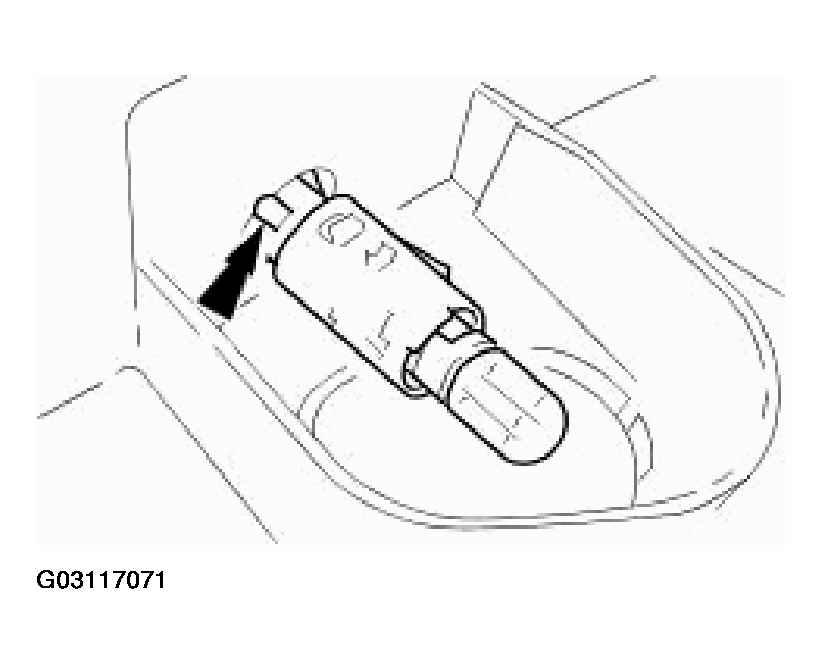

    Fig 2: Removing Switch Assembly From Housing
    G03117071
