Glove Compartment Lid: Removal

  1. Remove glovebox. Refer to GLOVE COMPARTMENT  .
  2. Open glovebox lid and lift barbed hook to release damper cord loop from lid.

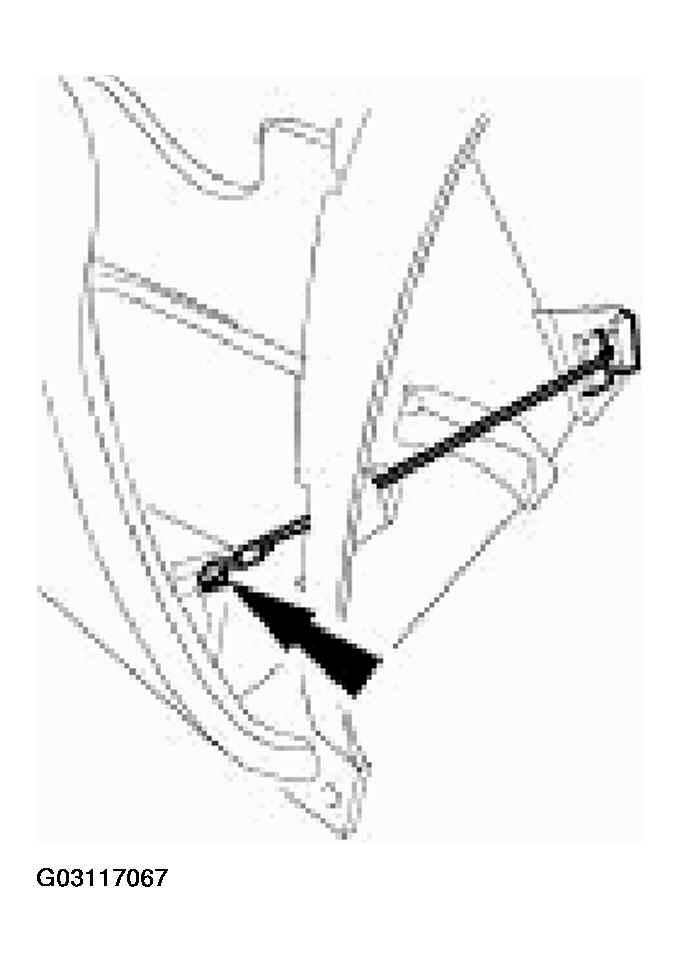

    Fig 1: Releasing Damper Cord Loop From Lid
    G03117067
  3. Slacken and remove the two lid hinge securing nuts.
  4. Remove glovebox lid.
