Floor Console Stowage Compartment: Removal

Open console glove box lid.
Slacken and remove the glove box lid stay securing screw and remove lid stay.

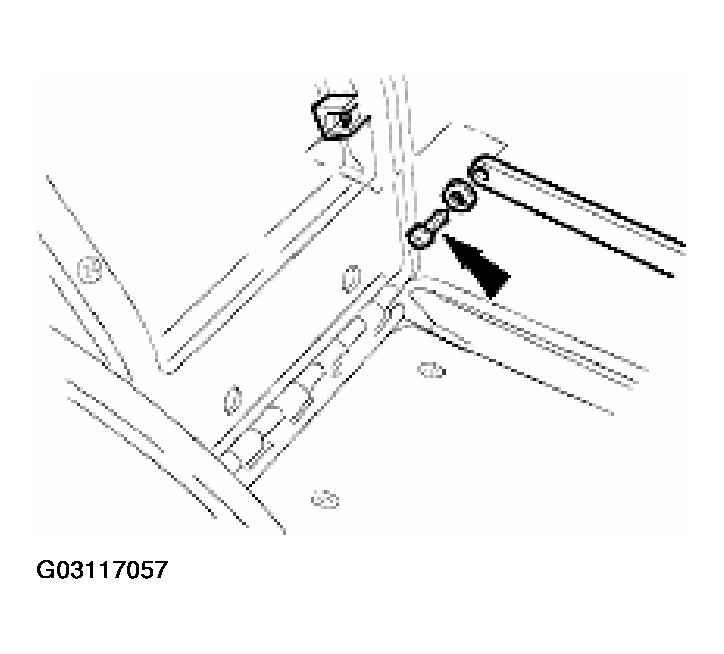

Fig 1: Removing Glove Box Lid Stay
Slacken and remove glove box latch securing screws and remove latch assembly.

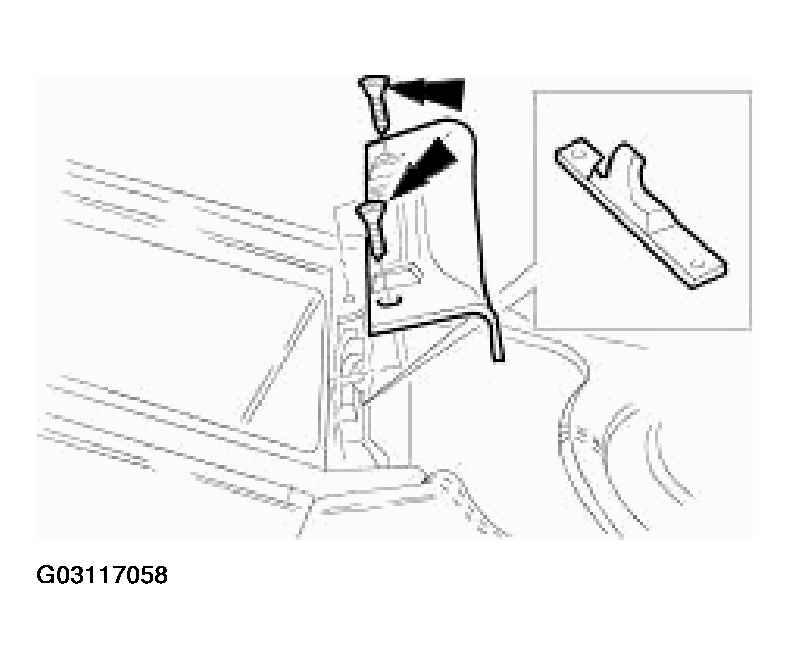

Fig 2: Removing Glove Box Latch Assembly
Slacken and remove glovebox liner rear securing screws.

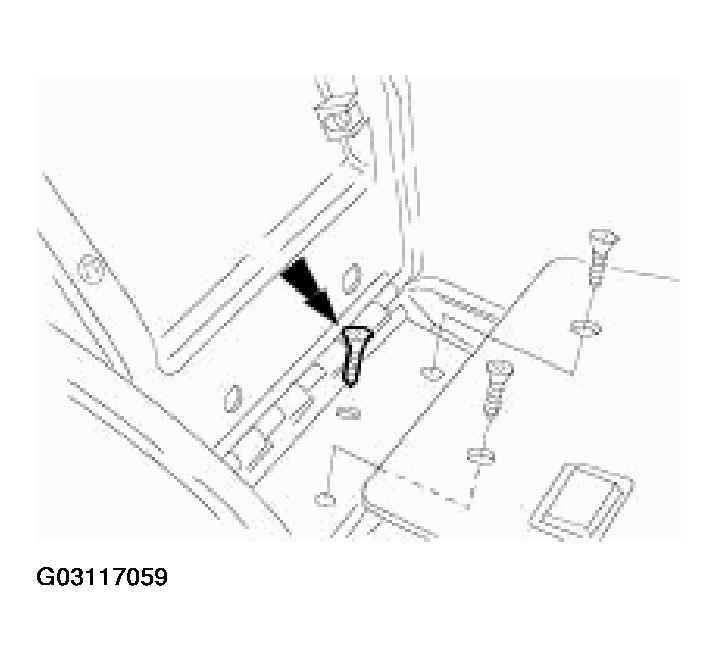

Fig 3: Removing Glovebox Liner Rear Securing Screws
Remove glovebox liner from vehicle.
