Floor Console Stowage Compartment Lid: Removal

Open glovebox lid.

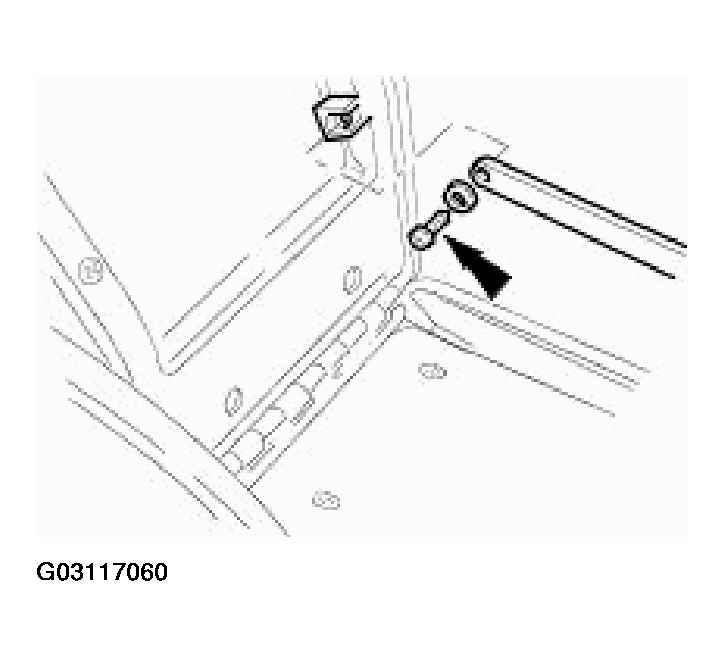

Slacken and remove lid stay securing screw and remove stay from lid.

Fig 1: Removing Lid Stay From Lid

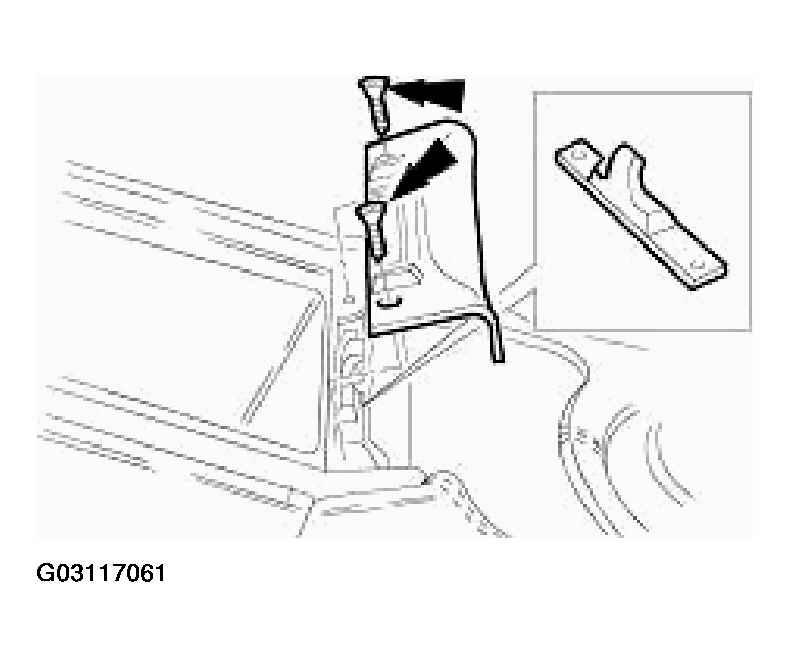

Slacken and remove glovebox latch securing screws and remove latch from glovebox.

Fig 2: Removing Glovebox Latch Assembly

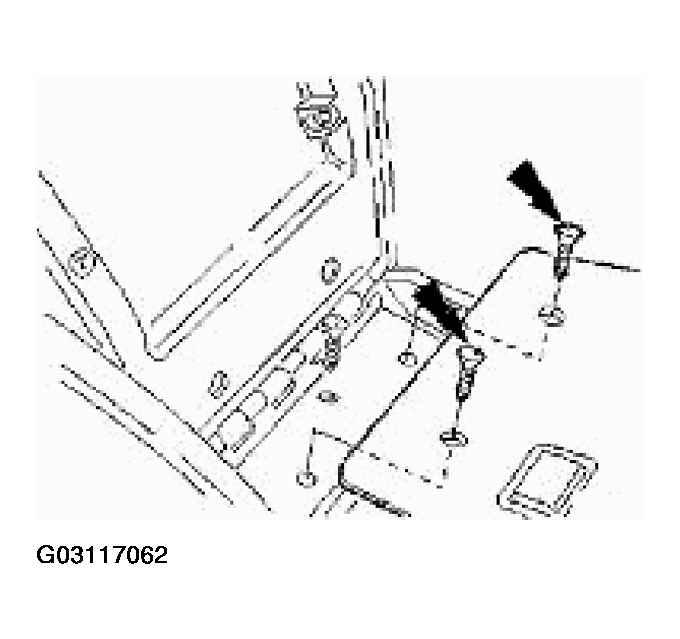

Slacken and remove glovebox liner rear securing screws and remove liner for access.

Fig 3: Removing Glovebox Liner

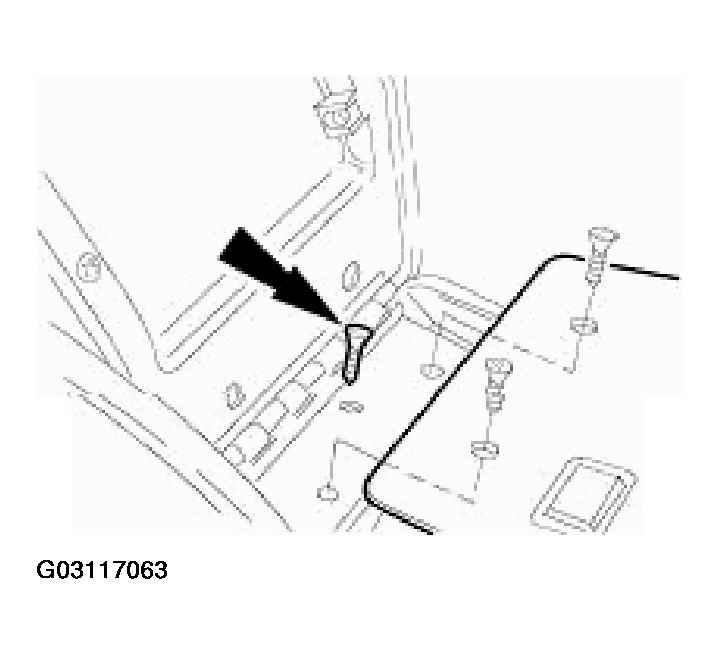

Slacken and remove remaining glovebox hinge securing screw.

Fig 4: Removing Glovebox Hinge Securing Screw
Slacken and remove screws securing hinge to lid and remove hinge.
