Floor Console Finish Panel: Removal

  1. Apply handbrake and turn ignition key to II.
  2. Depress brake pedal, move gear selector to position N and turn ignition key to O.
  3. Remove battery cover and disconnect ground cable from battery terminal. Refer to BATTERY GROUND CABLE .
  4. Remove 'J 'gate finisher. Refer to SELECTOR LEVER GATE FINISH PANEL  .
  5. Slacken and remove the two nuts and two screws securing the retaining panel.

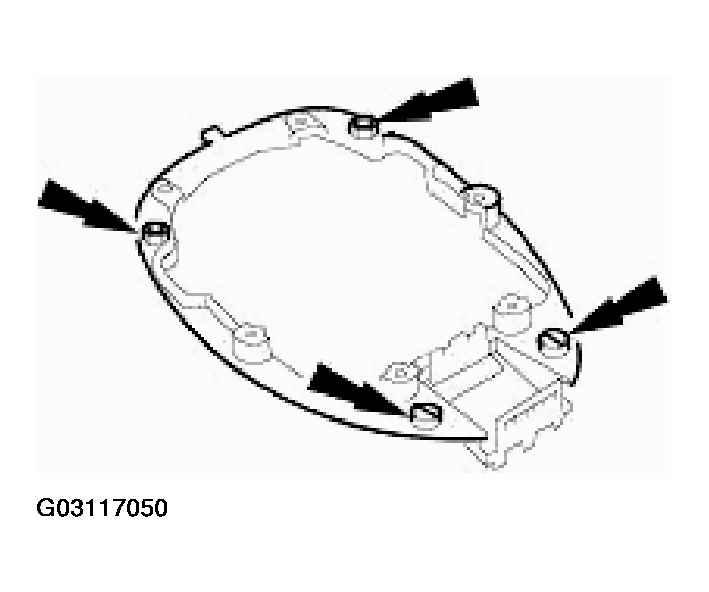

    Fig 1: Removing Nuts And Screws Securing Retaining Panel
    G03117050
  6. Position retaining panel for access, disconnect SPORT mode and cruise control ON/OFF switch multiplugs and remove retaining panel complete with switches.

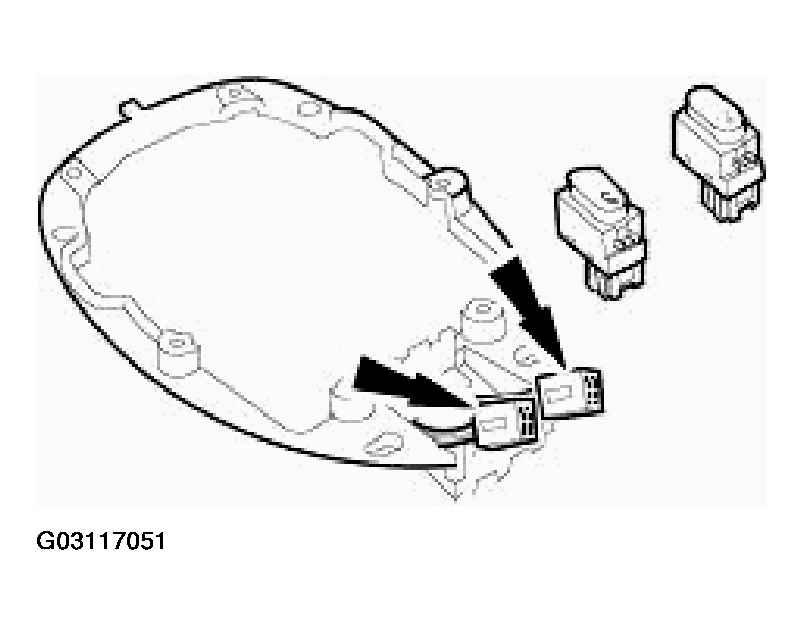

    Fig 2: Removing Retaining Panel With Switches
    G03117051
  7. Remove and discard bushes from retaining plate.

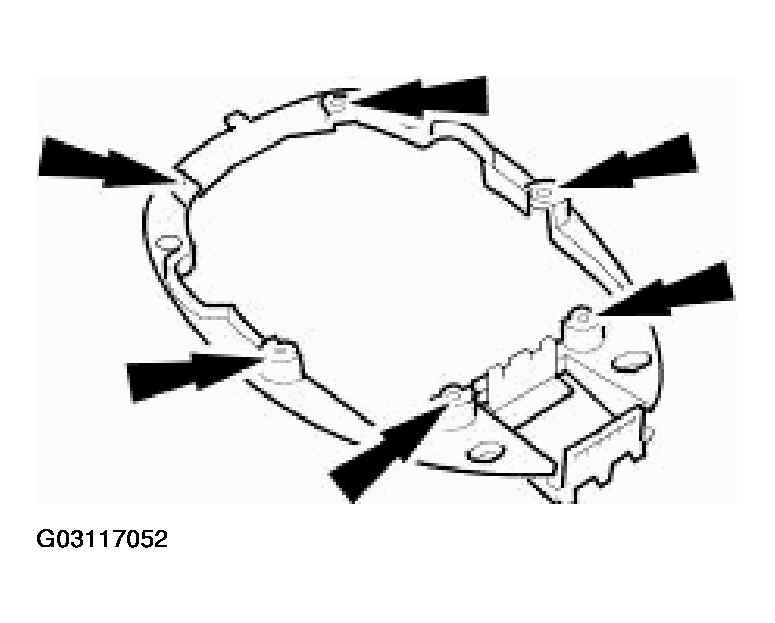

    Fig 3: Removing Bushes From Retaining Plate
    G03117052
  8. Carefully withdraw veneer panel, releasing front locating tongue from upper slot in console.

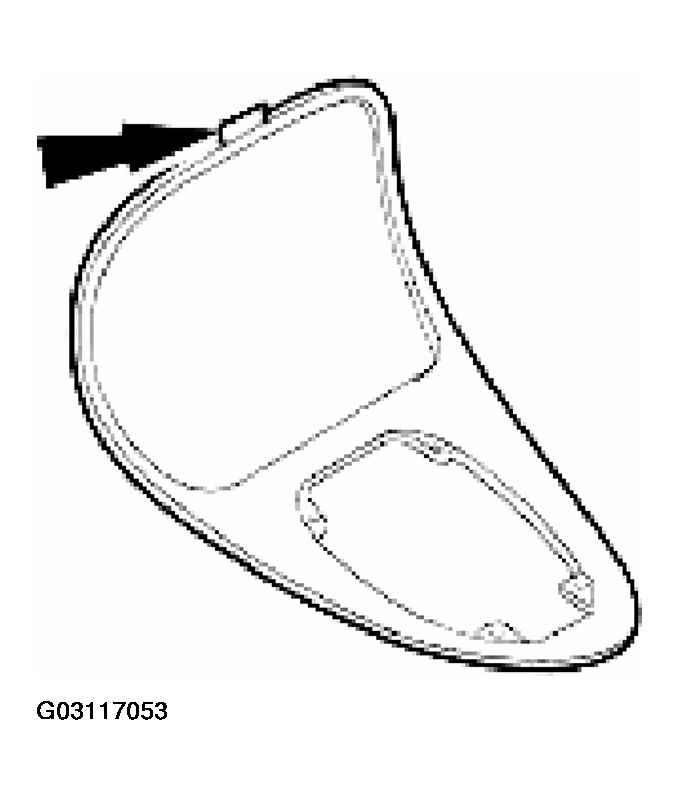

    Fig 4: Releasing Front Locating Tongue From Upper Slot In Console
    G03117053
