Floor Console Finish Panel Bracket: Removal

  1. Remove 'J' gate finisher. Refer to SELECTOR LEVER GATE FINISH PANEL  .
  2. Slacken and remove the two front nuts and two rear screws securing the retaining panel.

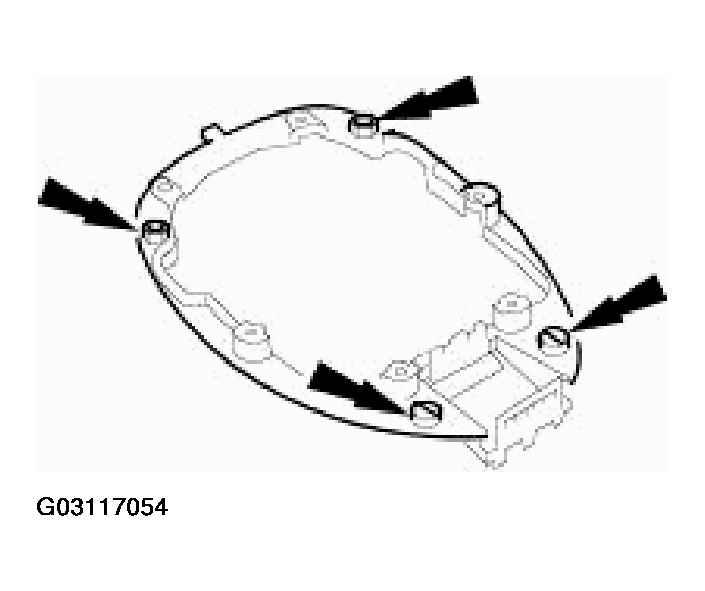

    Fig 1: Removing Front Nuts And Rear Screws Securing Retaining Panel
    G03117054
  3. Position retaining panel for access, disconnect SPORT mode and cruise control ON/OFF switch multiplugs and remove retaining panel complete with switches.

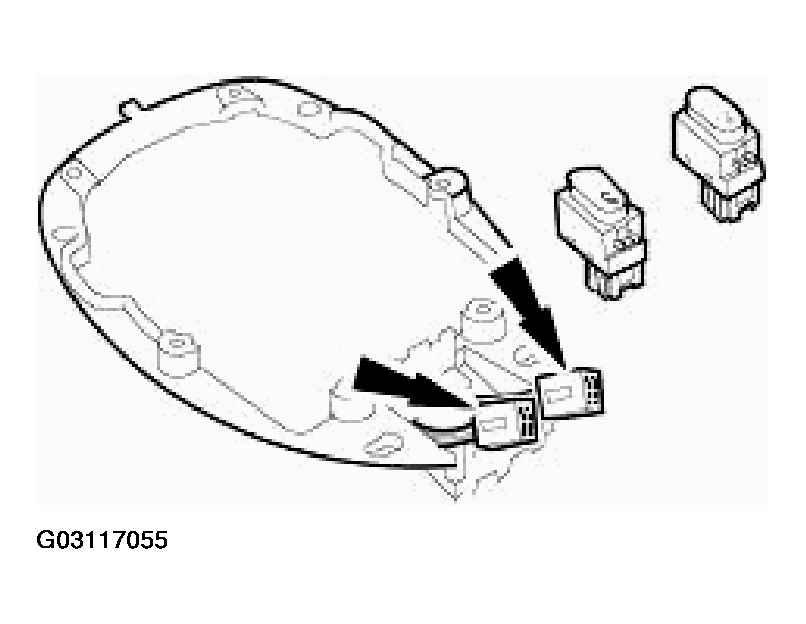

    Fig 2: Removing Retaining Panel With Switches
    G03117055
  4. Remove switches from retaining panel.
  5. Remove and discard bushes from retaining panel.

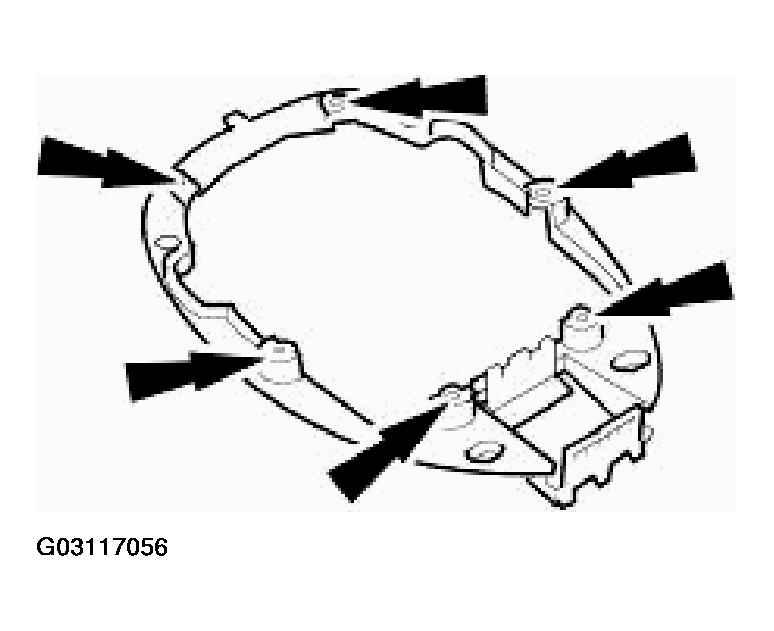

    Fig 3: Removing Bushes From Retaining Panel
    G03117056
