Floor Console Extension: Removal

Using a thin plastic lever at the edge and exercising care to avoid damage to surface, remove veneer panel from rear extension.

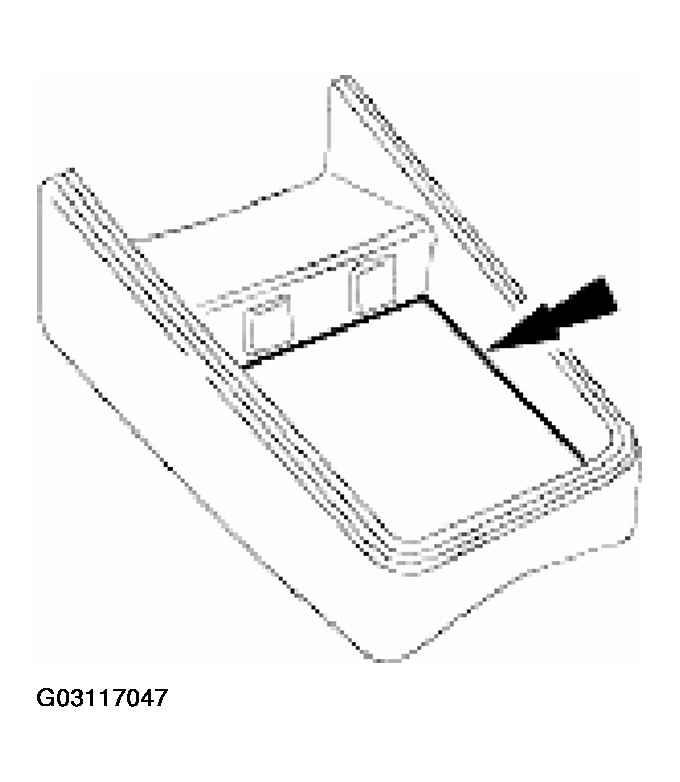

Fig 1: Removing Veneer Panel From Rear Extension
Slacken and remove the two rear extension securing screws.

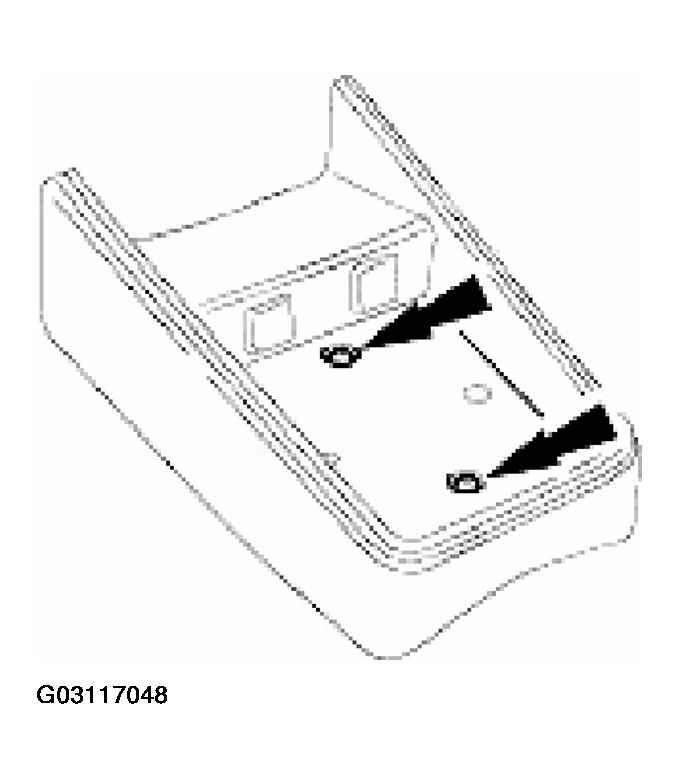

Fig 2: Removing Rear Extension Securing Screws
Remove rear seat heater switches.
- Position rear extension for access and slacken and remove screw retaining switches.
- Mark both harness multiplugs to ensure correct reconnection and disconnect multiplugs.

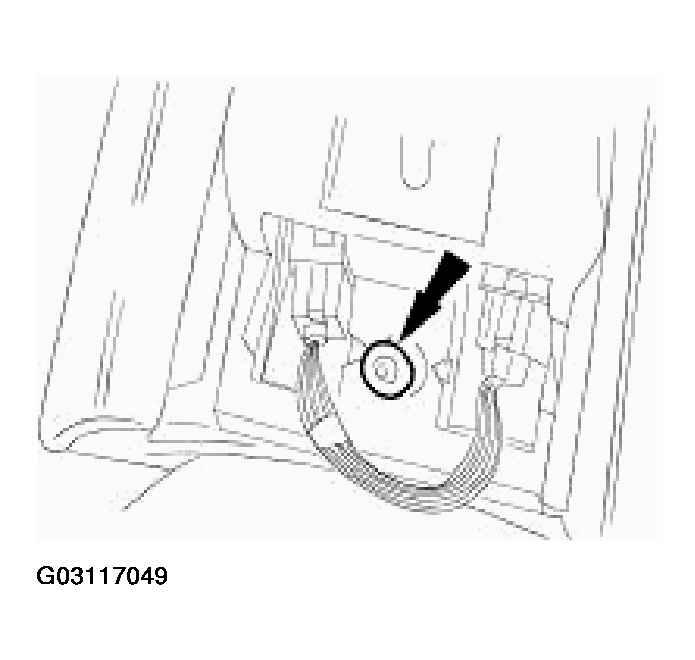

Fig 3: Removing Rear Seat Heater Switches
Remove heater switches.
