Coin Stowage Compartment: Removal

  1. Slacken and remove screw securing driver stowage compartment to fascia.

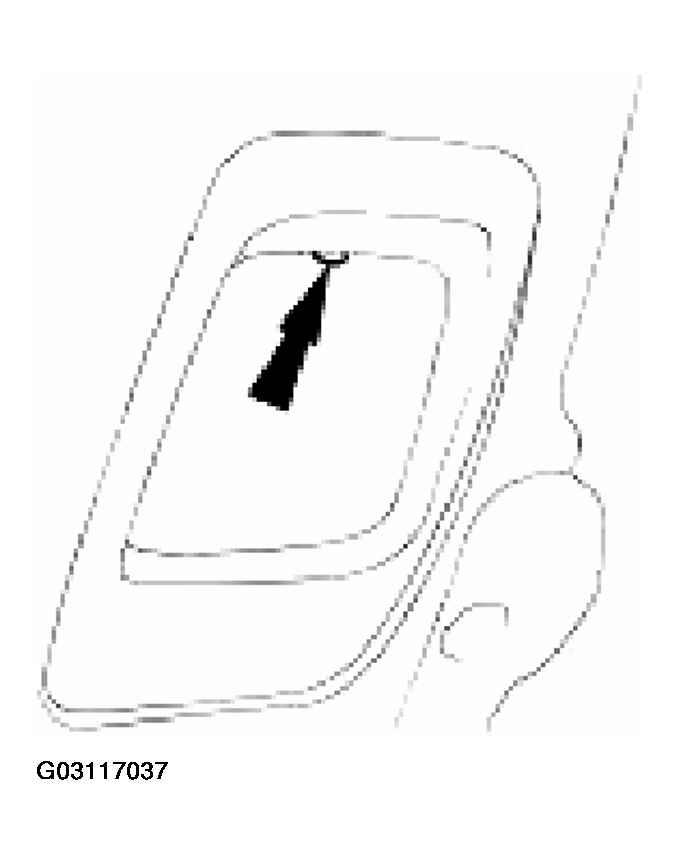

    Fig 1: Removing Screw Securing Driver Stowage Compartment To Fascia
    G03117037
  2. Withdraw stowage compartment from fascia and remove from vehicle.

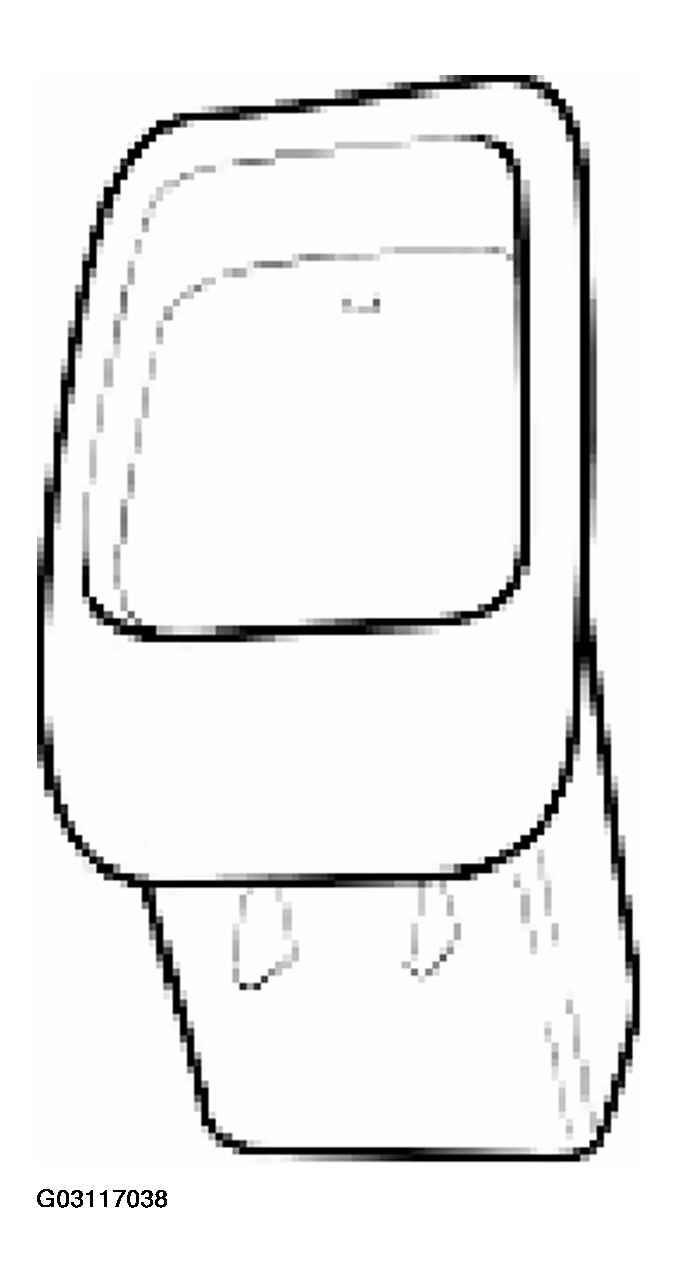

    Fig 2: Removing Stowage Compartment From Fascia
    G03117038
