Climate Control Assembly Housing: Removal

  1. Move 'J' gate selector to position 'D.'
  2. Remove battery cover and disconnect ground cable from battery terminal. Refer to BATTERY GROUND CABLE .
  3. Remove 'J' gate finisher. Refer to SELECTOR LEVER GATE FINISH PANEL  .
  4. Remove 'J' gate finisher retaining plate. Refer to FLOOR CONSOLE FINISH PANEL BRACKET  .
  5. Remove center console veneer panel. Refer to FLOOR CONSOLE FINISH PANEL  .
  6. Remove radio and console. Refer to AUDIO UNIT HOUSING  .
  7. Disconnect air conditioning panel flying lead multiplug (blue) in LH side of transmission tunnel.

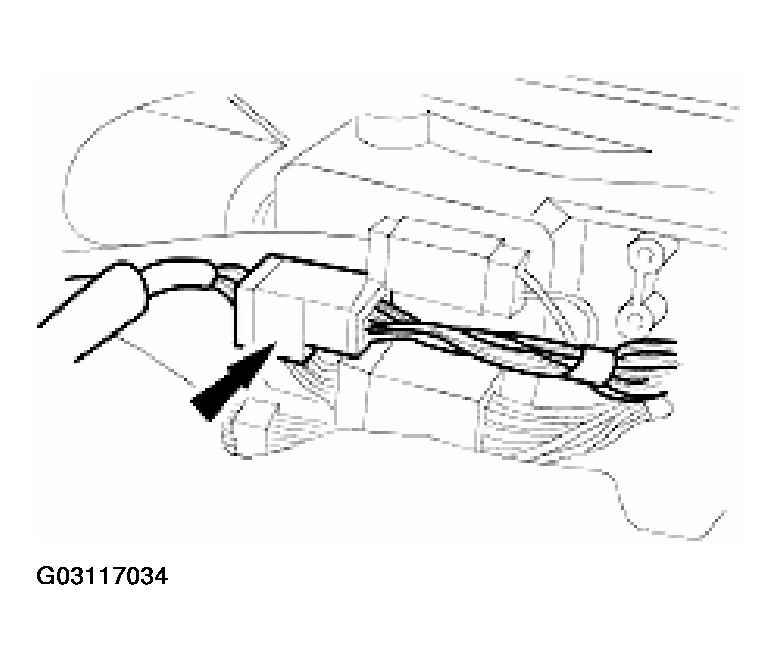

    Fig 1: Disconnecting Air Conditioning Panel Flying Lead Multiplug
    G03117034
  8. Slacken and remove remaining screw securing air conditioning panel console to body.

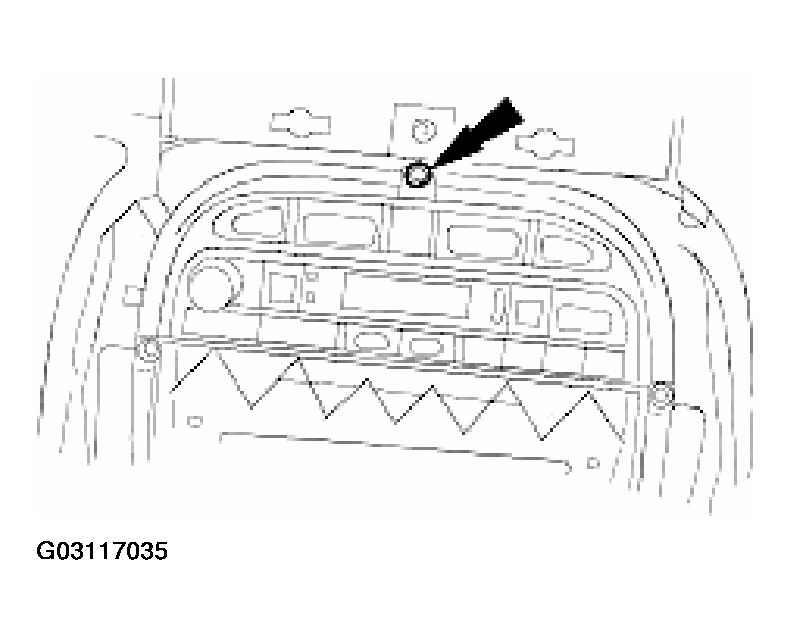

    Fig 2: Removing Screw Securing Air Conditioning Panel Console To Body
    G03117035
  9. Withdraw air conditioning panel and console for access and disconnect the harness multiplug behind panel.

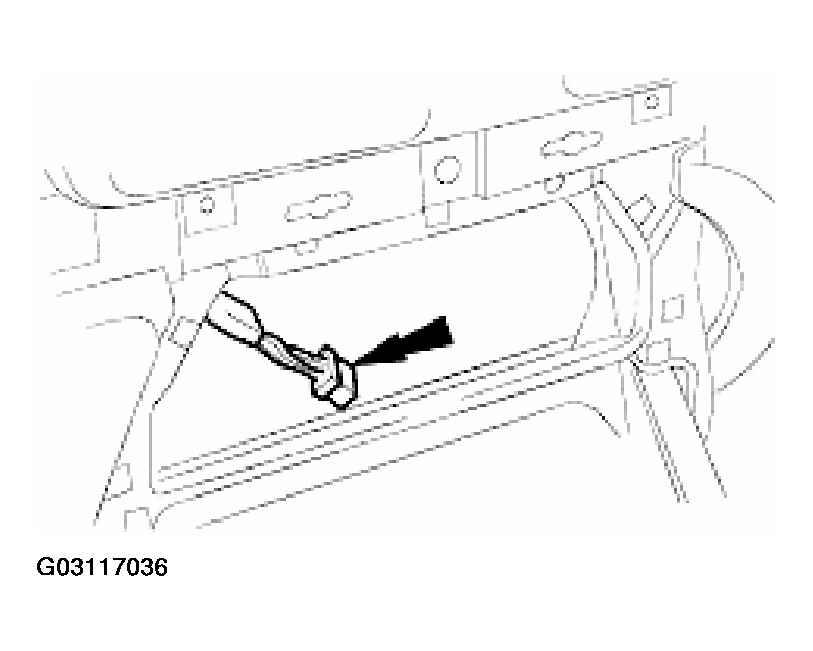

    Fig 3: Disconnecting Harness Multiplug Behind Panel
    G03117036
  10. Remove air conditioning panel from vehicle.
  11. Remove panel from console.
