Audio Unit Housing: Removal
- Remove center console veneer panel. Refer to FLOOR CONSOLE .
- Withdraw radio from console for access, disconnect multiplugs and aerial lead and remove radio from vehicle.
- Remove console for access.

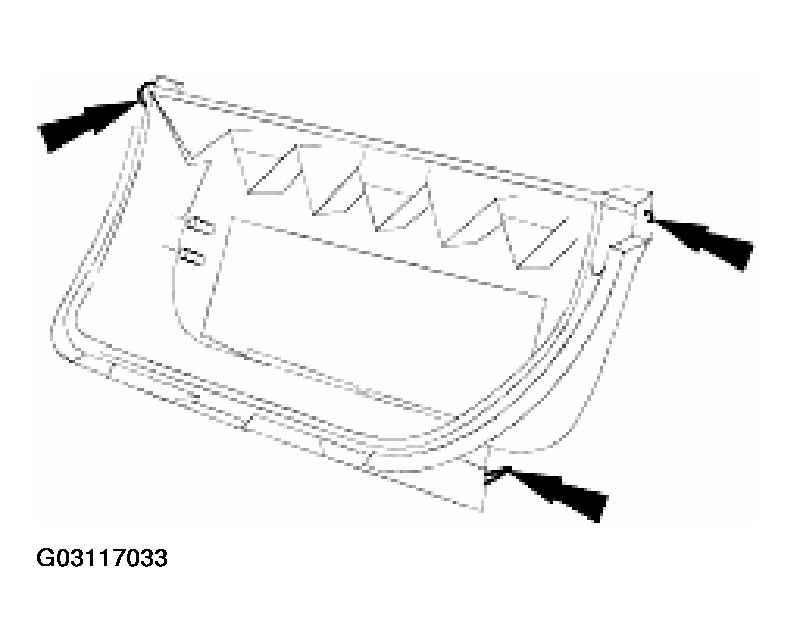

- Slacken and remove two screws securing radio console to fascia, release two dowels and withdraw console for access.
- Release clip retaining air conditioning panel harness.
- Tilt bottom of radio console upwards and remove console from vehicle.
