Instrument Cluster Gauges

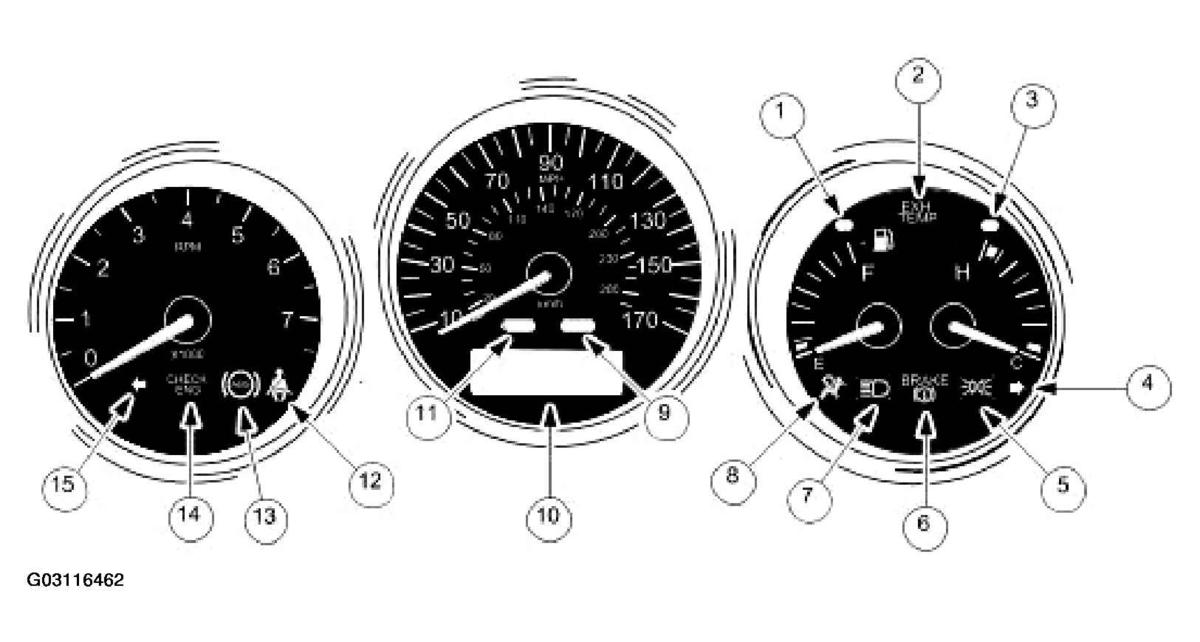

INSTRUMENT CLUSTER GAUGES DESCRIPTION
| Item | Description | ||
|---|---|---|---|
| 1 | Low Fuel Level | ||
| 2 | Exhaust System Temperature (1) | ||
| 3 | Engine Coolant High Temperature | ||
| 4 | Direction Indicator Right Hand | ||
| 5 | Side / Parking Lamps | ||
| 6 | Handbrake ON / Low Brake Fluid Level | ||
| 7 | Main Beam | ||
| 8 | Airbag / Airbag System Fault | ||
| 9 | High Priority Text Message Displayed | ||
| 10 | Message Centre (Text Messages) | ||
| 11 | Low Priority Text Message Displayed | ||
| 12 | Seat Belt Not Fastened (Driver's) | ||
| 13 | ABS Integrity | ||
| 14 | EMS Fault | ||
| 15 | Direction Indicator Left Hand | ||
|
|||
Although the gauges look like conventional analogue gauges, each pointer is driven by a stepper motor to provide more accurate readings.
Refer to INFORMATION AND MESSAGE CENTER for details of the Driver Information / Message Center.
