Instrument Panel Dimmer Switch (86.65.07): Removal
- Move driver seat fully rearward.
- Disconnect the battery ground lead. Refer to BATTERY GROUND CABLE .
- Displace lower cowl for access; refer to STEERING COLUMN LOWER SHROUD .
- Remove rheostat switch from cowl.

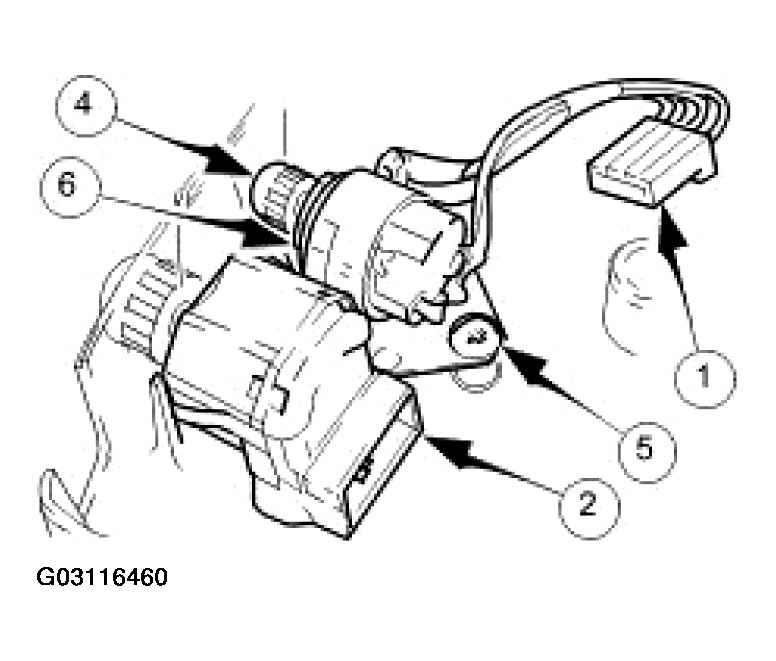

- Disconnect dimmer module to rheostat switch connector. (1)
- Disconnect column tilt switch connector. (2)
- Remove lower cowl.
- Pull adjusting knob from switch. (4)
- Remove screw. (5)
- Remove switch. (6)
