Brake Fluid Reservoir: Removal

CAUTION: Replacement of nuts and bolts: Various thread-locking devices are used on nuts and bolts throughout the vehicle. These devices restrict the number of times a nut or bolt can be used.
CAUTION: Remove brake fluid spillage immediately from paint work, with clean water.
  1. Position vehicle on a four-post lift.
  2. Open engine compartment and fit paint work protection covers to fenders.
  3. Disconnect battery ground cable (IMPORTANT, see BATTERY GROUND CABLE for further information).
  4. Remove windshield wiper arm and blade assembly for access.
  5. Remove plenum cover for access. Refer to COWL PANEL GRILLE .
  6. Remove pedal housing, brake booster and master cylinder assembly. Refer to BRAKE PEDAL AND BRACKET, BRAKE BOOSTER AND BRAKE MASTER CYLINDER .
  7. Remove reservoir filler cap and empty residual brake fluid into a container. Refit cap.
  8. Remove fluid reservoir from master cylinder.

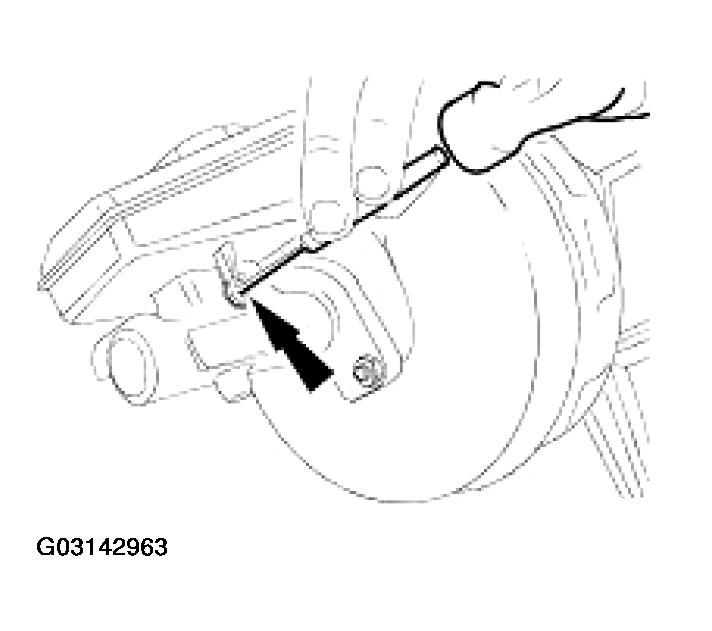

    • Remove locating pin.
    • Pull reservoir from master cylinder.
      Fig 1: Removing Locating Pin & Fluid Reservoir
      G03142963

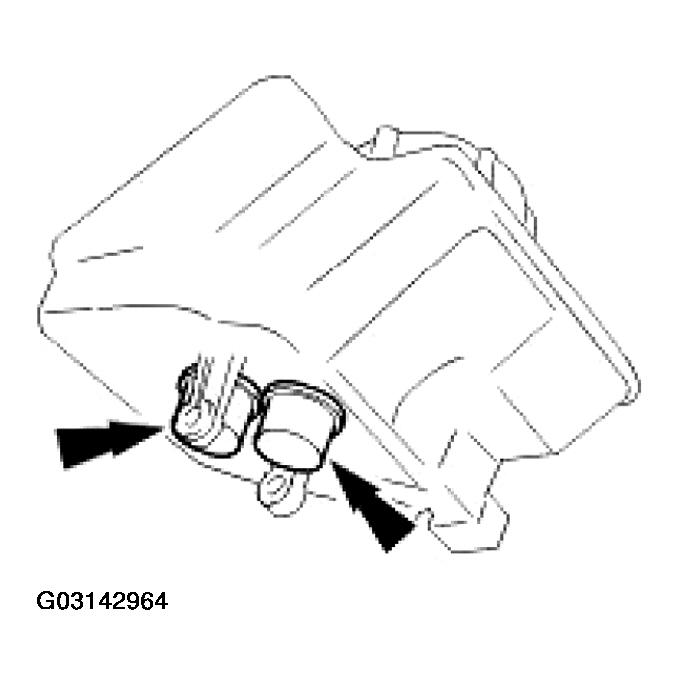

  9. Install plugs into fluid reservoir ports.
    Fig 2: Installing Plugs Into Fluid Reservoir Ports
    G03142964

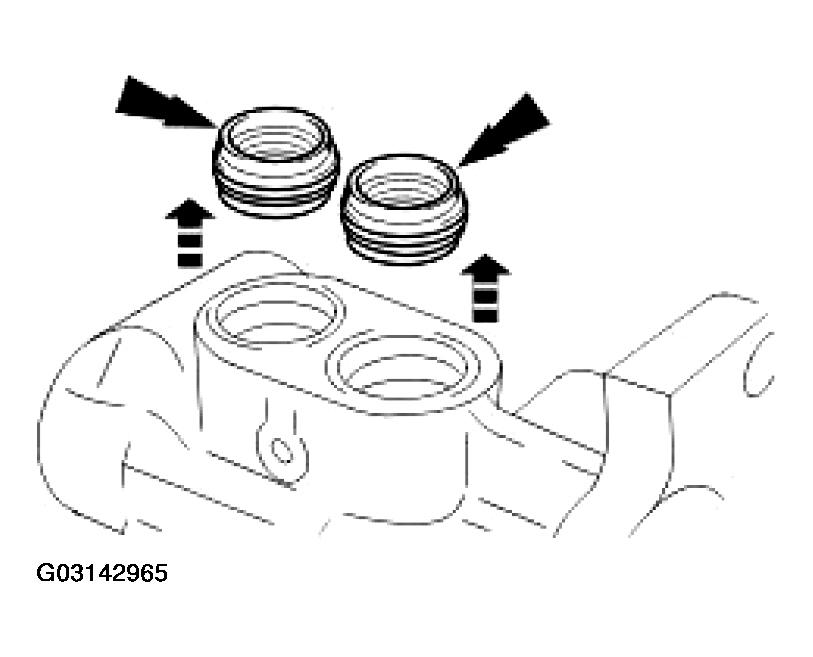

  10. Remove and discard seals from master cylinder.
    Fig 3: Removing Seals From Master Cylinder
    G03142965

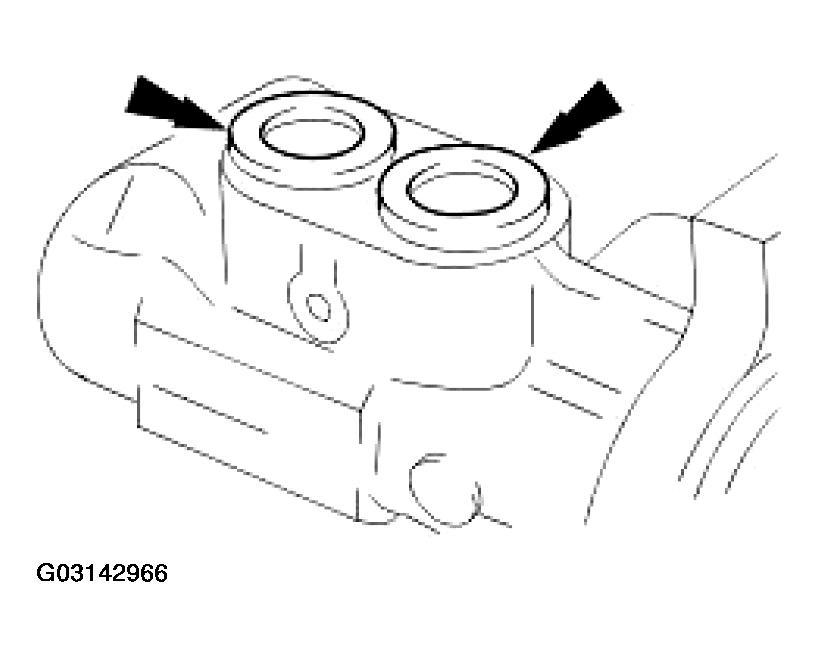

  11. Install plugs into master cylinder ports.
    Fig 4: Installing Plugs Into Master Cylinder Ports
    G03142966
  12. Clean components and mating surfaces.
