Brake Master Cylinder: Installation

  1. Install seals into master cylinder.
    • Remove plugs.
    • Lubricate seals with clean brake fluid.
    • Install seals.

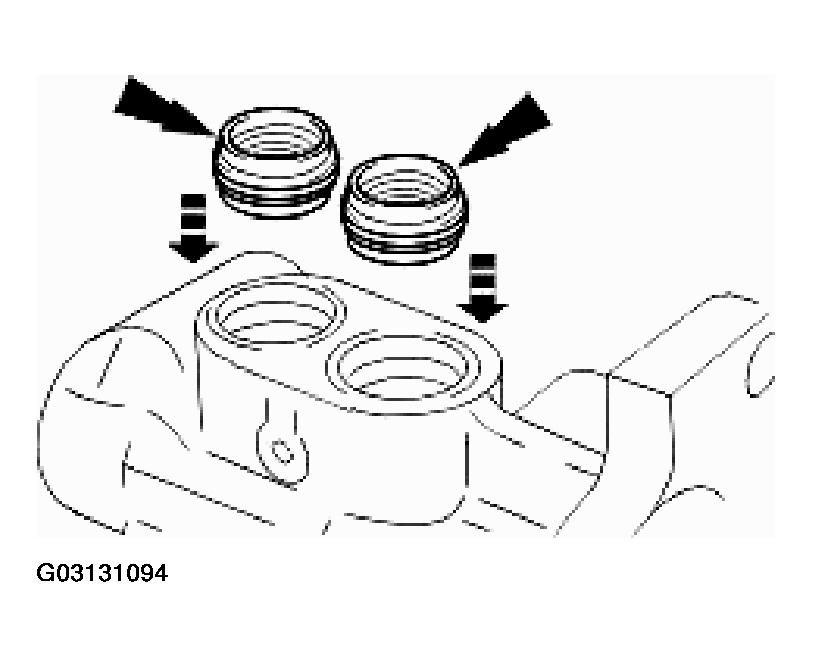

    Fig 1: Installing Seals Into Master Cylinder
    G03131094
  2. Install fluid reservoir to master cylinder.
    • Remove plugs from reservoir
    • Install reservoir, making sure reservoir is fully seated.
    • Install locating pin.

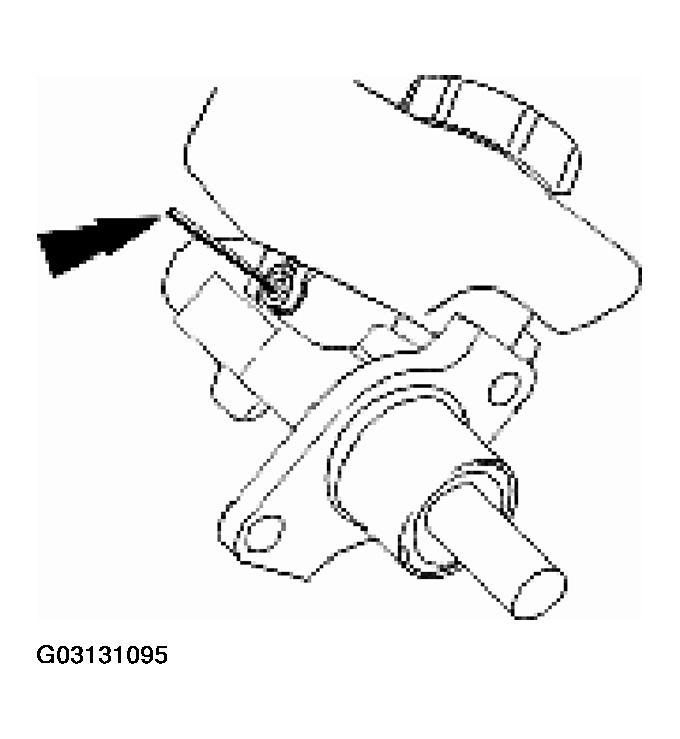

    Fig 2: Installing Fluid Reservoir To Master Cylinder
    G03131095
  3. Install master cylinder to brake booster.
    • Install seal.
    • Install master cylinder, make sure master cylinder rod locates brake booster rod.

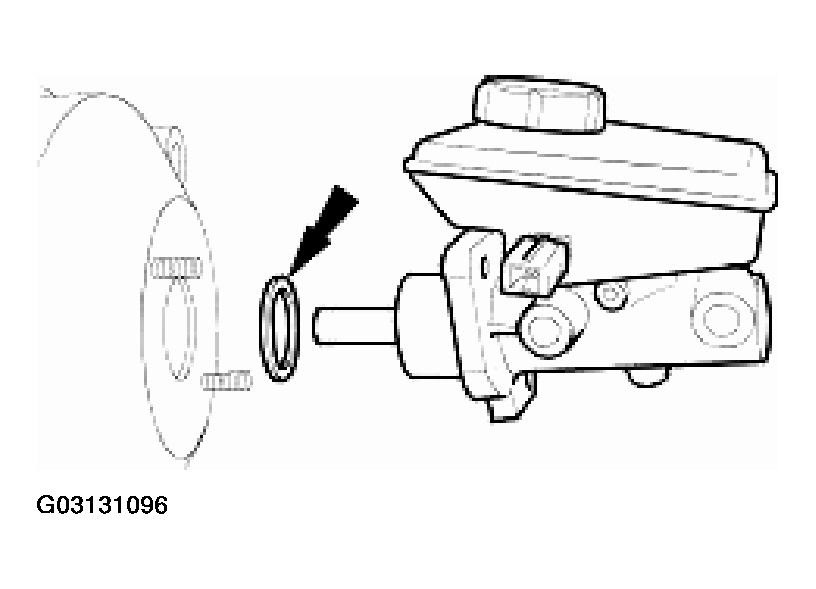

    Fig 3: Installing Master Cylinder To Brake Booster
    G03131096
  4. Install and tighten nuts to 21-29 Nm.

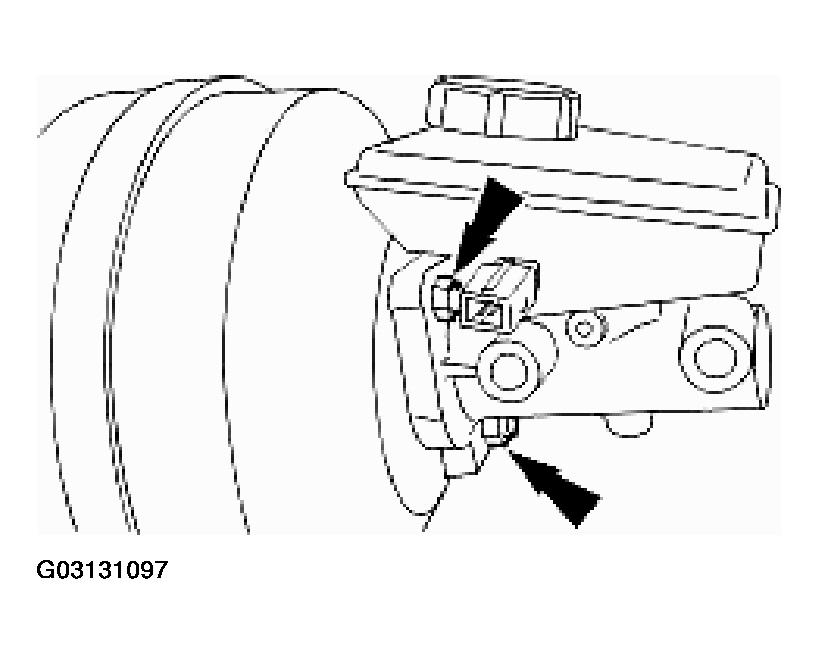

    Fig 4: Installing/Tighten Master Cylinder To Brake Booster
    G03131097
  5. Install pedal housing, brake booster and master cylinder assembly. Refer to BRAKE PEDAL AND BRACKET, BRAKE BOOSTER AND BRAKE MASTER CYLINDER  .
  6. Install engine compartment rear cover. Refer to ENGINE COVER .
  7. Connect battery ground cable (IMPORTANT, see BATTERY CONNECT for further information).
  8. Bleed brake system. Refer to BLEEDING BRAKE SYSTEM .
  9. Remove paint-work protection covers and close engine compartment.
