"A" Frame (1998): Removal

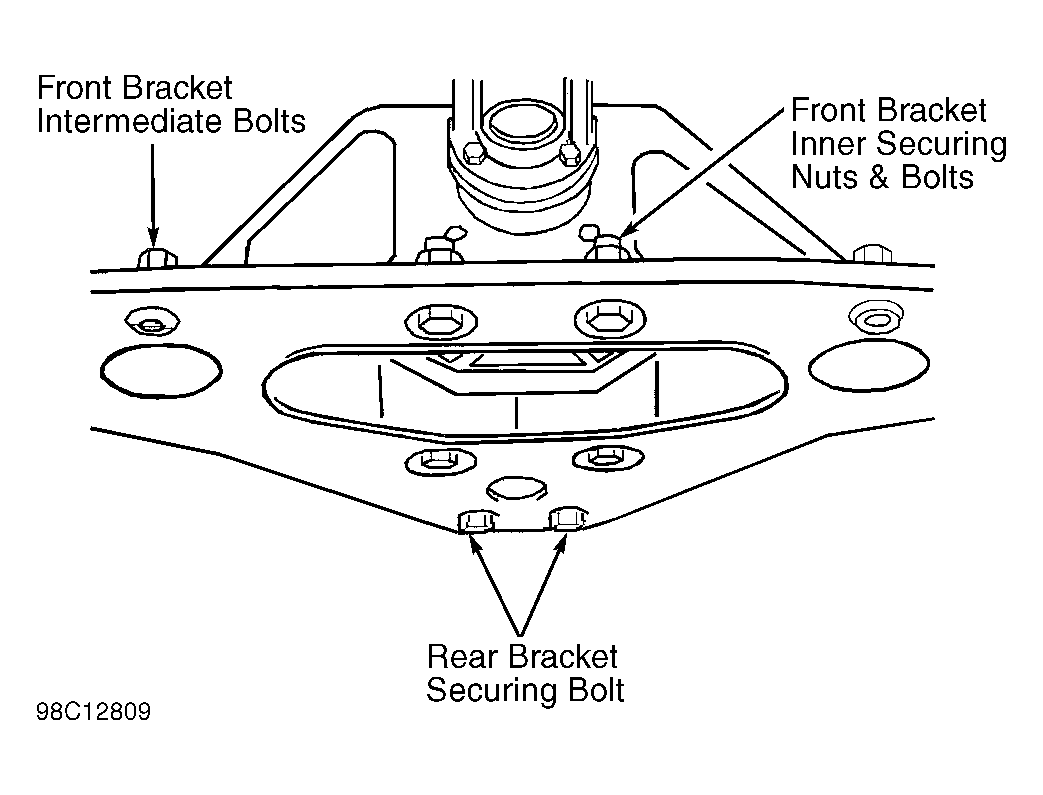

- Raise vehicle and support with stands. Remove "A" frame to final drive unit rear bracket securing bolts and front bracket inner securing nuts and bolts. See Fig 1.

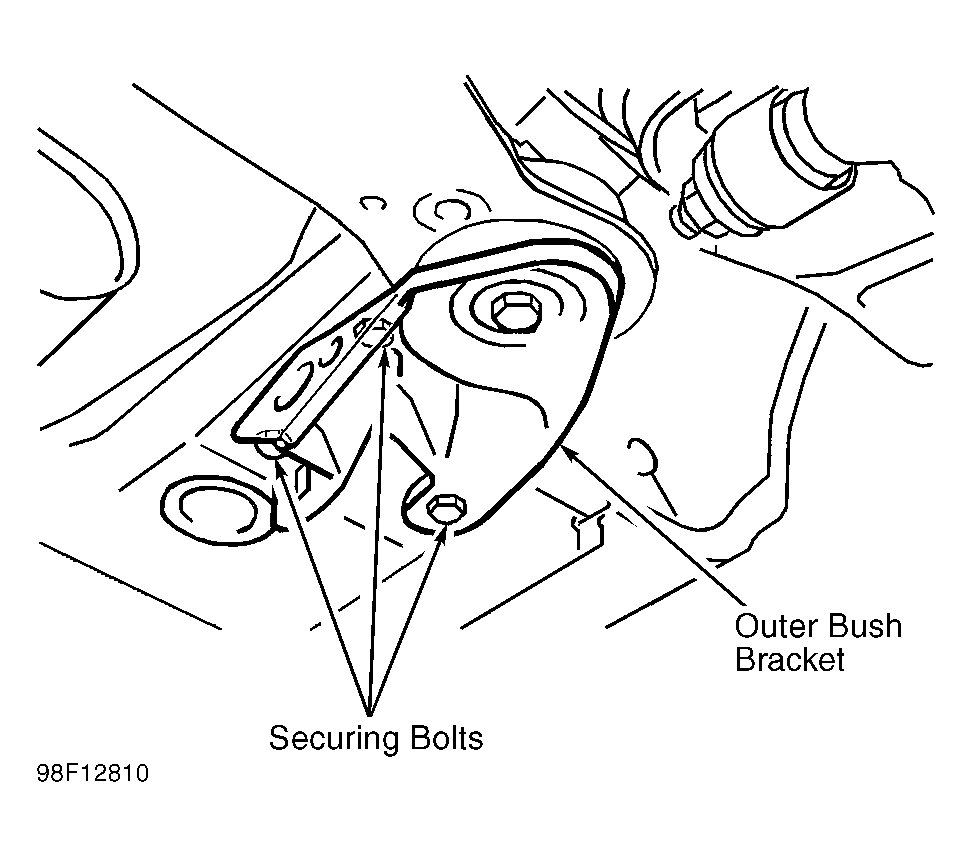

- Position a suitable wood and jack under final drive unit drive flange, operate jack to support final drive unit. Unscrew and remove both "A" frame outer bush to body and bracket securing bolts. See Fig 2. Unscrew and remove "A" frame left and right outer bush bracket to body securing bolts.
- Lower jack approximately 25mm to improve access. Unscrew and remove "A" frame to final drive unit front bracket intermediate securing bolts. Unscrew and remove "A" frame to final drive unit front mounting bracket and tie rod outer securing bolts. Support "A" frame by hand and remove to final drive unit casing securing bolts. Remove "A" frame from vehicle.
