Suspension - Rear: Description

The XJR, XJ6 and XJ8 uses an independent coil spring-type rear suspension. Outer bearing carrier and hub assembly is supported by control arm at bottom, and utilizes axle shaft as upper support. On 1997 models, suspension is controlled by 4 coil spring/shock absorber assemblies, 2 mounted at each rear wheel. Lower control arms connect to radius arms at rear and to chassis members at front. On 1998 models, suspension is controlled by 2 coil spring/shock absorber assemblies. Fulcrum shafts are used to connect control arms to chassis and hub carrier. See Fig 1 and Fig 2.

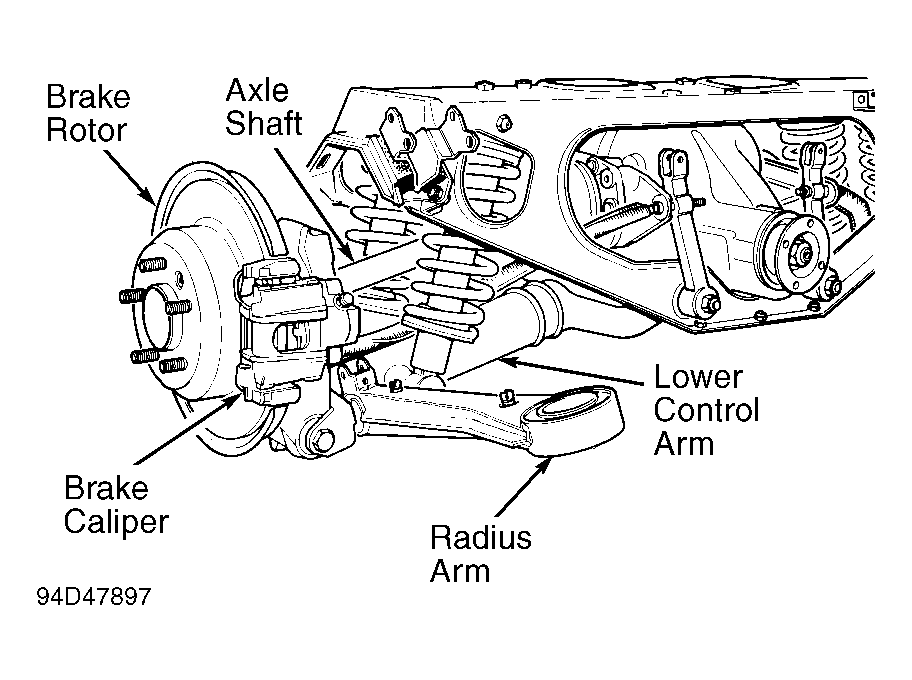

Fig 1: View Of Rear Suspension Assembly (1997)

Courtesy of JAGUAR CARS, INC.

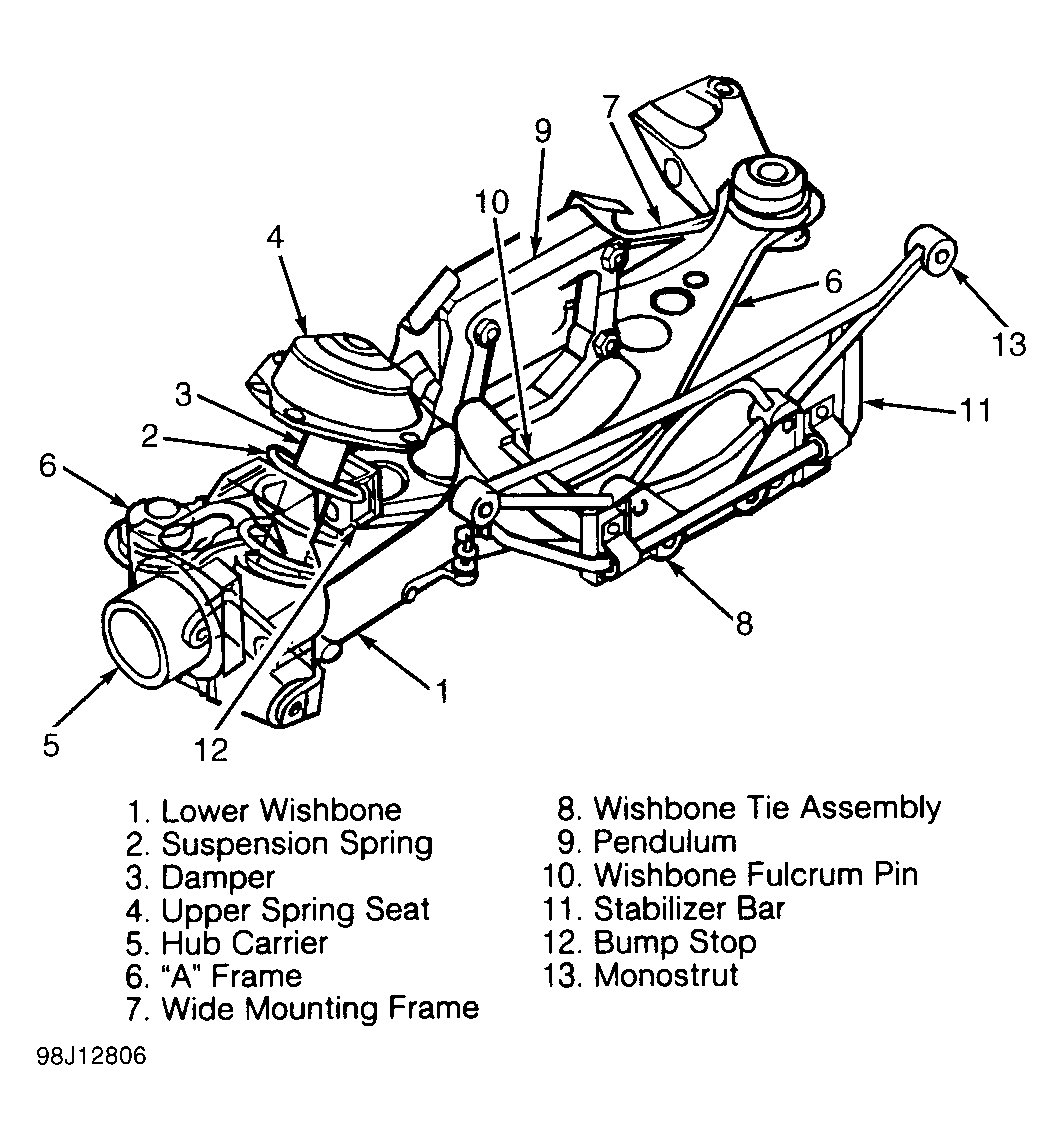

Fig 2: View Of Rear Suspension Assembly (1998)

Courtesy of JAGUAR CARS, INC.
