Hydraulic Diagrams - 3L80, 3L80-Hd, 400, 475 & M400

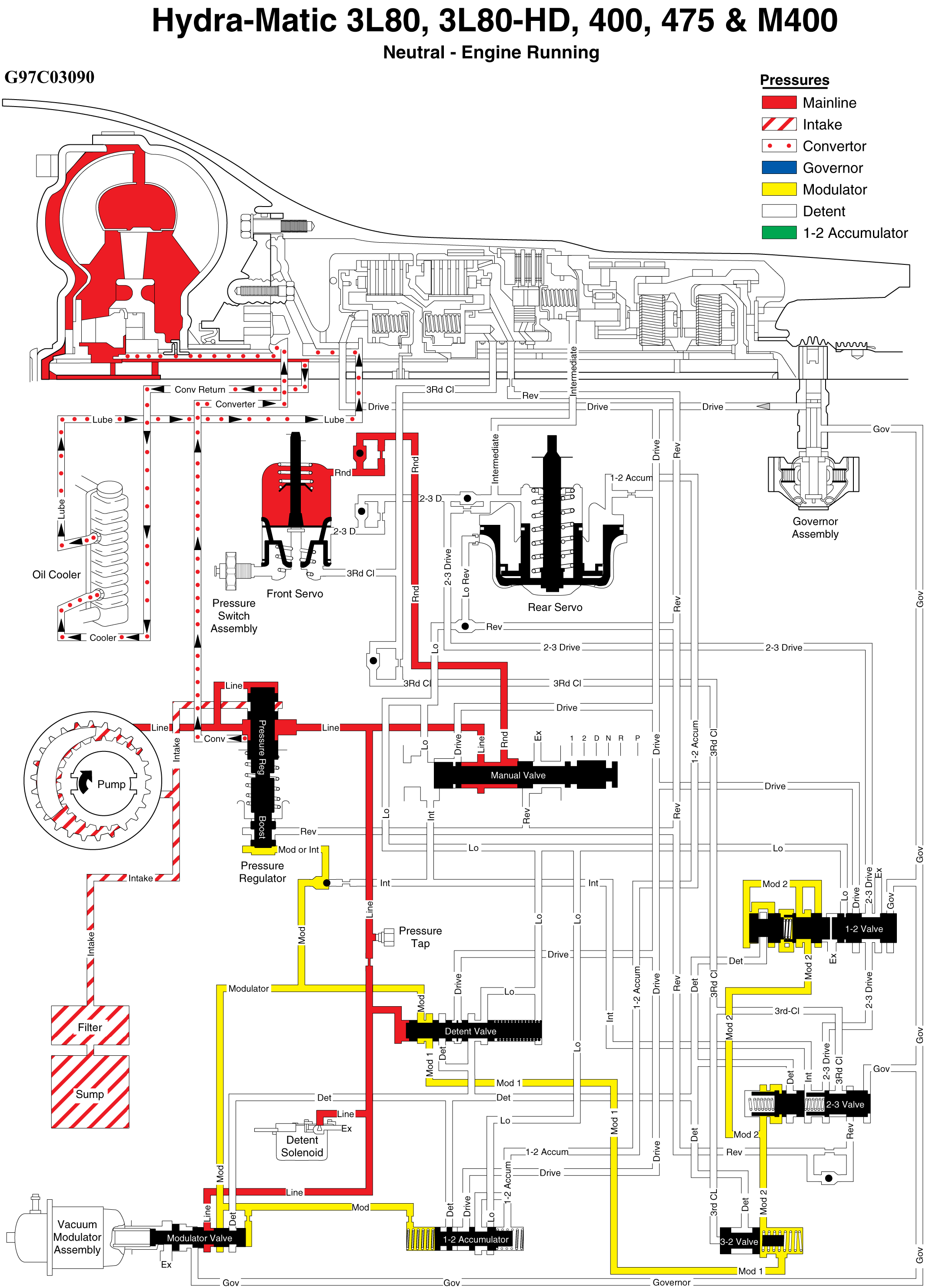

Fig 1: Neutral - Engine Running

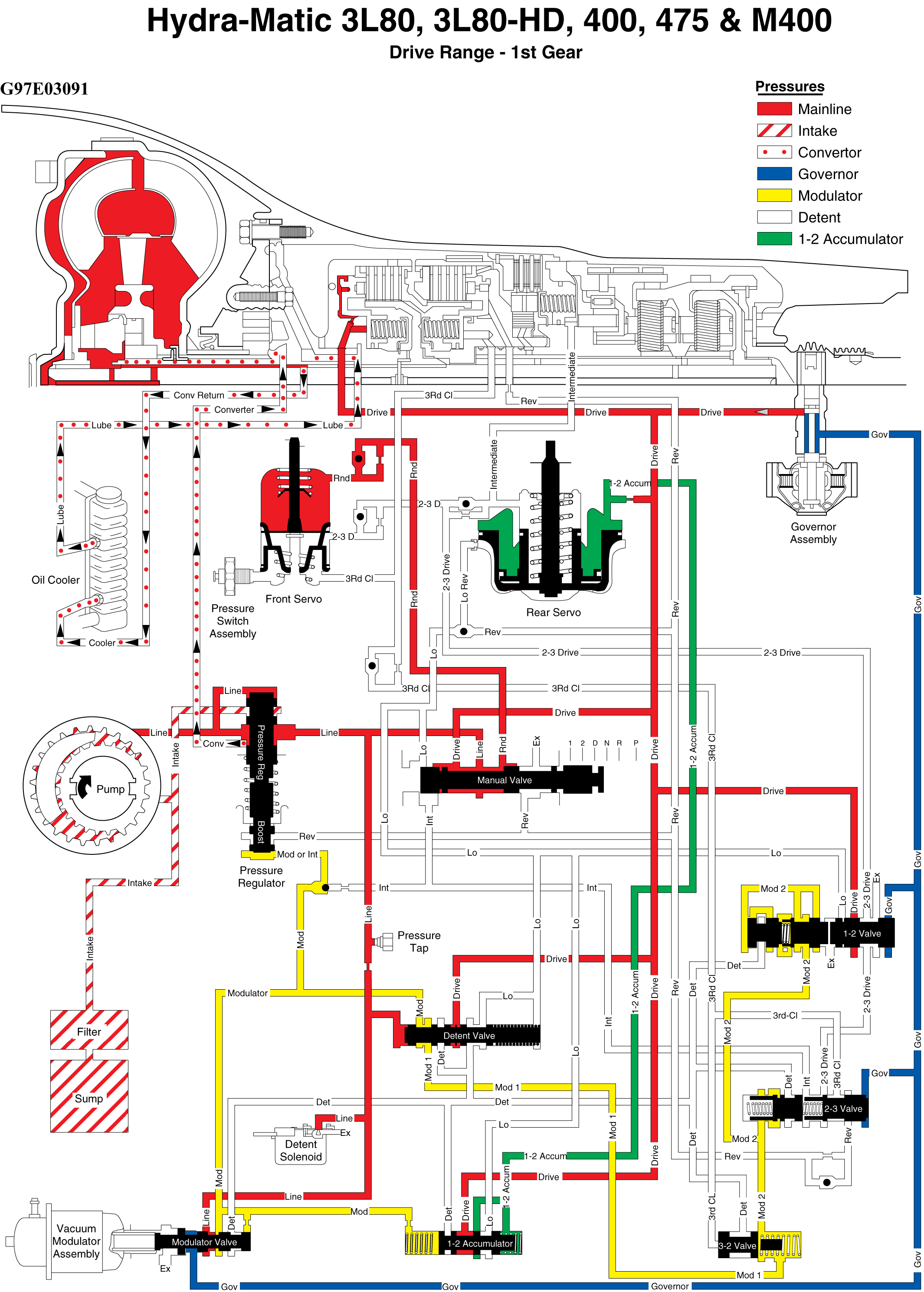

Fig 2: Drive Range - 1st Gear

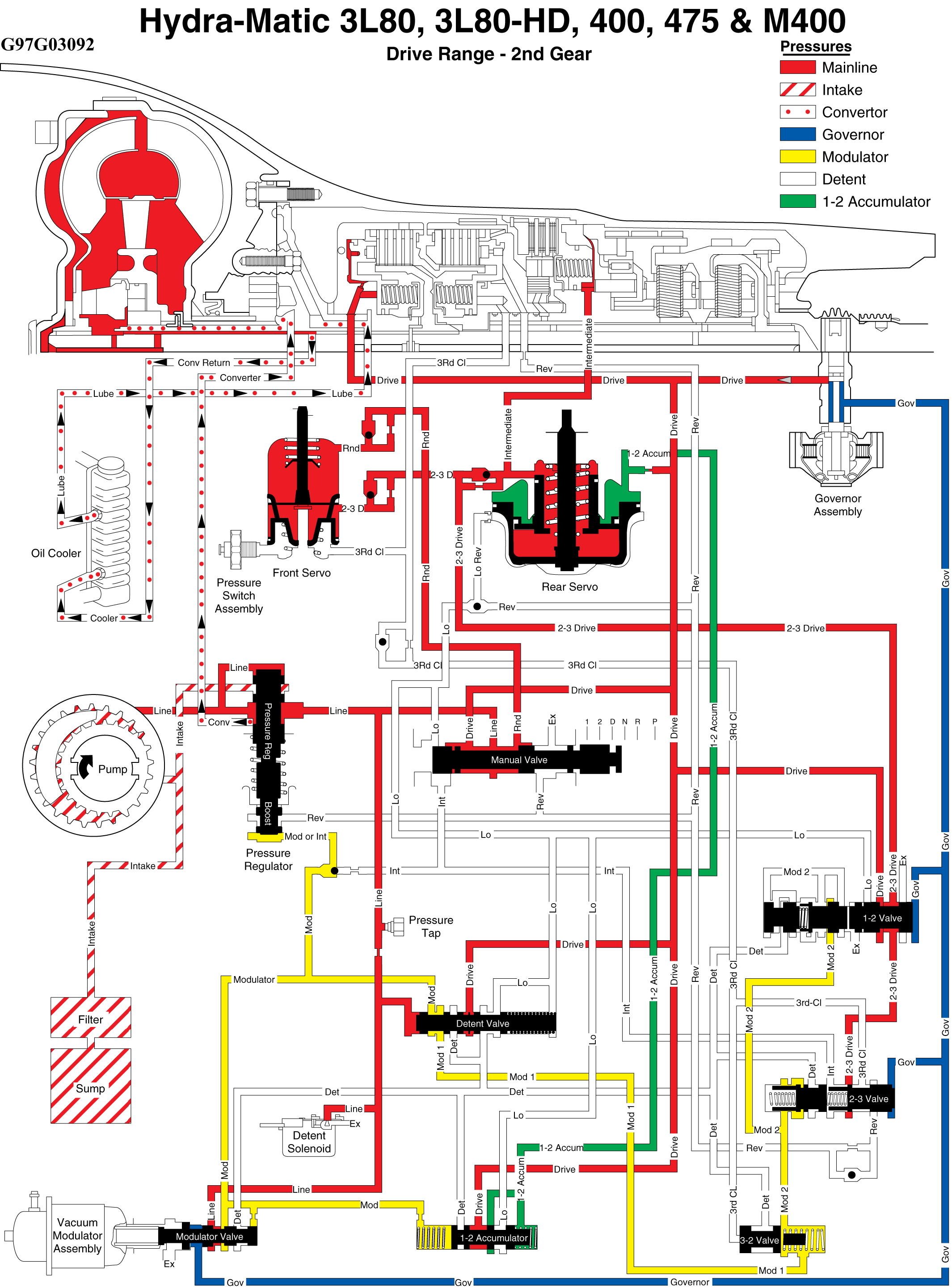

Fig 3: Drive Range - 2nd Gear

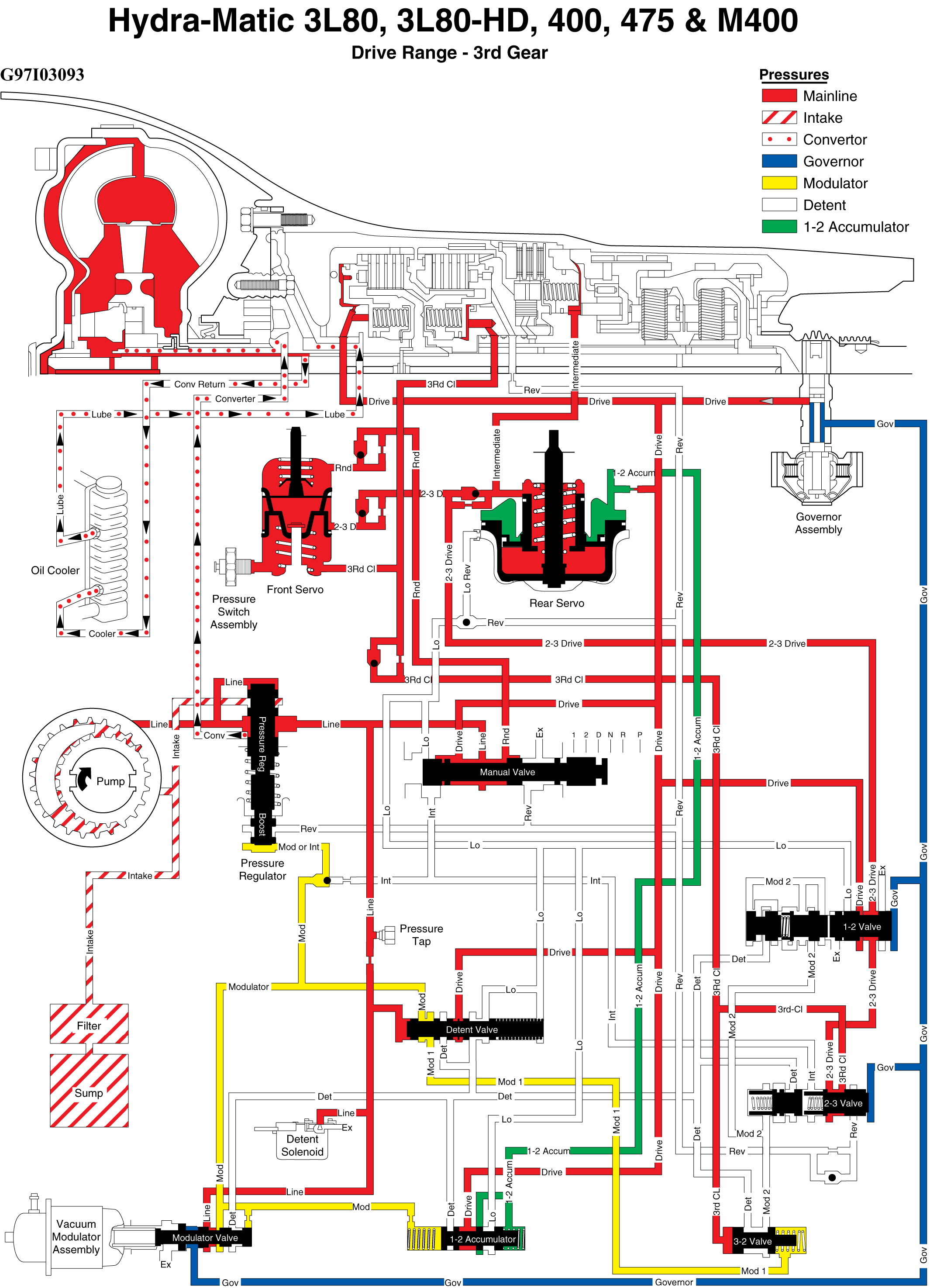

Fig 4: Drive Range - 3rd Gear

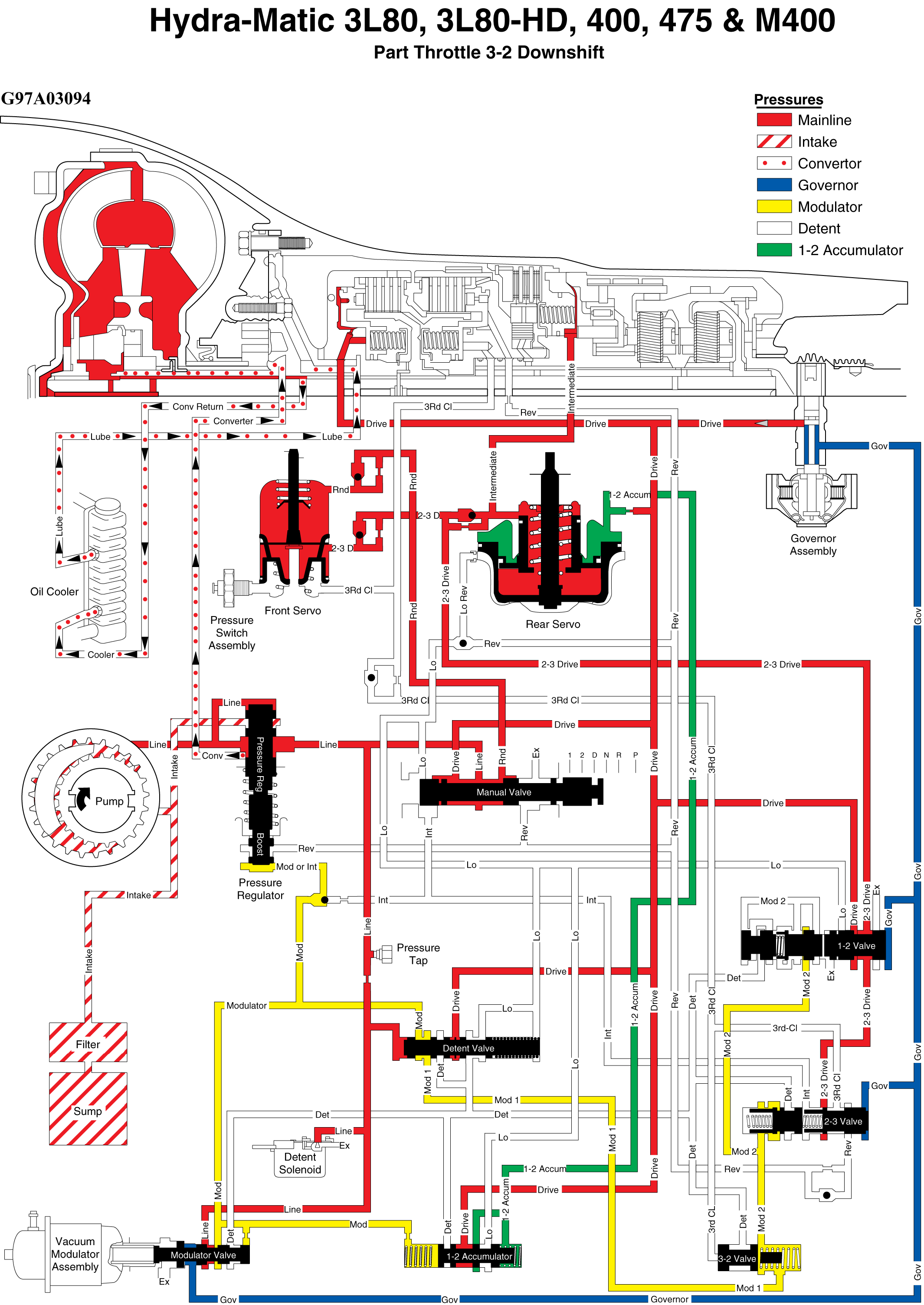

Fig 5: Part Throttle 3-2 Downshift

Fig 6: Detent Downshift - Valves In 2nd Gear Position

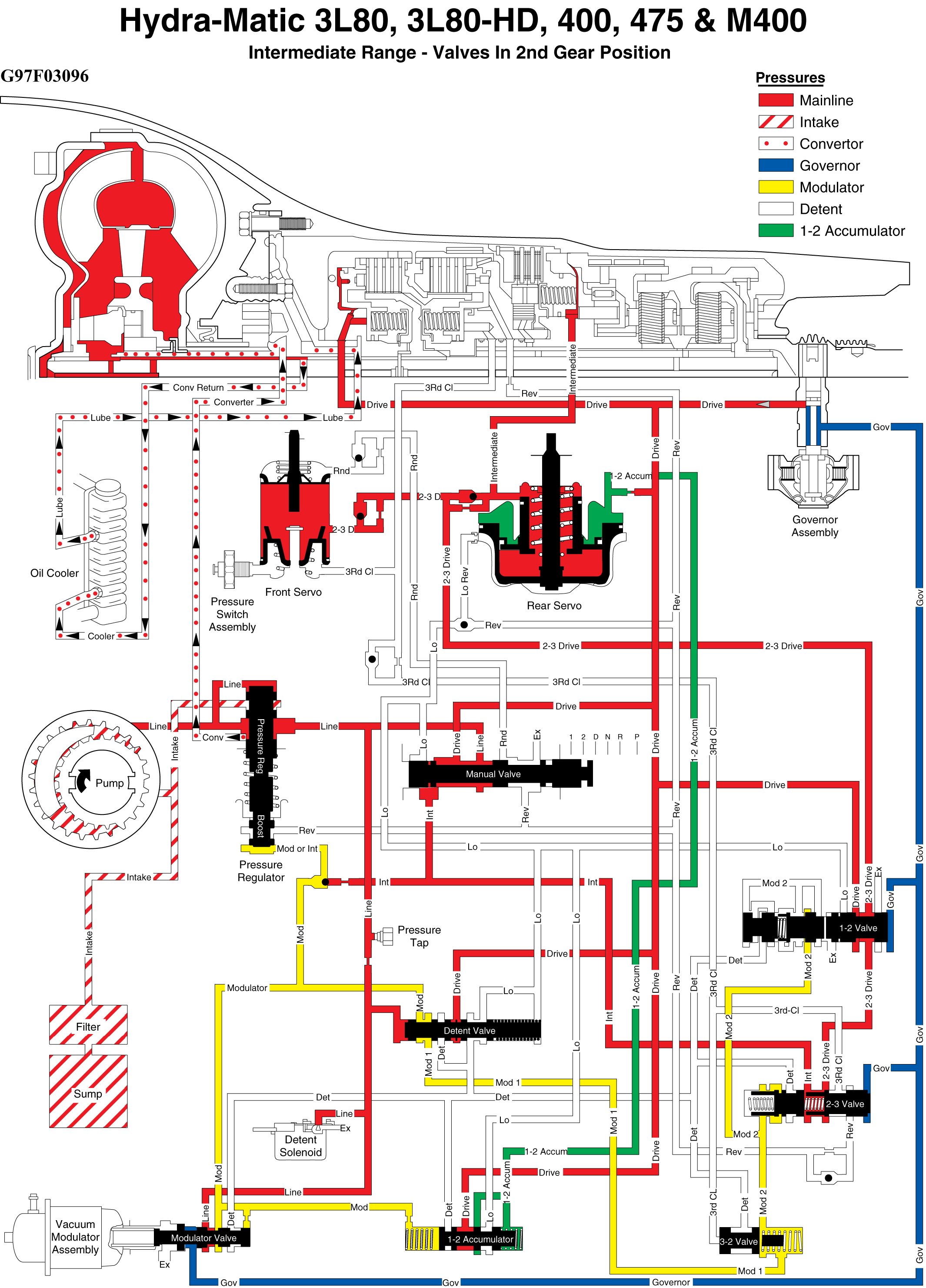

Fig 7: Intermediate Range - Valves In 2nd Gear Position

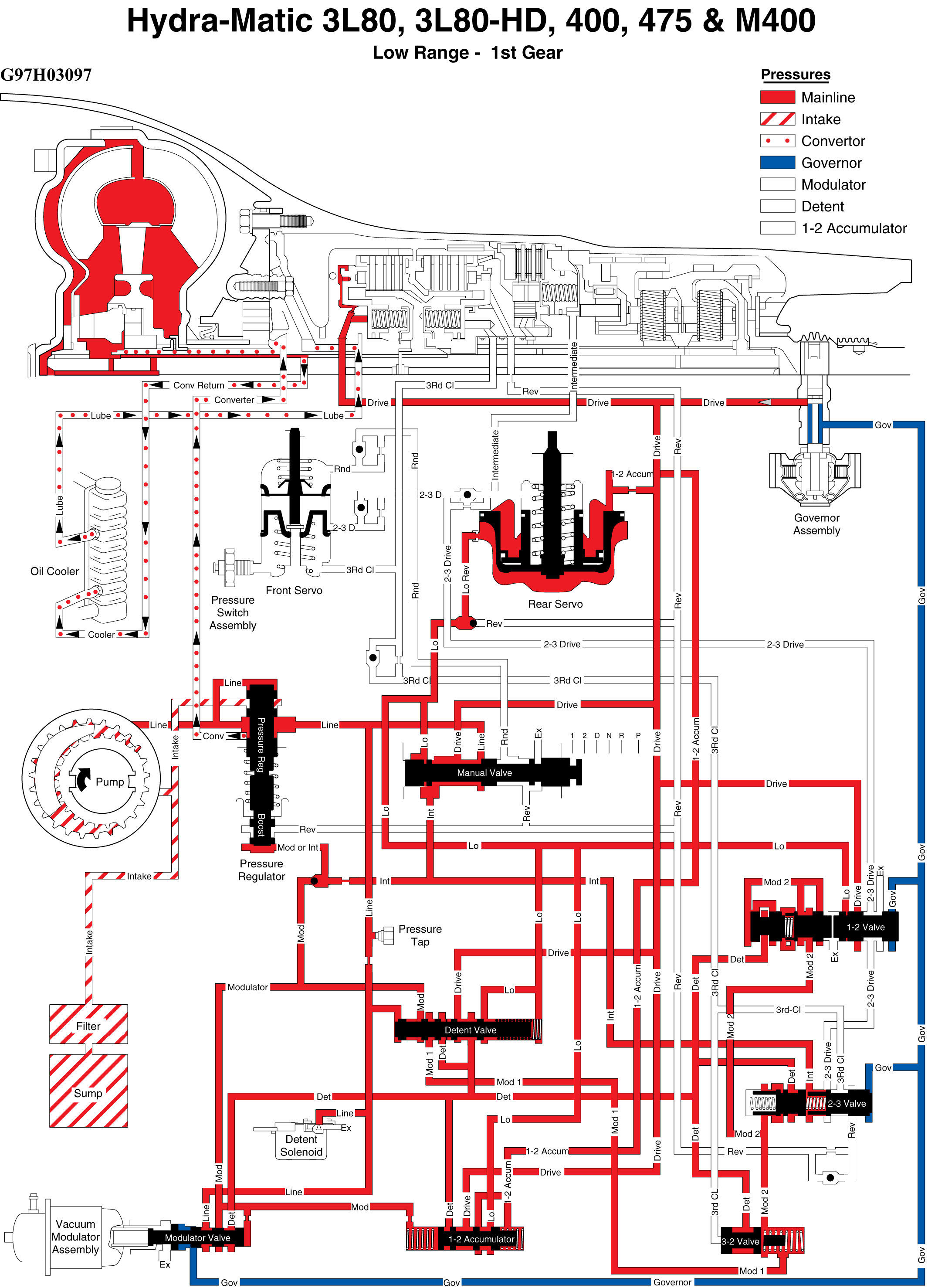

Fig 8: Low Range - 1st Gear

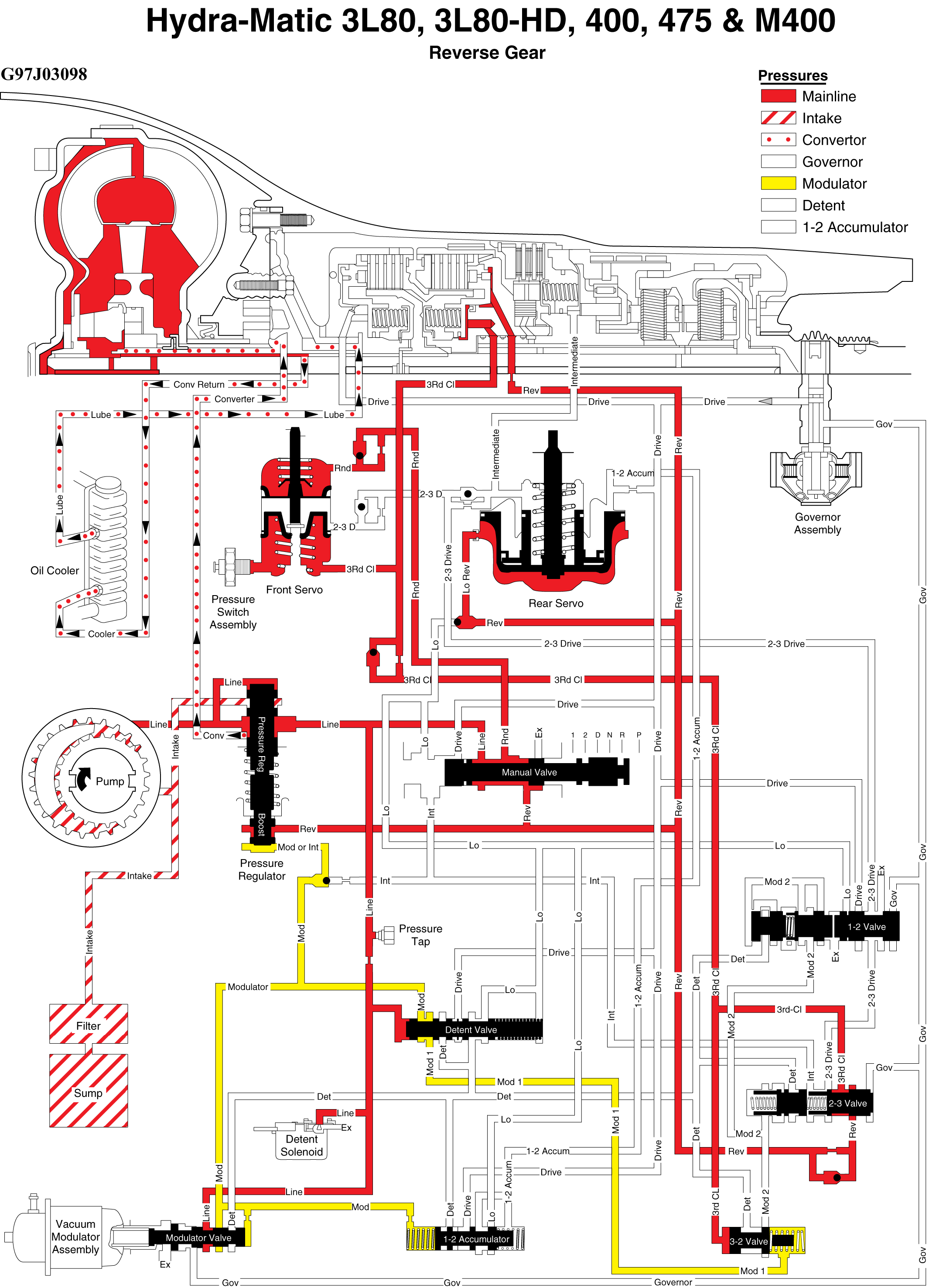

Fig 9: Reverse Gear
