Front Door Window Motor: Service and Repair

RENEW

- Open the bonnet and disconnect the battery earth lead.

- Remove the veneer panel. Service and Repair

- Remove the upper trim pad.

- Remove the lower trim pad.

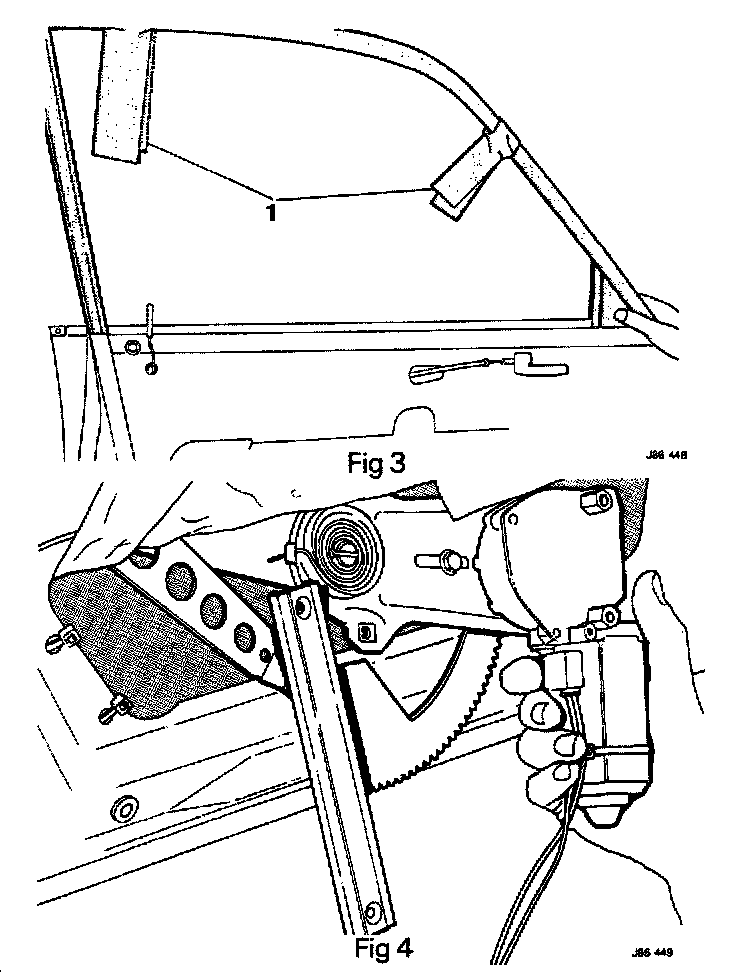

- Fit tape over the door glass and frame to secure the glass (Fig 3).

- Remove the screws securing the window lift motor assembly to the door panel.

- Remove the rubber cover from the window lift guide securing screws and remove the screws.

- Displace the block connector blanking plate from the door for access.

- Cut and remove the ratchet strap securing the block connector.

- Disconnect the cable harness block connector.

- Displace the window lift motor from the glass and lower the window lift motor assembly into the bottom of the door.

- Remove the window lift motor assembly from the door (Fig 4).

- Fitting a new motor assembly is the reversal of the removal procedure.
