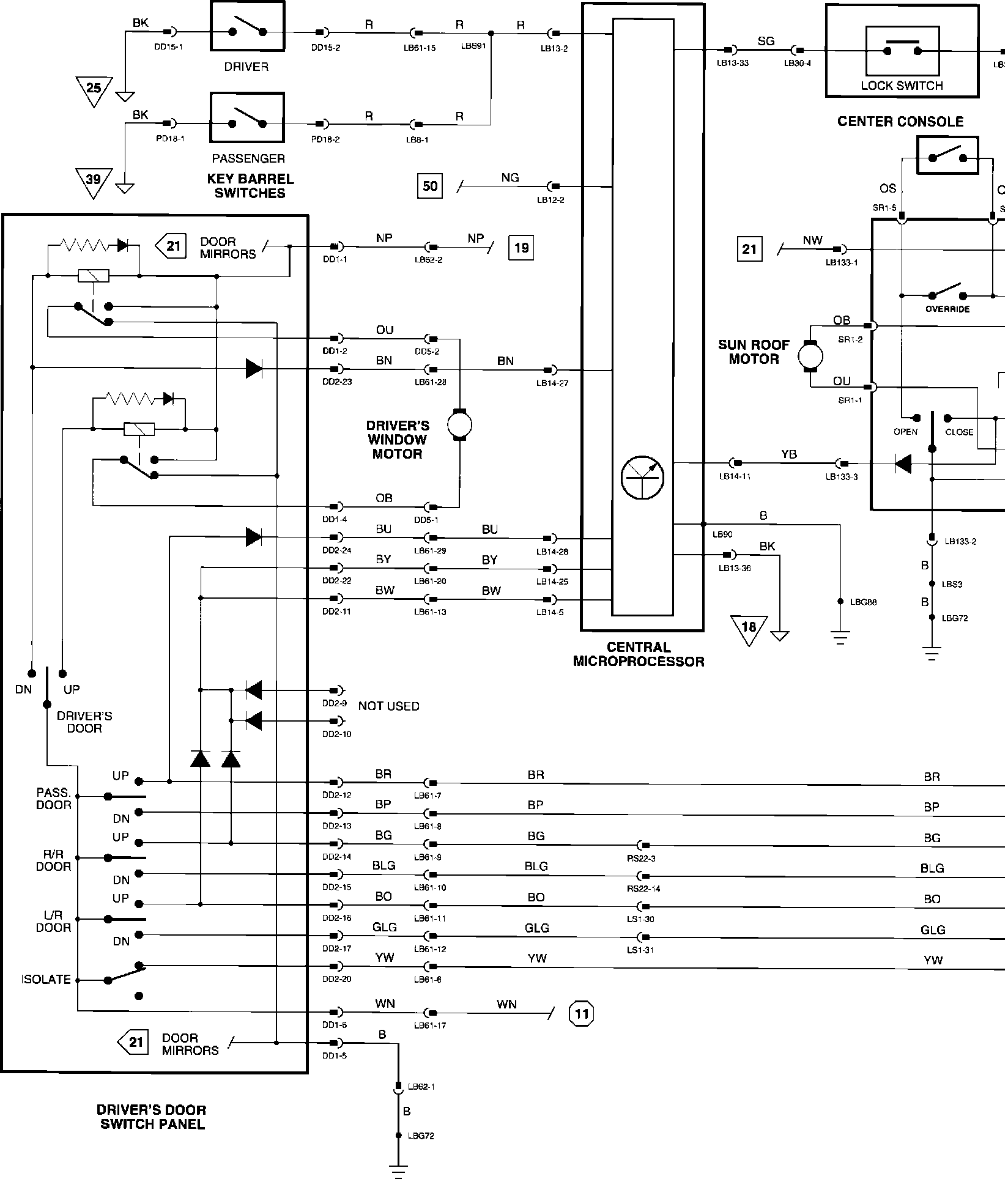

Electrical Diagrams

͖f!Power Windows, Sunroof:

Component Location

Power Windows, Sunroof:

Component Location
