Test 4 - Ride Leveling Quick Test

CAUTION: In order to ensure accurate test results, repeat each test that relies on a hydraulic pressure reading before continuing with the test procedure or condemning a component.

1. Raise car on lift.
2. Raise ride height sensor link arm.
3. Start engine and allow to idle.

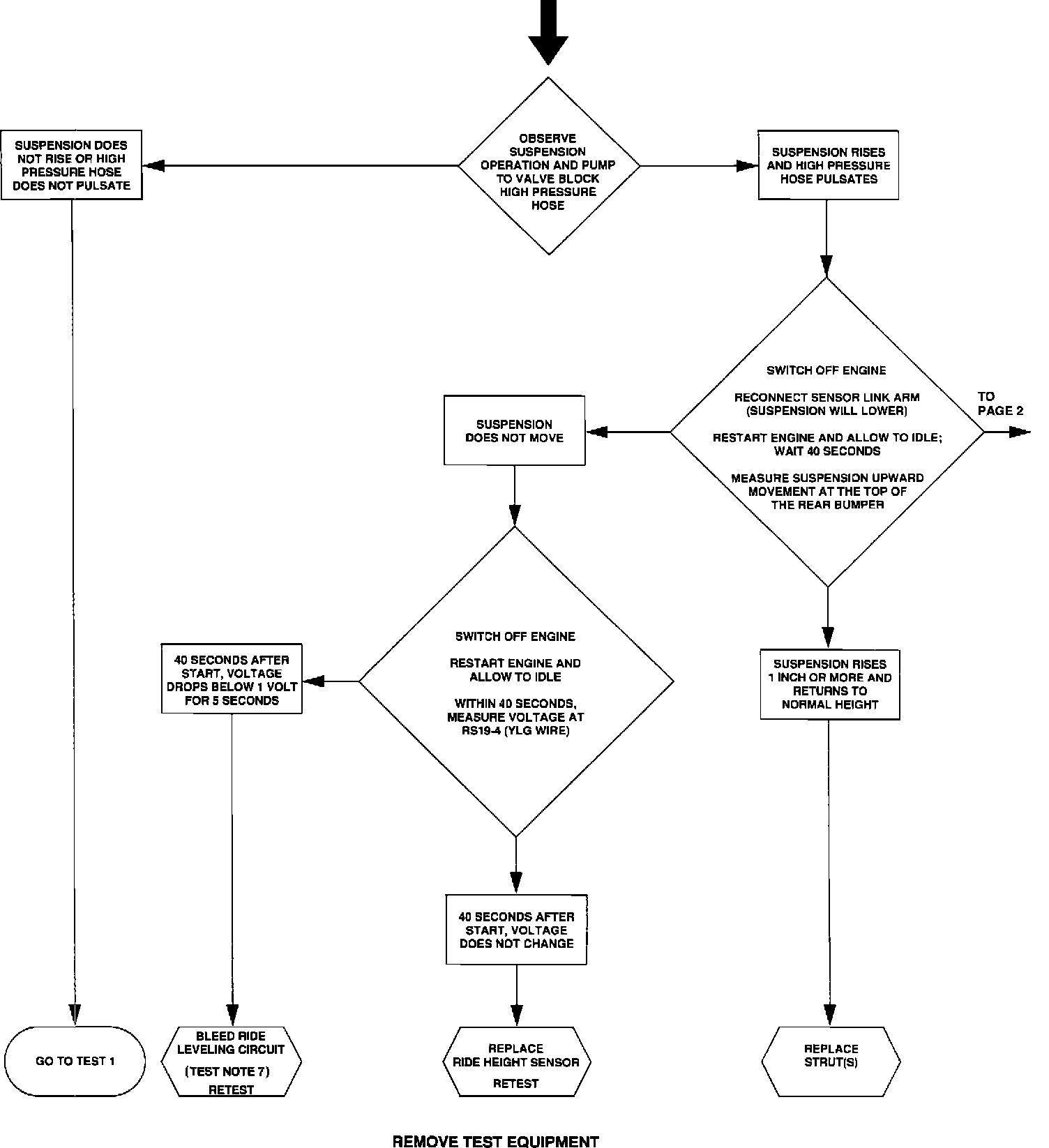

Page 1 Of 2:

PAGE 1

Page 2 Of 2:

PAGE 2

TEST 4


NOTE: Take all voltage measurements within 5 minutes of switching ignition ON. If more time is required, switch ignition OFF and then switch ON again.
