Steering: Testing and Inspection

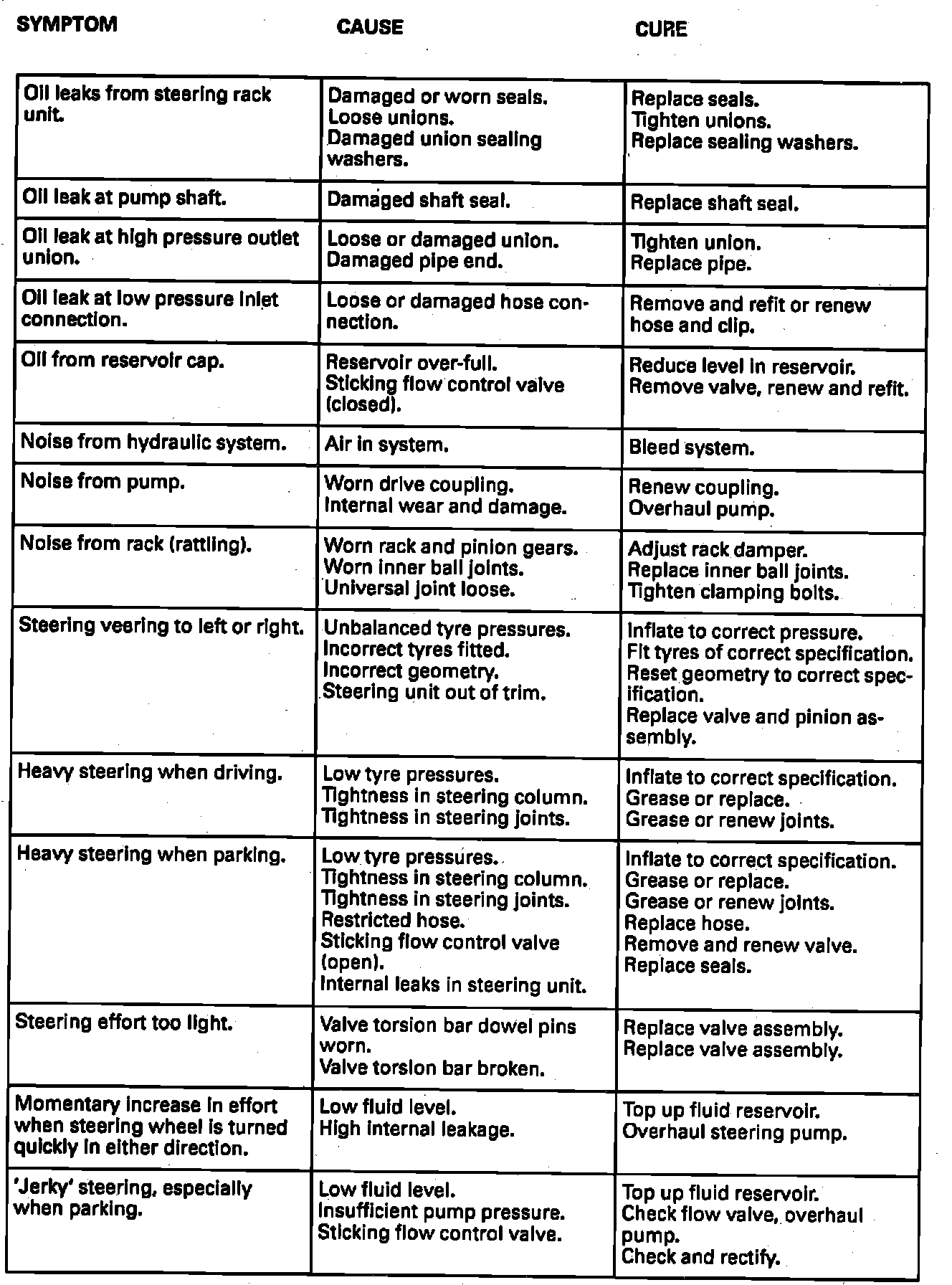

Fig. 3 Steering System Troubleshooting:






Refer to Fig. 3 when troubleshooting the power steering system.
