Electrical Diagrams

��Battery, Starter, Alternator:

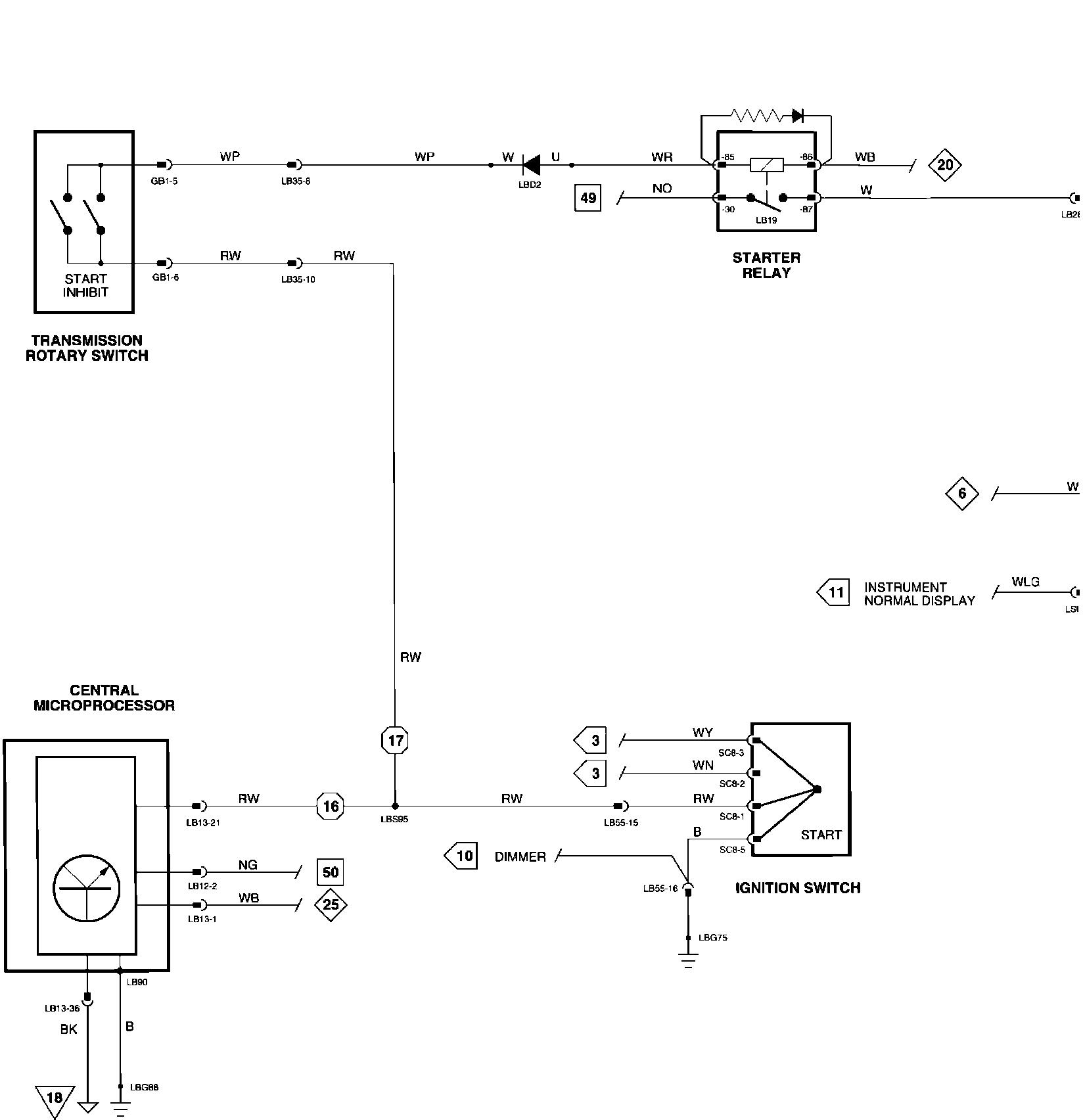

Wiring Diagram

Battery, Starter, Alternator:

Component Location
