PCV Heater: Service and Repair

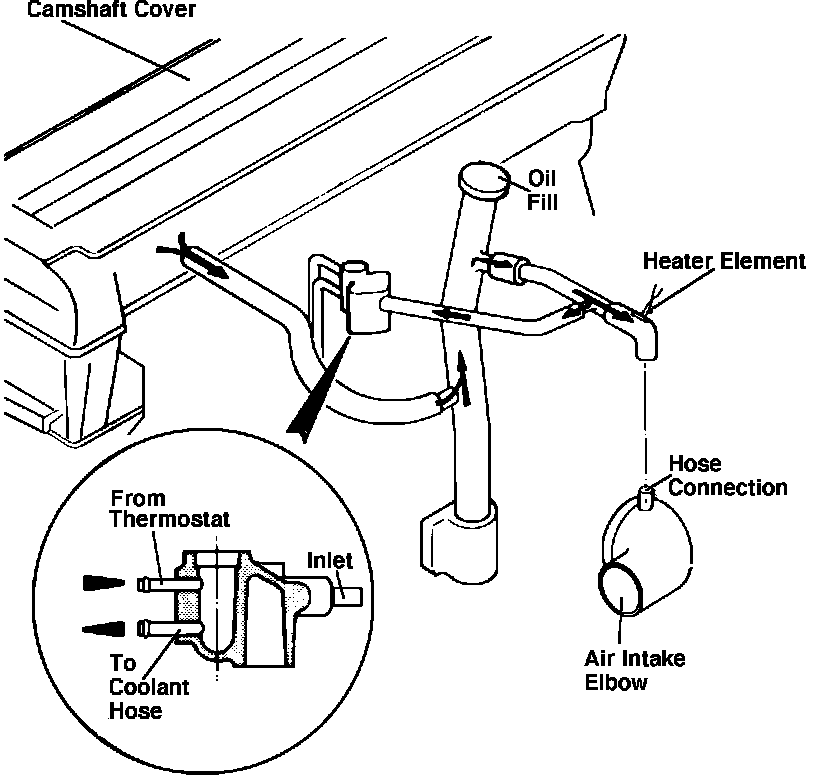

Fig. 11 PCV System:





1. Disconnect hose from oil filler tube.
2. Disconnect hose from part throttle control orifice housing.

Fig. 14 Engine Heater Breather Element:





3. Disconnect hose from heater element.
4. Disconnect clamps from hose and remove hose from vehicle.
5. Reverse procedure to install.
