Flap Motor/Gearbox Assembly (Lower)

Flap Motor/Gearbox Assembly (Lower)

Removal
1. Open the bonnet and disconnect the battery earth lead.
2. On left hand drive cars, remove the glove box and relay mounting bracket.
3. Remove the left hand side dash liner.

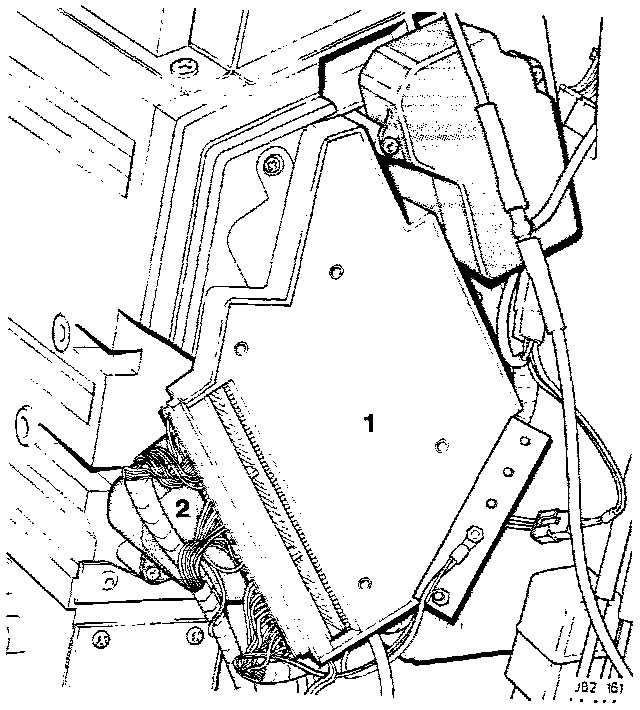

4. Remove the screws securing the electronic control module (1) to the air conditioning unit and reposition the module for access.
5. Remove the screws securing lower motor assembly, displace the assembly and disconnect the multi-plug connector.
6. Remove the flap motor assembly.

NOTE: Installation is the reverse order of the removal procedure.
