Home >> Jaguar >> 1992 >> Sovereign L6-4.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> System Diagram

System Diagram

T��"Power Seats:

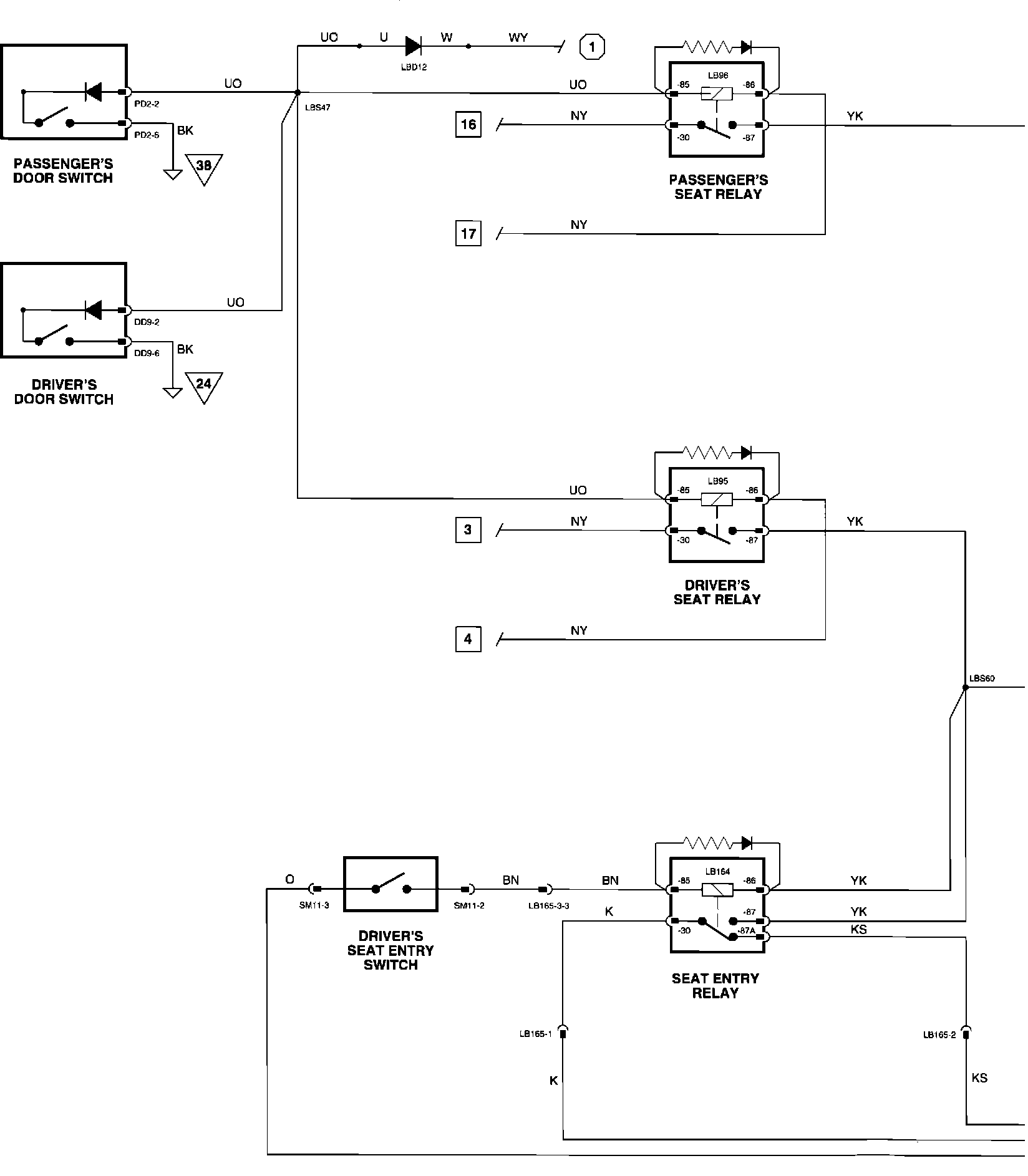

Wiring Diagram

Power Seats:

Component Location
