Radio, Stereo, and Compact Disc

]�wEntertainment:

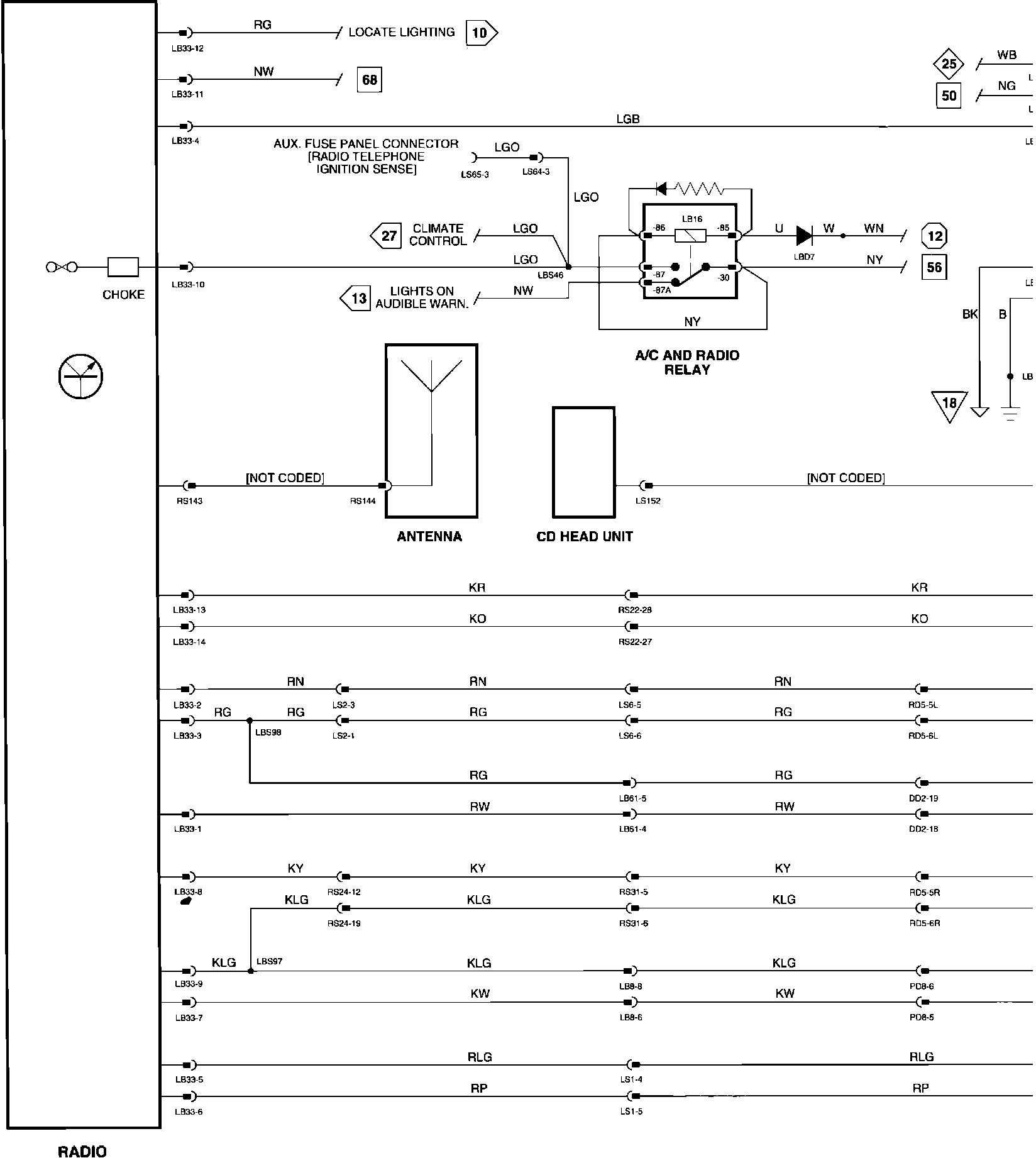

Wiring Diagram

Entertainment:

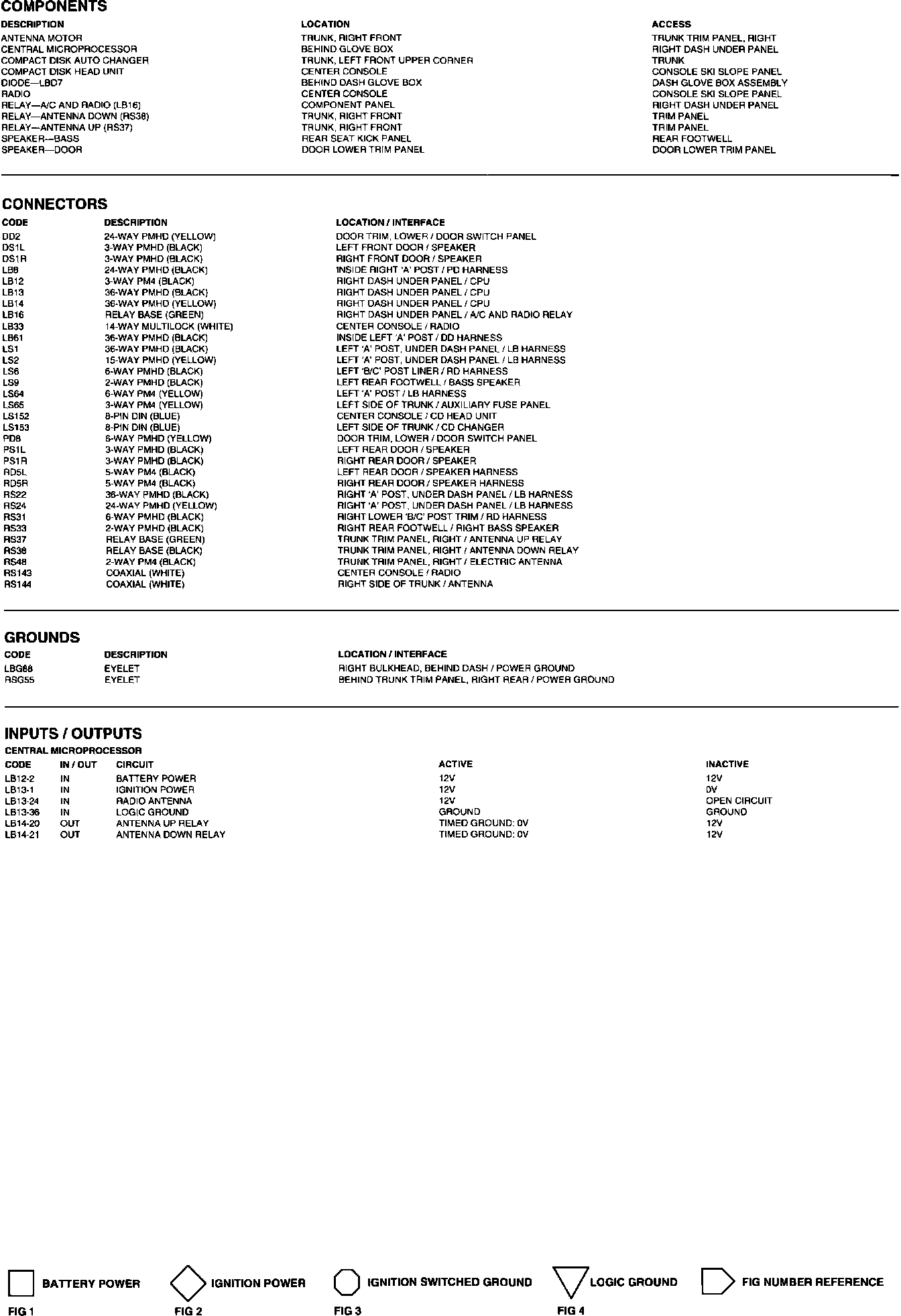

Component Location
