Home >> Jaguar >> 1992 >> Sovereign L6-4.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Fig Number >> Fig. 30

Fig. 30

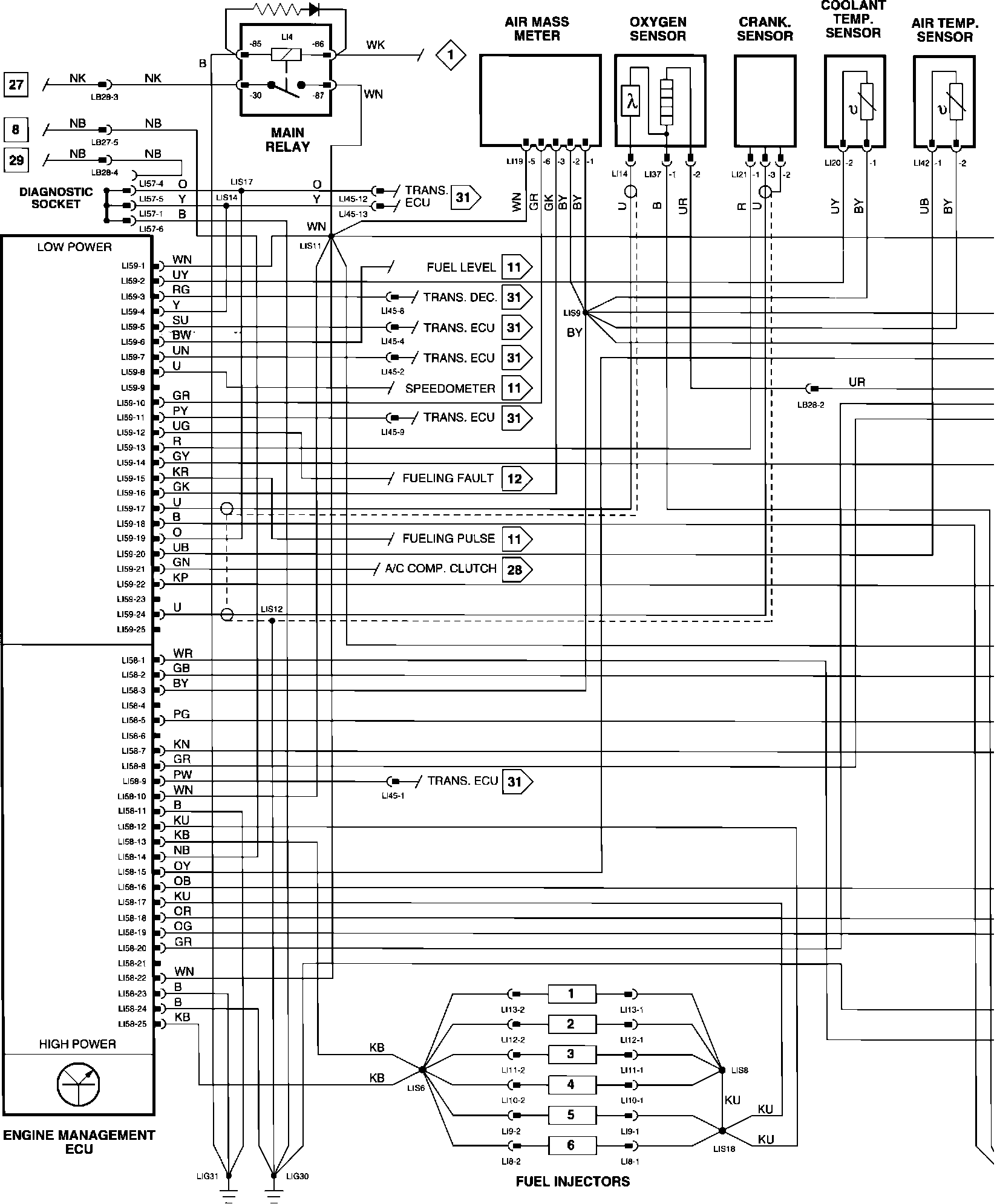

�pV'Engine Management:

Wiring Diagram

Component, connectors, grounds, input/outputs
