Fig. 2

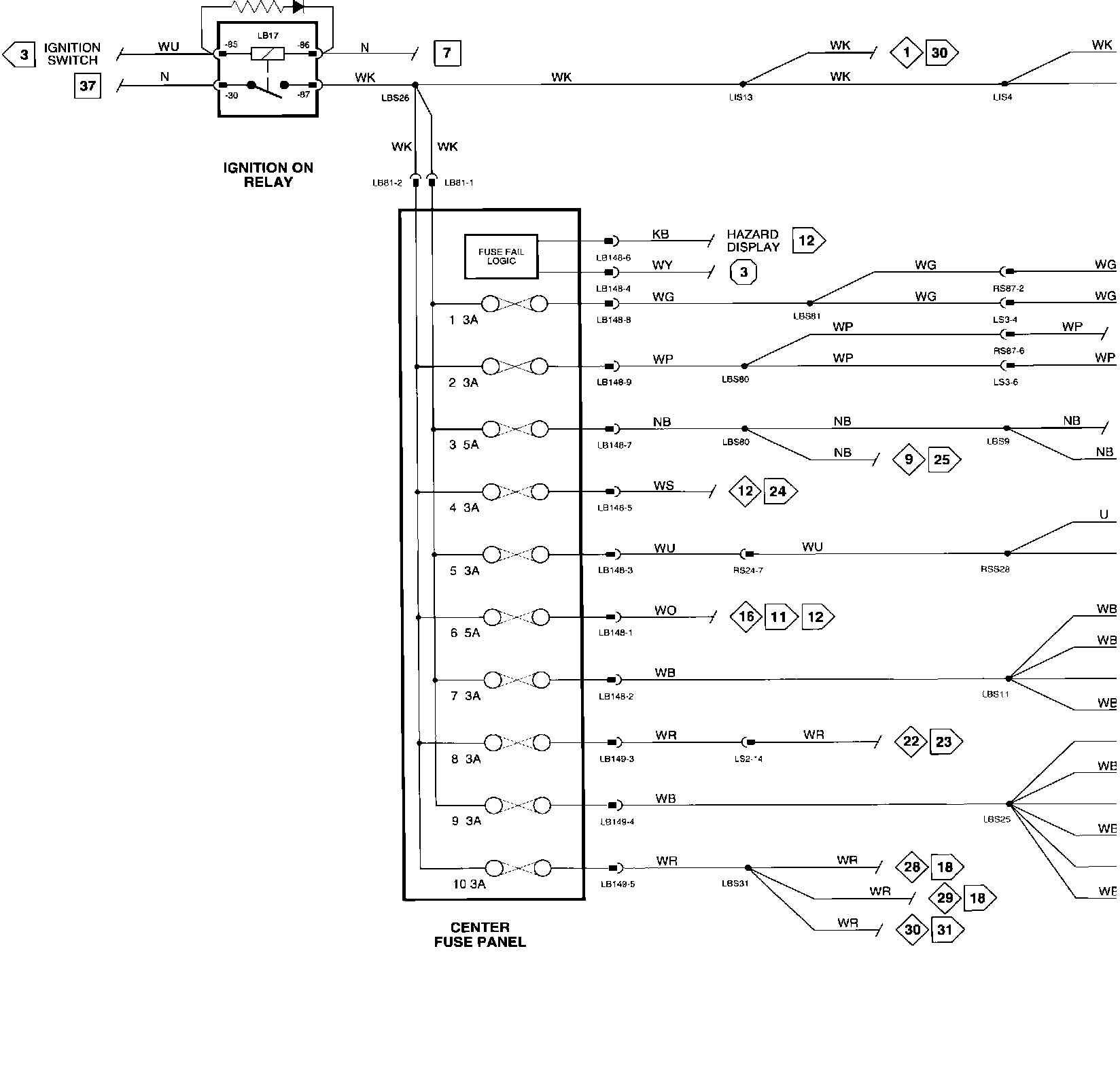

�W�Ignition Switched Power Distribution:

Wiring Diagram

Ignition Switched Power Distribution:

Component Location
