Fig. 19

�"� Heaters - W/S Washer, H/L Washer, Engine Breather:

Wiring Diagram

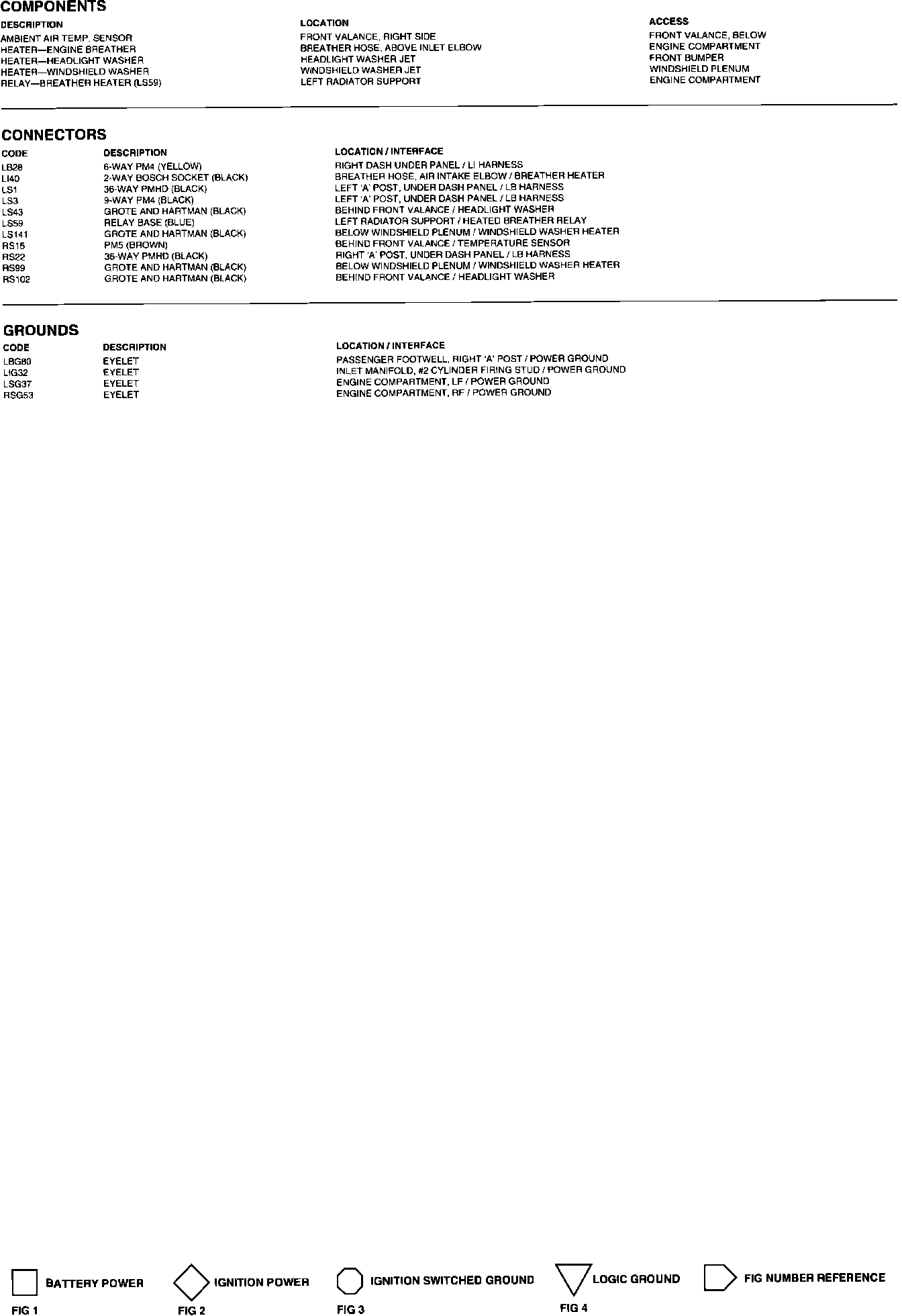

Heaters - W/S Washer, H/L Washer, Engine Breather:

Component Location
