Jaguar
>>
1992
>>
Sovereign L6-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle
Automatic Transmission/Transaxle
bt�Transmission Control:

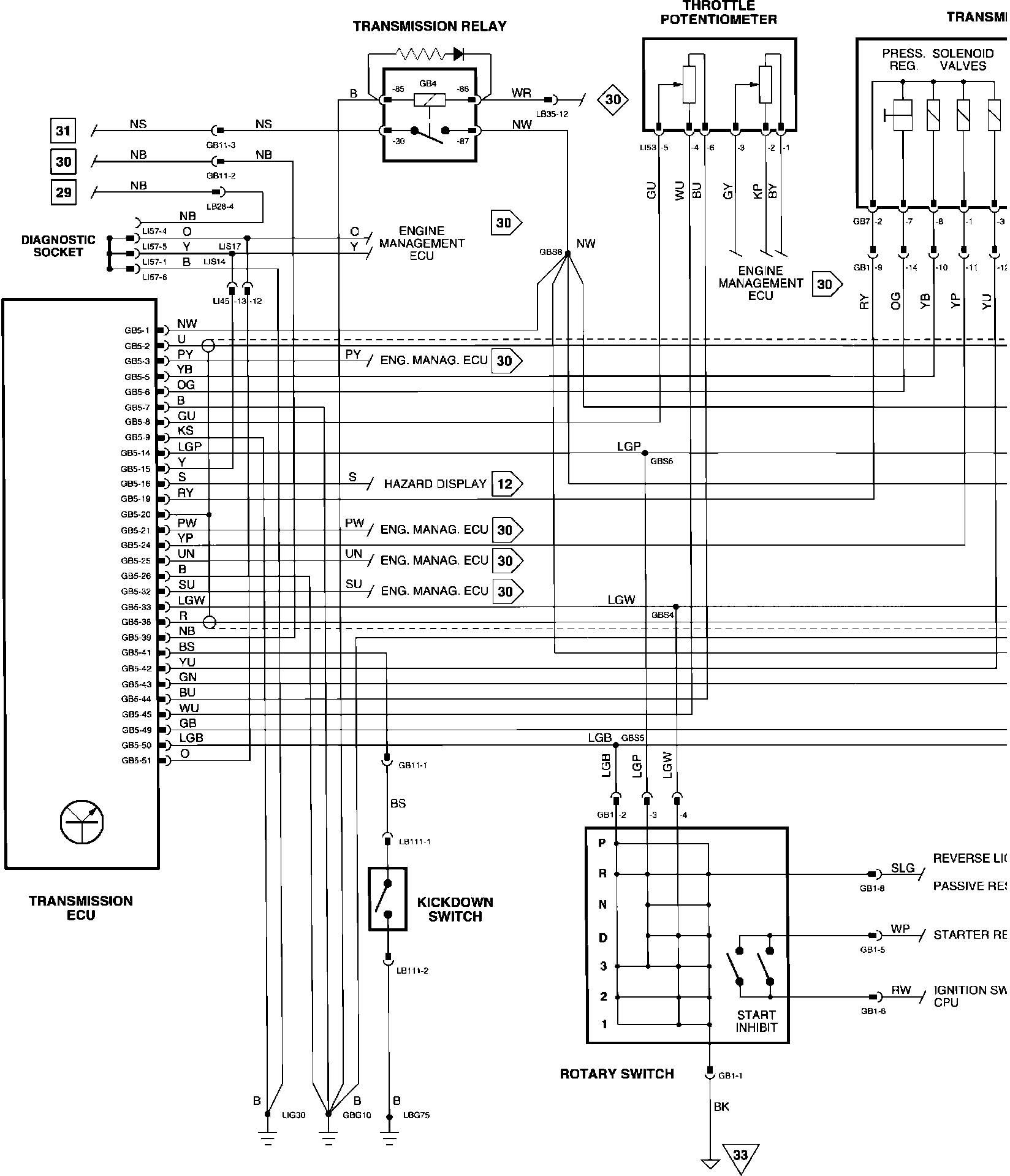

Wiring Diagram
Transmission Control:
Component Location
