Ride Height Sensor: Service and Repair

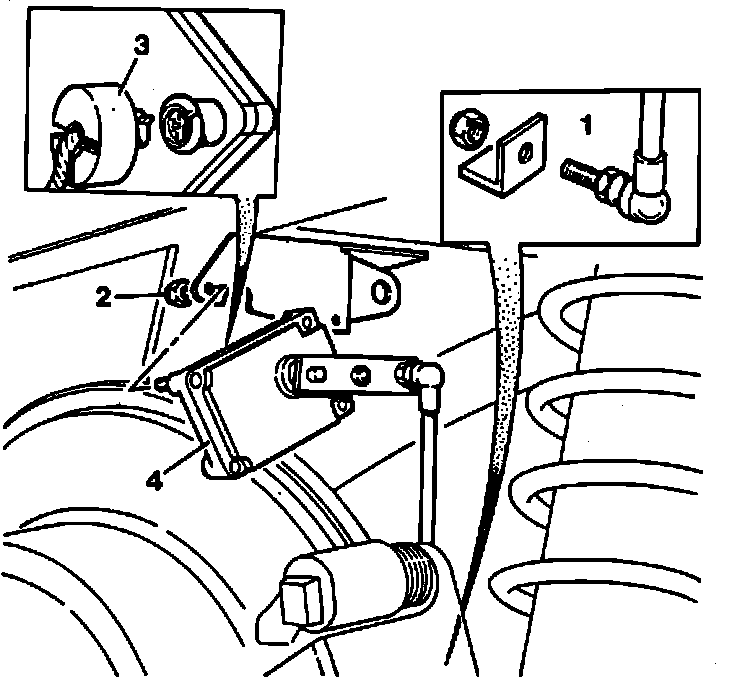

Fig. 3 Ride Height Sensor Replacement:

1. Disconnect battery ground cable.
2. Raise and support rear of vehicle.
3. Remove sensor securing nut and the link arm (1). Fig. 3.
4. Remove sensor securing nuts (2).
5. Disconnect multi-pin plug (3).
6. Remove sensor (4).
7. Reverse procedure to install.
