Coolant Temperature Sensor / Switch HVAC: Service and Repair

Coolant Temperature Switch

Removal
1. Open the bonnet and disconnect the battery earth lead.
2. Open the car door and remove the left hand side dash liner

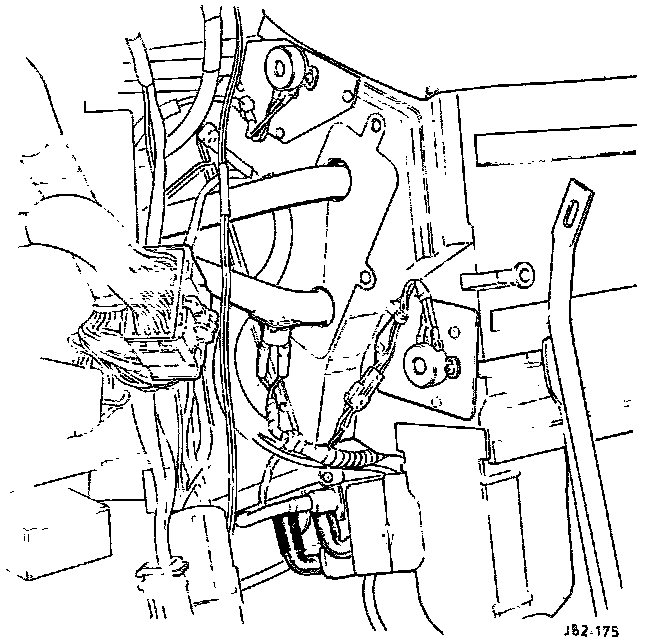

3. Note the position and disconnect the switch supply cables.





4. Remove the screws securing the switch and remove the switch.

NOTE: Installation is the reverse of the removal procedure.
