Instrumentation; Hazard and Fault Display (VCM)

��$:

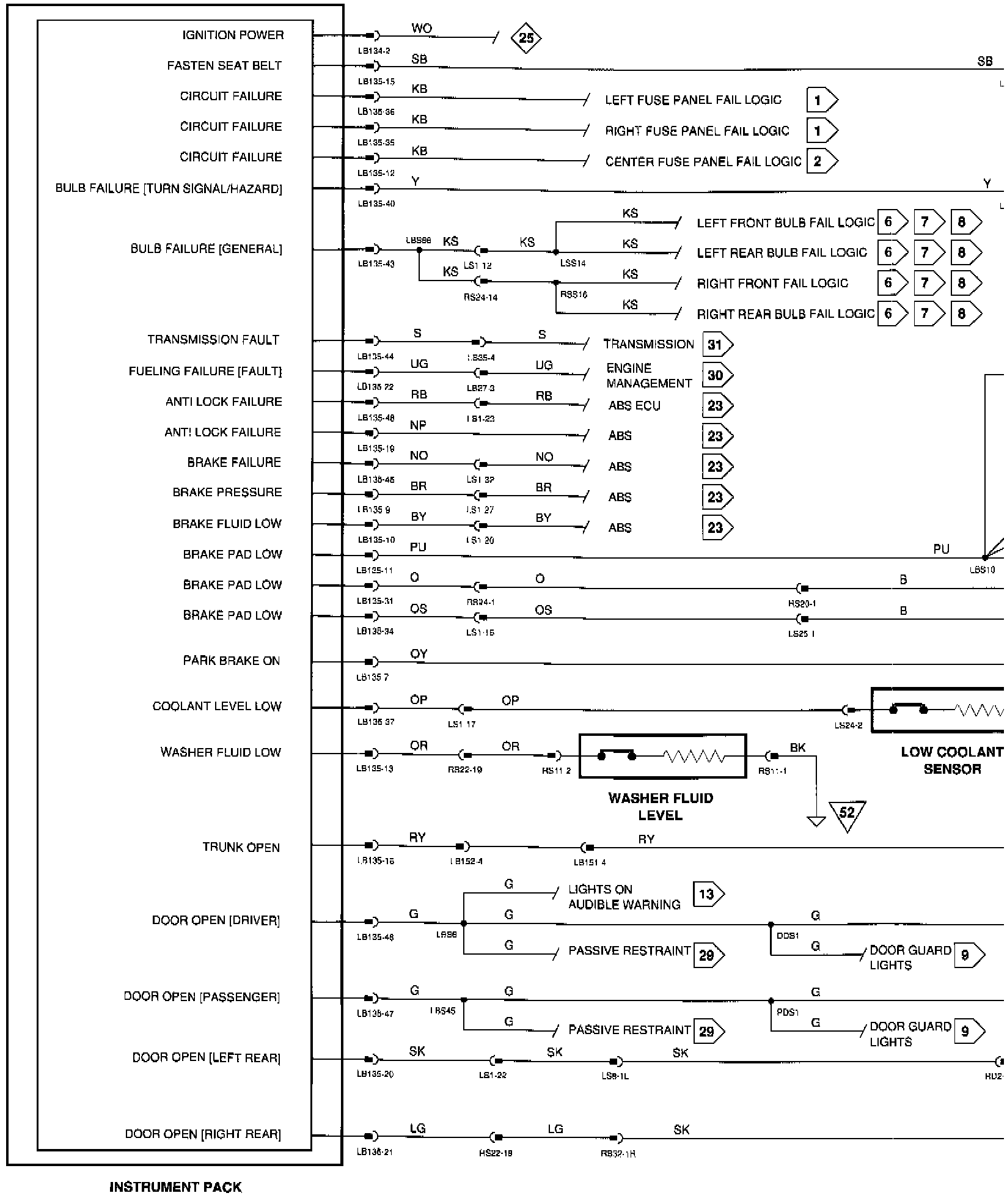

Instrumentation: hazard & fault display

Diagram Symbol:

Diagram Symbols


Data information:

Instrumentation: Hazard & Fault Display - Components, Connectors, & Inputs/Outputs:

Components

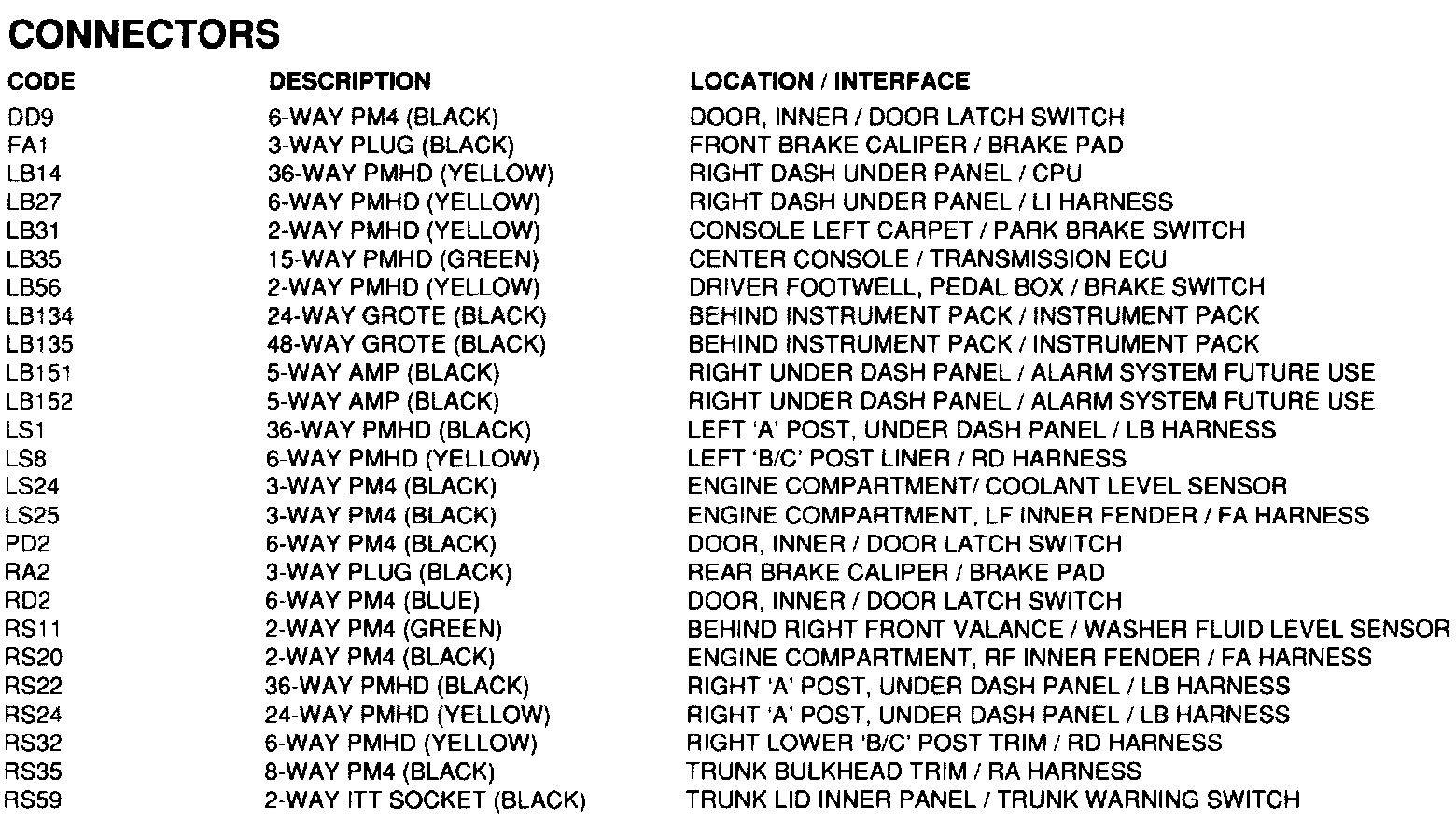

Connectors

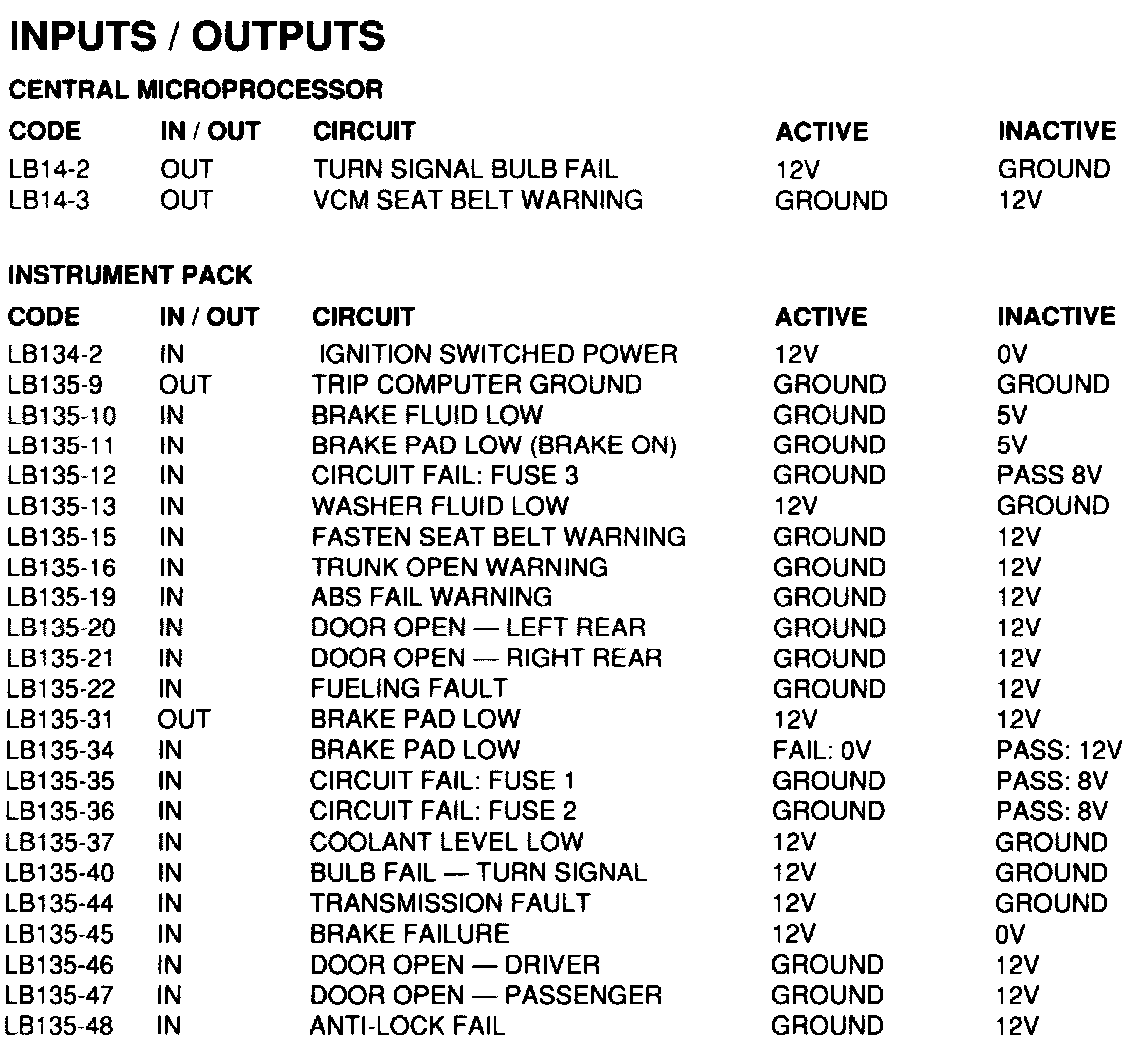

Inputs/Outputs


For the diagrams that continue from this diagram, refer to "Diagrams : Electrical : Diagrams By Fig Number"

Electrical Diagrams
