Audible Warning Device

z��#:

Audible warnings

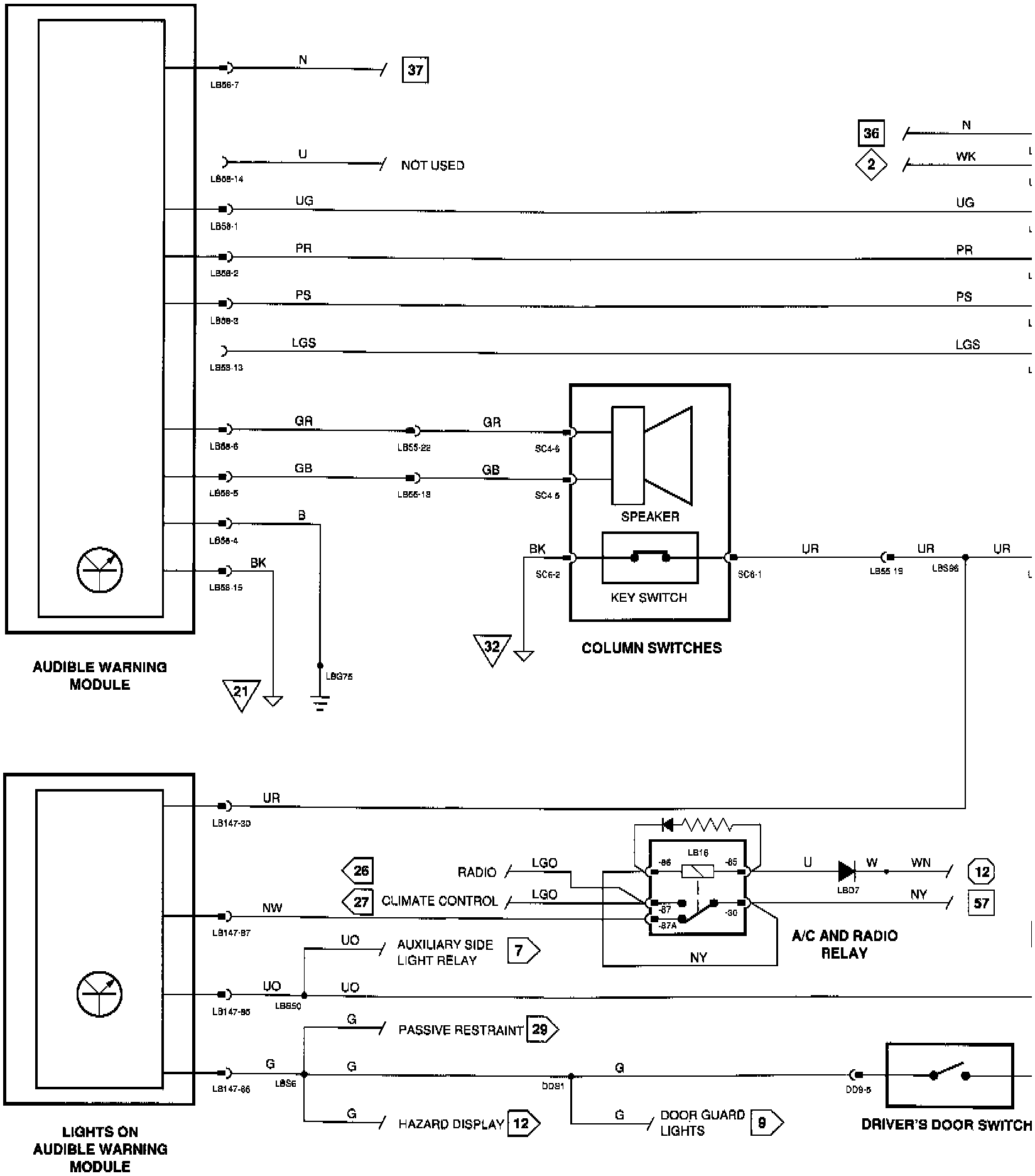

Diagram Symbol:

Diagram Symbols


Data information:

Audible Warnings - Components, Connectors, & Inputs/Outputs:

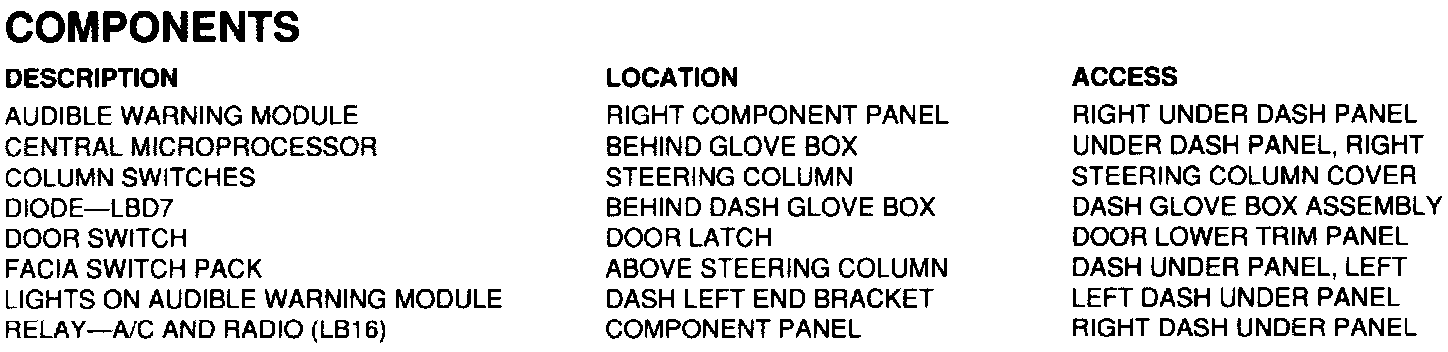

Components

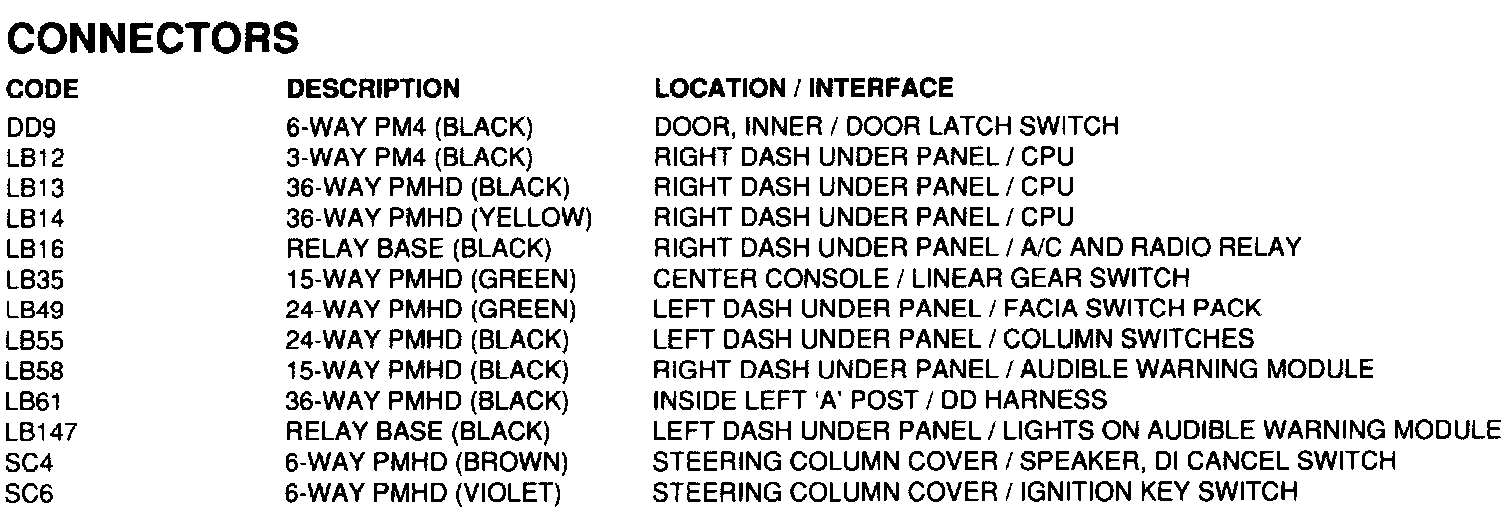

Connectors





Grounds

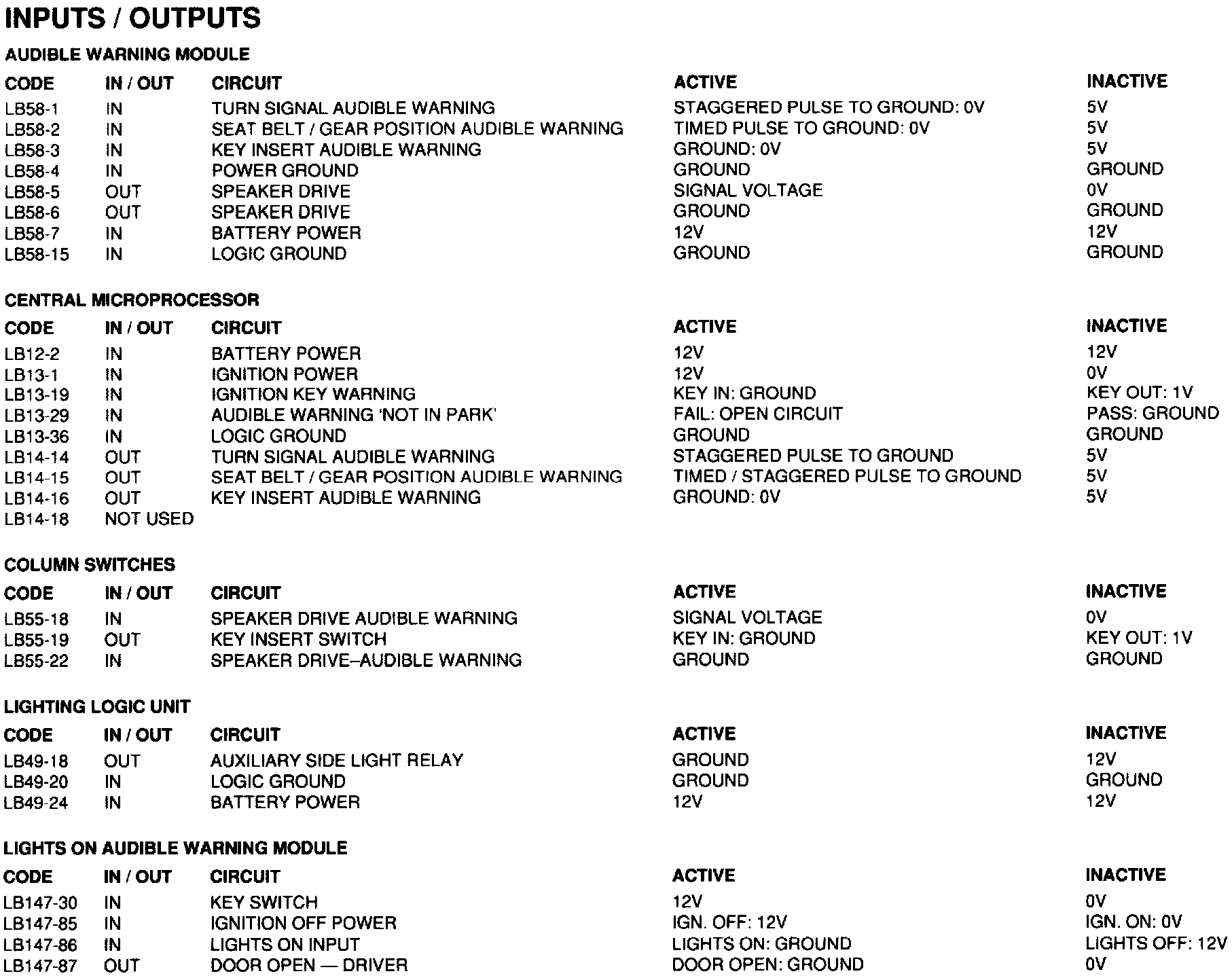

Inputs/Outputs


For the diagrams that continue from this diagram, refer to "Diagrams : Electrical : Diagrams By Fig Number"
