Removal (XKE Rear)

Remove rear seat cushion and both caliper inspection covers for access to rear calipers. Remove clips, retaining pins, and withdraw pads.

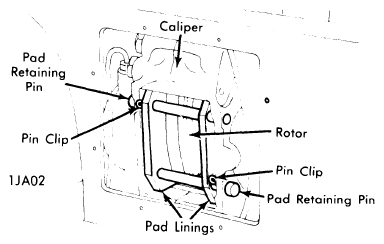

Fig 1: XKE Rear Caliper Lining Replacement (Rear Seat Removed)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
