Home >> Isuzu >> 2012 >> NPR V8-6.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Air Conditioning Switch >> Testing and Inspection

Air Conditioning Switch: Testing and Inspection

Air Conditioning Switch

Inspection

Air Conditioning Switch

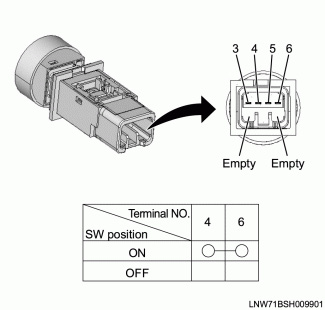

1. Check the conduction between the terminals of the air conditioning switch while operating the switch.
