Removal

Air Conditioning Switch

Removal

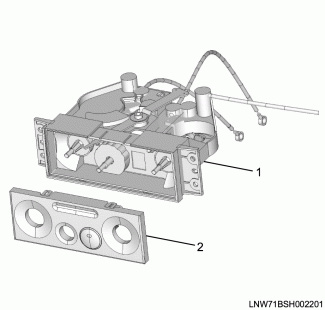

1. Remove the control panel bezel (2) from the control lever ASM (1).
- Refer to Heating and Ventilation for Control Lever ASM.






Legend
(1) Control Lever ASM
(2) Control Panel Bezel

2. Remove the air conditioner switch.
- Press the air conditioner switch on the reverse side of the control panel bezel and pull it forward.
