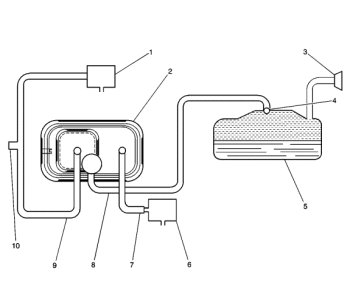

Evaporative Emissions (EVAP) Hose Routing Diagram

Evaporative Emissions (EVAP) Hose Routing Diagram

EVAP System Overview






Legend
(1) EVAP Canister Purge Solenoid Valve
(2) EVAP Canister
(3) Fuel Fill Neck/Fill Cap
(4) Rollover Valve/Fuel Tank Pressure (FTP) Sensor
(5) Fuel Tank
(6) EVAP Canister Vent Solenoid Valve
(7) Vent Hose/Pipe
(8) EVAP Vapor Pipe
(9) EVAP Purge Pipe
(10) EVAP Service Port
