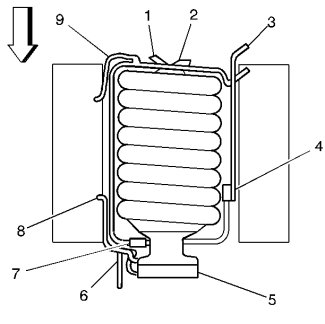

Emission Hose Routing Diagram

Emission Hose Routing Diagram






Legend
(1) To HVAC
(2) To Power Brake Vacuum Assist
(3) To EVAP Canister
(4) EVAP Canister Purge Solenoid Valve
(5) Throttle Body
(6) Engine Coolant Hoses
(7) Positive Crankcase Ventilation (PCV) Valve
(8) Crankcase Ventilation Hose
(9) Crankcase Ventilation Hose
