Z Height Adjustment

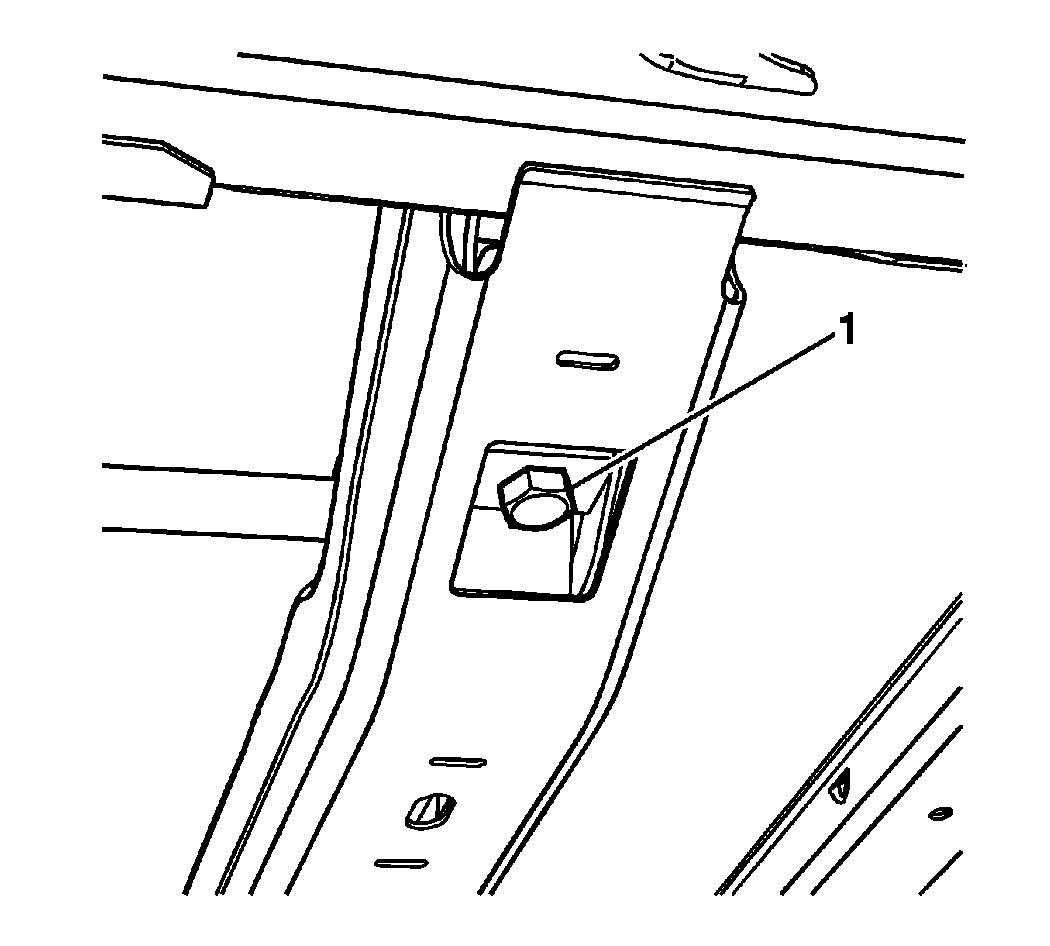

    Fig 1: Locating Torsion Bar Adjuster Bolt
    GM1902707Courtesy of GENERAL MOTORS CORP.
  1. For vehicles equipped with a torsion bar suspension turn the torsion bar adjuster bolt (1) clockwise to raise the and counterclockwise to lower the height adjustment.
  2. For vehicles without torsion bars, replace damaged or worn components as necessary.
