Installation Procedure

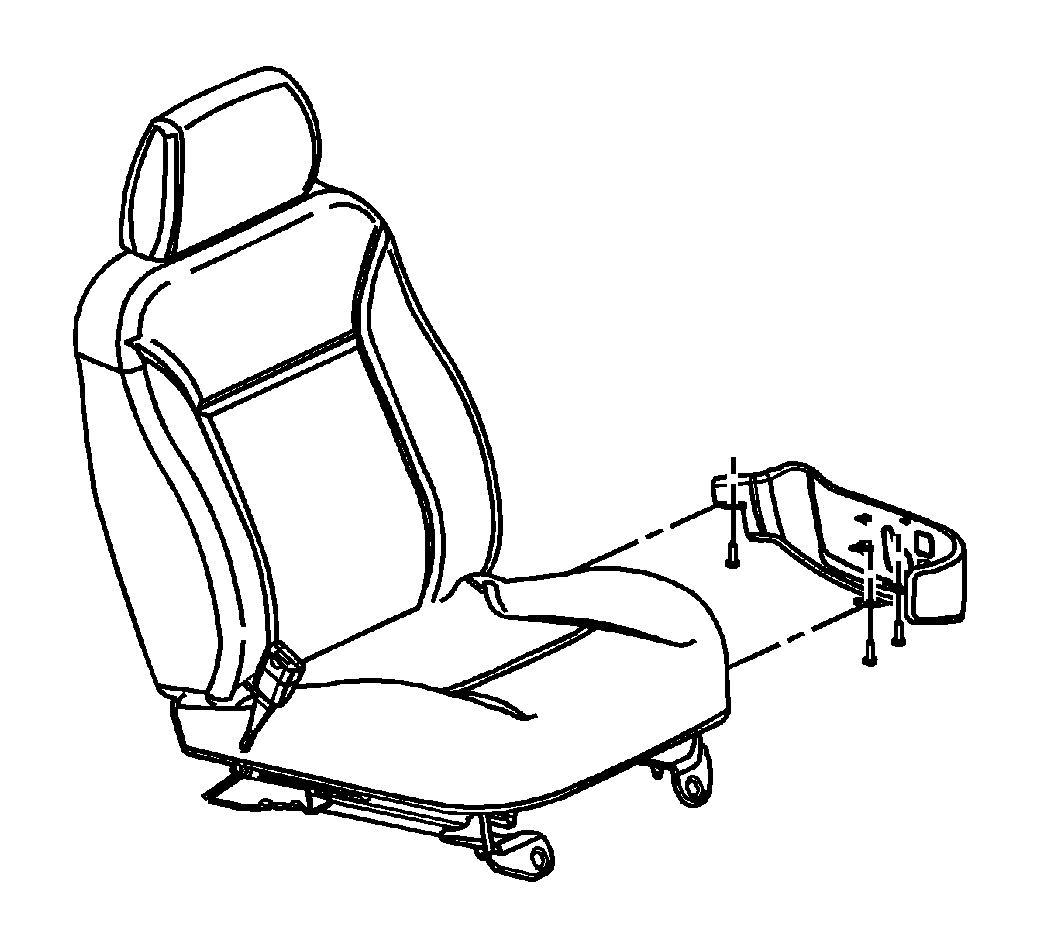

    Fig 1: View Of Front Seat Cushion Outer Trim Panel
    GM1362725Courtesy of GENERAL MOTORS CORP.
  1. Align the front seat cushion outer trim panel to the seat assembly.
    2. NOTE: Refer to Fastener Notice .
  2. Install the 3 seat cushion outer trim panel mounting screws.

    Tighten:  Tighten the front seat cushion outer trim panel screws to 1.5 N.m (13 lb in).

  3. Install the seat back recliner handle. Refer to Driver Seat and Passenger Seat Recliner Handle Replacement .
