Installation Procedure

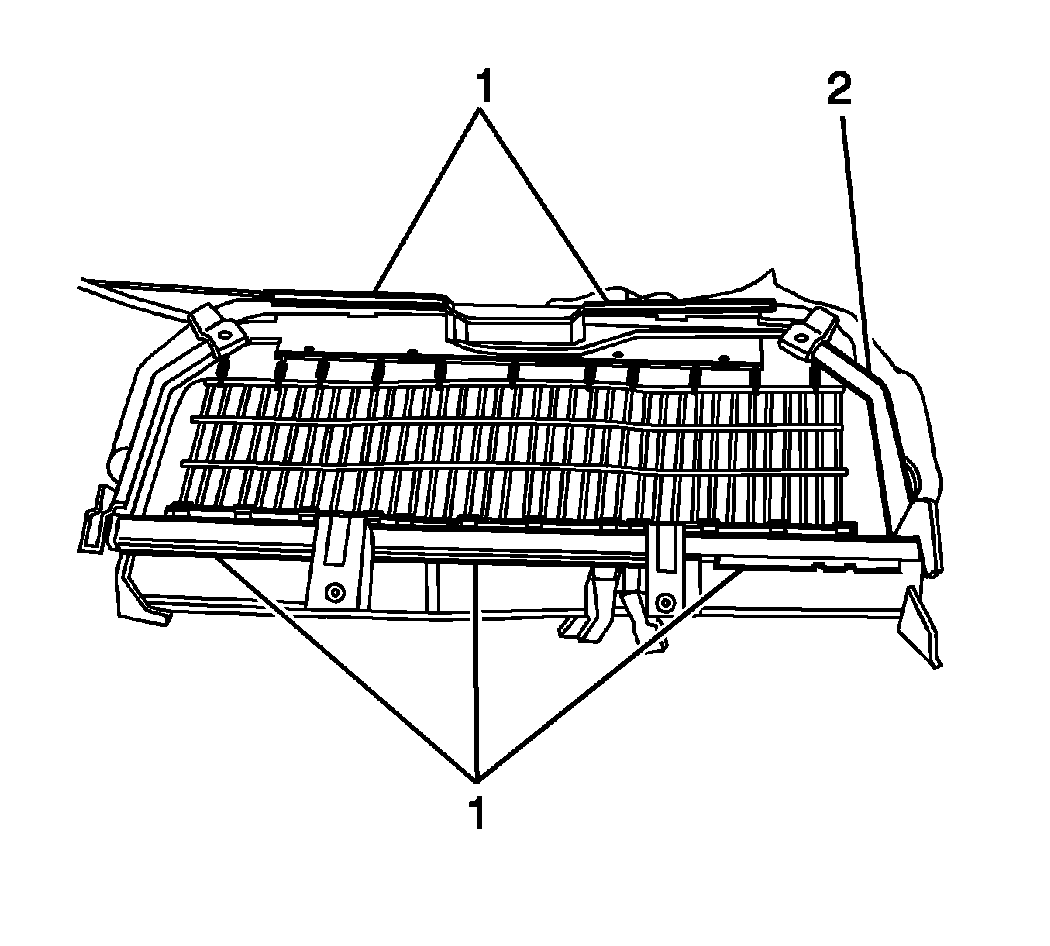

    Fig 1: Rear Seat Cushion - Crew Cab
    GM1333682Courtesy of GENERAL MOTORS CORP.
  1. Install the seat cushion cover and pad over the seat frame (2).
  2. Install the J-strips (1) on the cover.

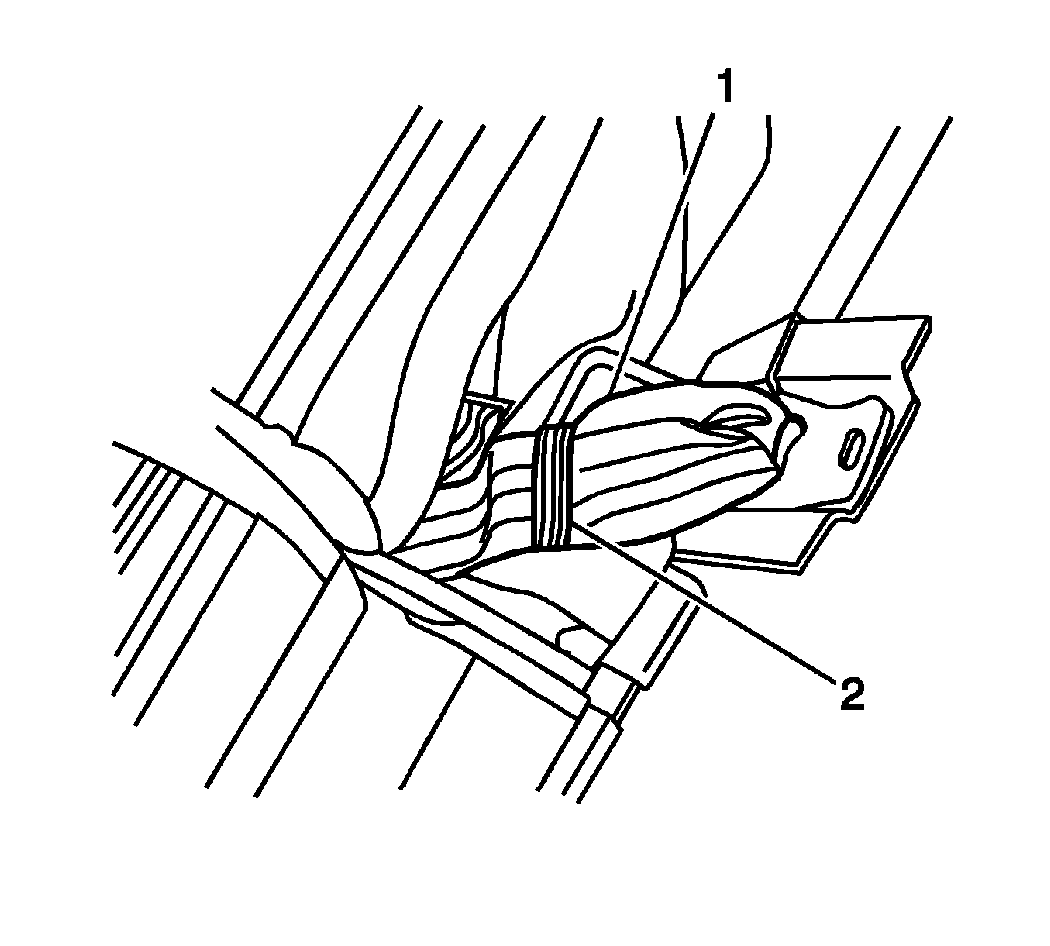

    3. Fig 2: View Of Seat Belt Buckles & Seat Cover Loops
    GM1333692Courtesy of GENERAL MOTORS CORP.
  3. Install the seat belt buckles (1) through the seat cover loops (2).
  4. Install the rear bench seat in the vehicle. Refer to Rear Bench Seat Replacement .
