Installation Procedure

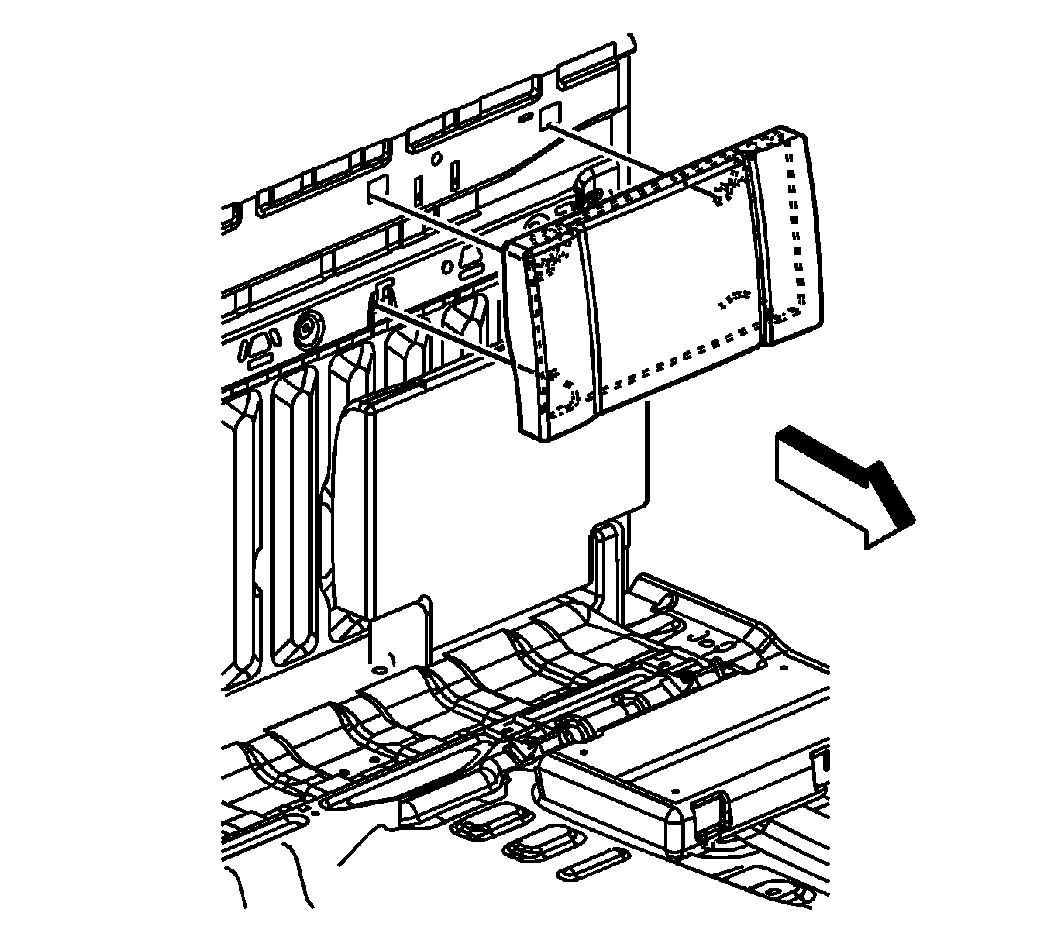

    Fig 1: View Of Seat Back - Extended Cab
    GM1276839Courtesy of GENERAL MOTORS CORP.
  1. Position the rear seat back by aligning the hooks with the slots in the vehicle.
  2. Install the rear seat back by pushing the seat back downward.
