Installation Procedure

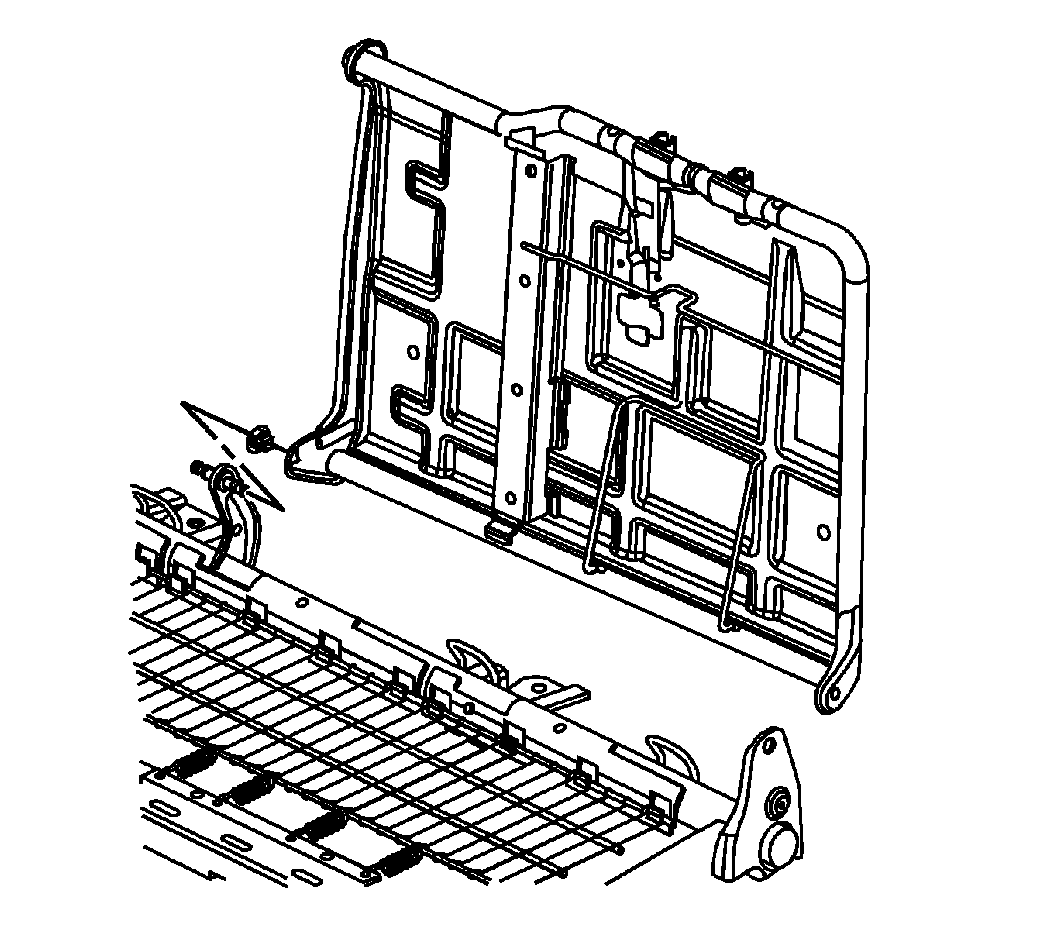

    Fig 1: View Of Seat Back Frame - Crew Cab
    GM1361350Courtesy of GENERAL MOTORS CORP.
  1. Install the seat back frame by pushing the frame onto the seat cushion frame stud.

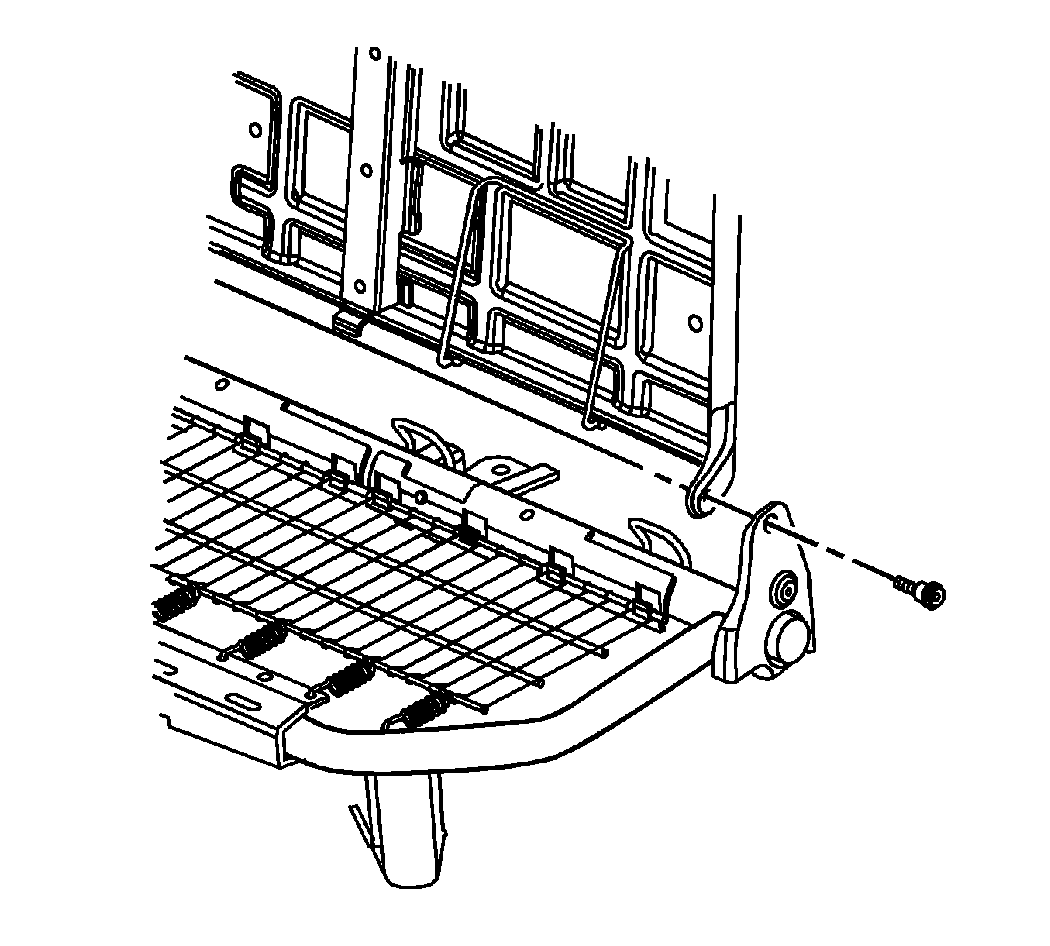

    2. Fig 2: View Of Seat Back Frame To Seat Cushion Frame Bolt
    GM1361333Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  2. Install the bolt securing the seat back frame to the seat cushion frame.

    Tighten:  Tighten the seat back frame mounting bolt to 50 N.m (37 lb ft).

    3. Fig 3: View Of Seat Cushion Frame Side Trim Covers
    GM1361325Courtesy of GENERAL MOTORS CORP.
  3. Install the screw securing the side trim covers to the seat cushion frame.
