Installation Procedure

    Fig 1: View Of Latch Assembly
    GM1333780Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Remove the seat back latch (1) to the seat back frame with the 4 screws (2).

    Tighten:  Tighten the rear bench seat back latch mounting screws to 12 N.m (9 lb ft).

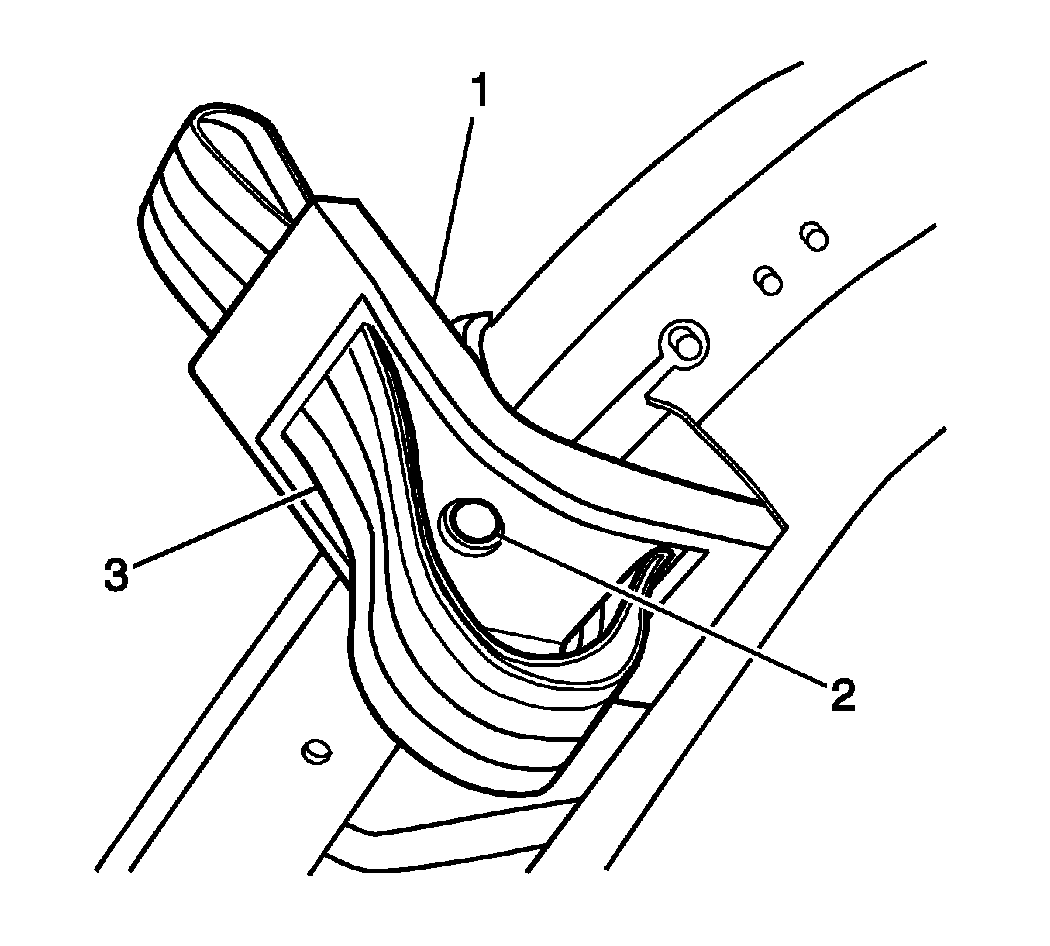

    2. Fig 2: View Of Latch Release Strap Bracket
    GM1333703Courtesy of GENERAL MOTORS CORP.
  2. Install the 2 screws (2) securing the latch release strap bracket (1) to the seat back frame.

    Tighten:  Tighten the rear bench seat back latch release strap bracket screws to 1.5 N.m (13 lb in).

  3. Install the screw securing the side trim covers to the seat cushion frame.

    Tighten:  Tighten the rear bench seat side trim cover screw to 1.5 N.m (13 lb in).

  4. Install the seat back cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (Crew Cab) .
  5. Install the rear bench seat cushion in the vehicle. Refer to Rear Bench Seat Replacement .
