Installation Procedure

  1. Position the rear bench seat on the floor studs.

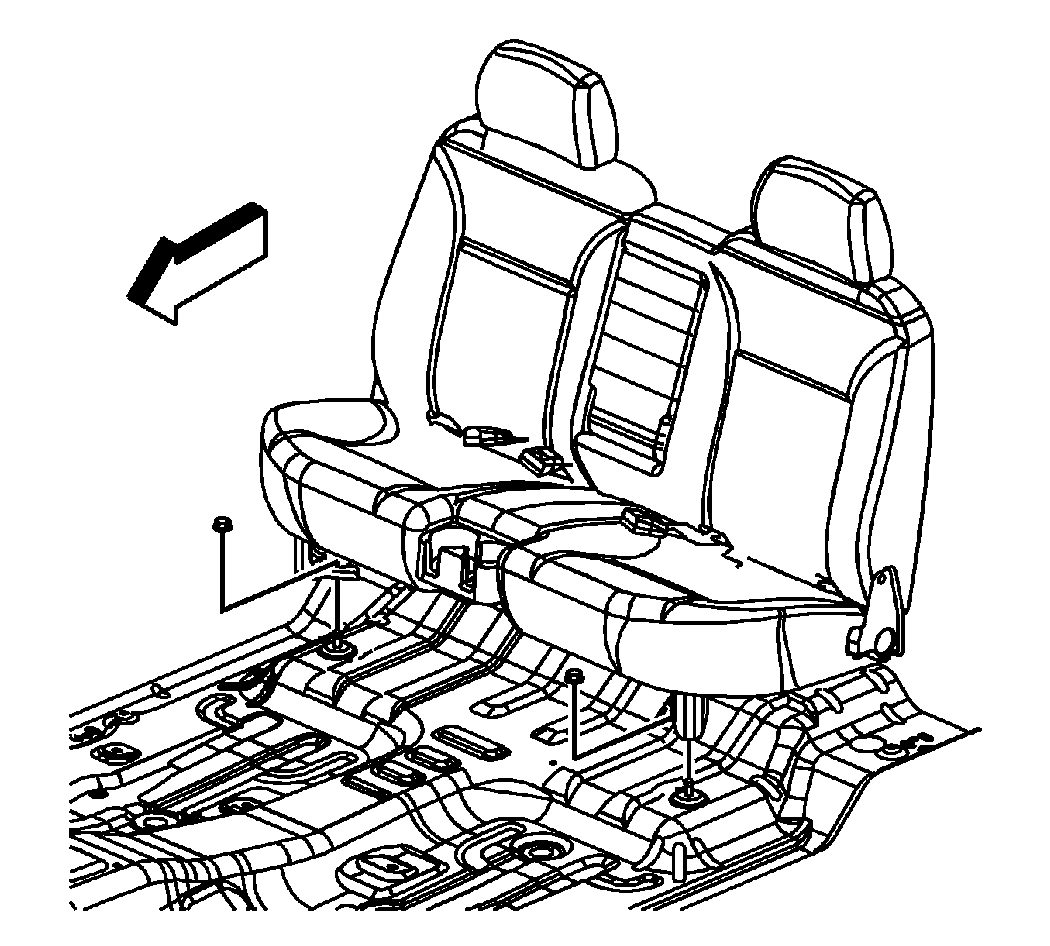

    2. Fig 1: View Of Rear Bench Seat
    GM1276836Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  2. Install the 2 bolts securing the rear of the bench seat to the floor studs.

    Tighten:  Tighten the rear bench seat mounting nuts to 52.5 N.m (39 lb ft).

  3. Install the 2 nuts securing the front legs of the rear bench seat to the floor studs.

    Tighten:  Tighten the rear bench seat mounting nuts to 52.5 N.m (39 lb ft).
