Installation Procedure

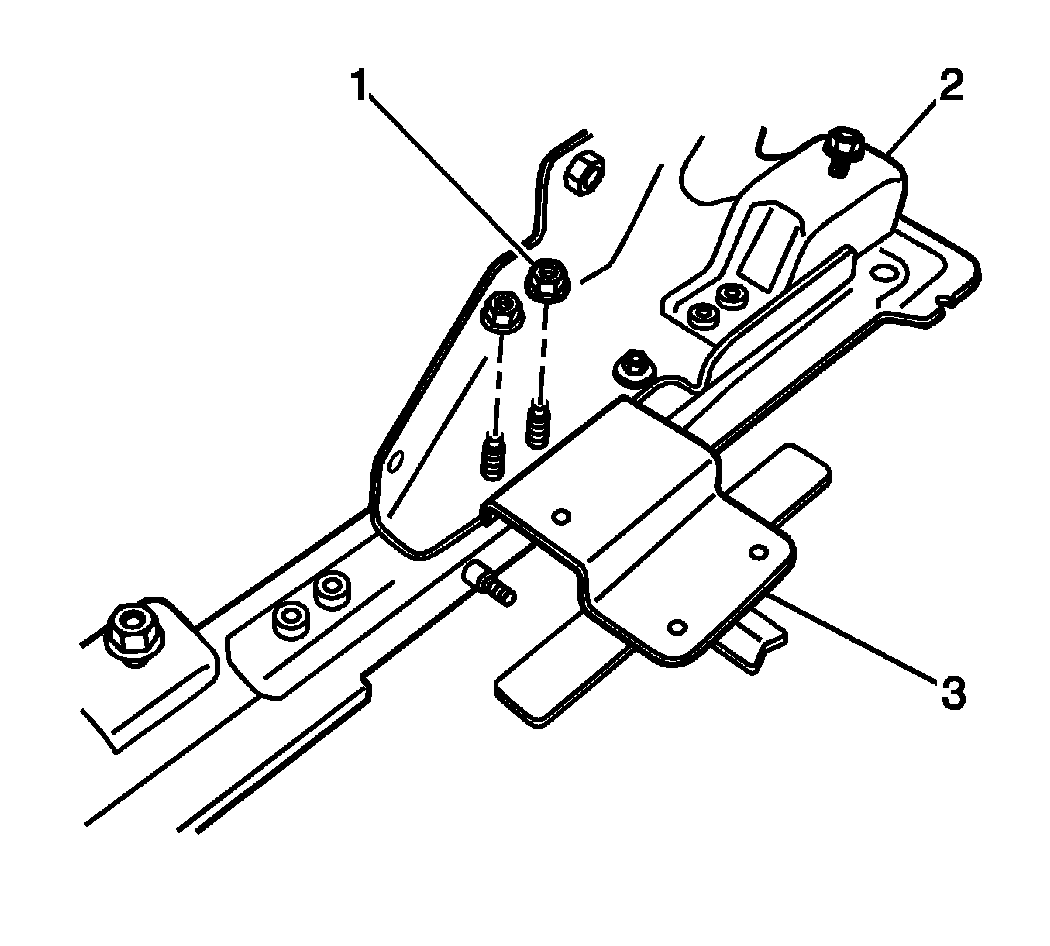

    Fig 1: View Of Seat Position Switch
    GM1333097Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the seat position switch (3) to the seat adjuster (2) with 2 nuts (1).

    Tighten:  Tighten the seat position switch nuts to 24 N.m (18 lb ft).

    2. Fig 2: View Of Wire Harness & Seat Cushion Frame Nuts
    GM1333096Courtesy of GENERAL MOTORS CORP.
  2. Install the seat adjusters to the seat cushion frame with 4 nuts (1).

    Tighten:  Tighten the seat cushion frame mounting nuts to 24 N.m (18 lb ft).

  3. Install the assist spring.
    4. Fig 3: View Of Seat Belt Buckle Assembly
    GM1333095Courtesy of GENERAL MOTORS CORP.
  4. Install the seat cushion foam pad and cover to the frame.
  5. Install the seat belt buckle assembly (1) through the seat cushion pad.
  6. Install the seat belt buckle assembly (1) to the seat adjuster with the bolt (2).

    Tighten:  Tighten the seat belt buckle bolt to 55 N.m (41 lb ft).

    7. Fig 4: View Of Seat Buckle Electrical Connector & Wiring Harness
    GM1333091Courtesy of GENERAL MOTORS CORP.
  7. Connect the seat belt buckle electrical connector (1).
  8. Connect the wiring harness (2) to the seat position switch.
  9. Position the seat back assembly on the seat cushion assembly.
    10. Fig 5: View Of Seat Recliner Bolts
    GM1333093Courtesy of GENERAL MOTORS CORP.
  10. Install the 2 bolts (1) securing the seat recliner to the seat adjuster.
    11. Fig 6: View Of Lumbar Adjustment Mechanism & Retaining Screws
    GM1333092Courtesy of GENERAL MOTORS CORP.
  11. Install the lumbar adjustment mechanism (1) to the seat adjuster with the 2 screws (2).
  12. Install the lumbar cable to the lumbar adjustment mechanism.
  13. Install the lumbar knob by pushing the knob straight onto the shaft, if equipped.
  14. Install the recliner handle. Refer to Driver Seat and Passenger Seat Recliner Handle Replacement .
    15. Fig 7: View Of J-Strips
    GM1333089Courtesy of GENERAL MOTORS CORP.
  15. Install the front, rear, and side J-strips (1, 2) to the underside of the seat.
  16. Install the seat in the vehicle. Refer to Front Seat Replacement - Bucket  or Split Bench Seat Replacement .
