Installation Procedure

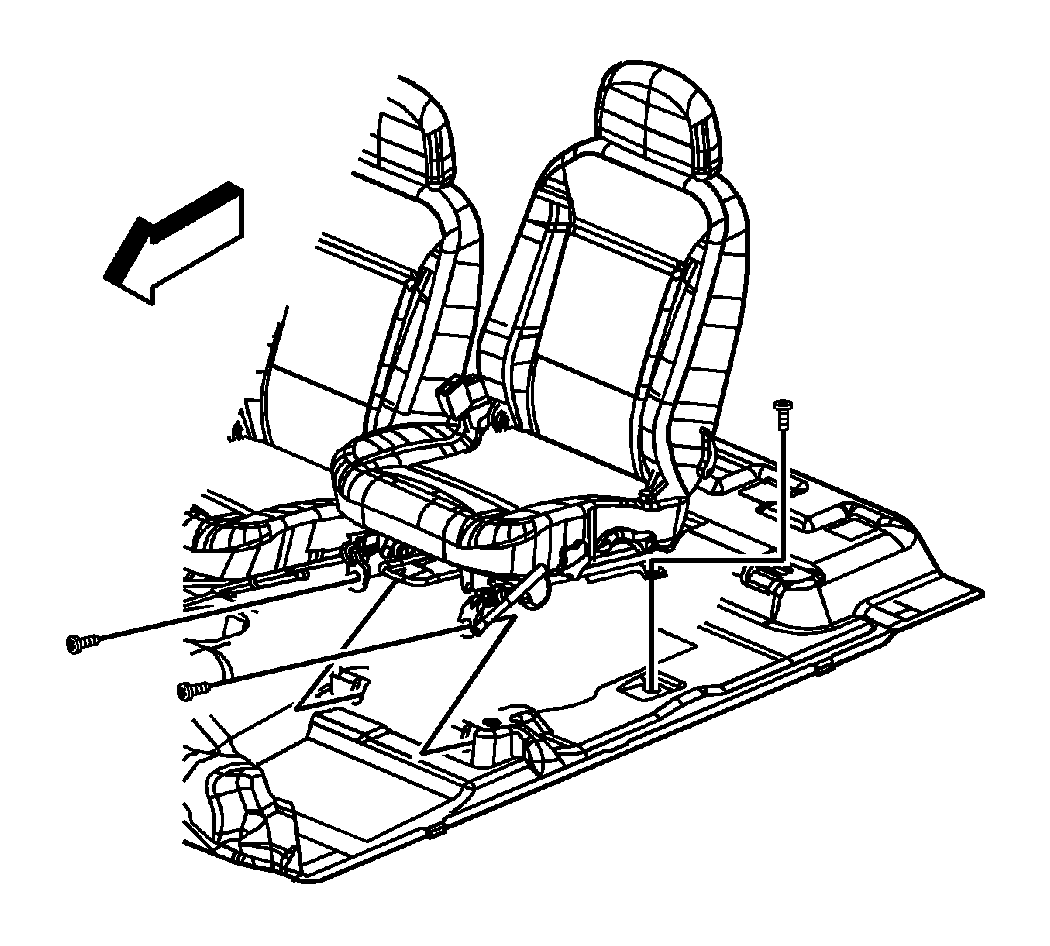

Fig 1: View Of Front Bucket Seat

Courtesy of GENERAL MOTORS CORP.

Position the seat in the vehicle.
Connect the seat electrical connectors to the body harness.
Install the rear bolts.
Ensure that the seat is all the way rearward.

NOTE: Refer to Fastener Notice .

IMPORTANT: After installation of a manual seat, move your body around in the seat to insure that the manual seat adjuster positively locks into position.

Install the front bolts.
Tighten: Tighten the front seat mounting bolts to 52.5 N.m (39 lb ft).
Install the bolt covers.
